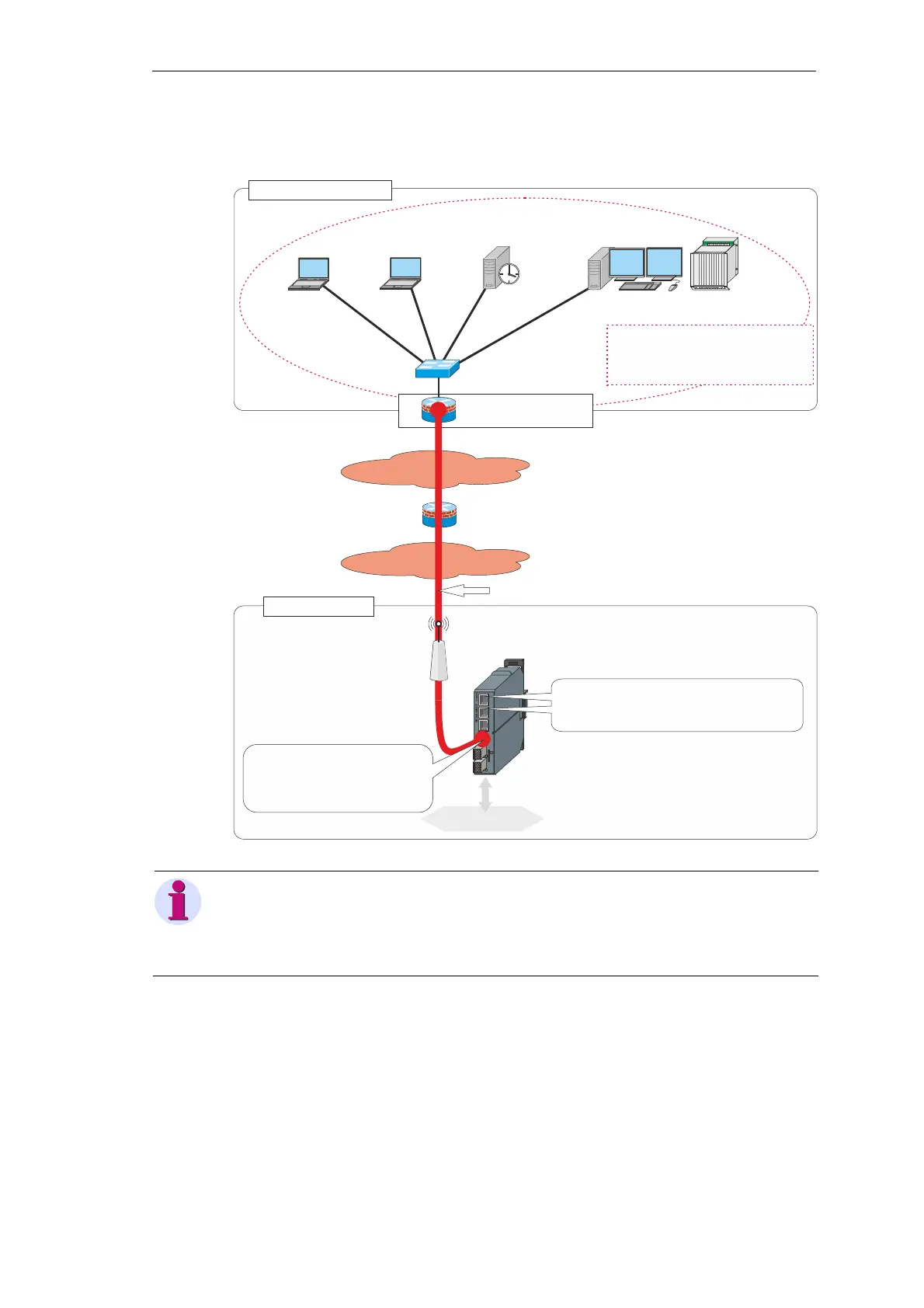

E.7.2 GPRS Communication with 1 IPSec VPN Tunnel
Note
Siemens recommends with this configuration the parameterization of an IP address for the local LAN
interfaces X1/X4 as a precaution. Thereby you can prevent a “lockout” due to an erroneous GPRS config-
uration.
When GPRS is activated, the local LAN interfaces X1 and X4 are operated in switch mode.
Office Zone
SICAM TOOLBOX II
UDP
IEC 61850
60870-104
https
NTP Server
SNMP Manager
SICAM WEB
https
Router
Router
IPsec VPN Tunnel
CP-8022
X7
X1/X4
Own IP address GPRS VPN0
Subnet mask GPRS VPN0
172.16.0.3
255.255.255.0
IP security - Remote site 1
IP address 192.168.1.151
IP address 172.17.0.254
Control system or SICAM AK 3
IP address 172.17.0.22
Subnet mask 255.255.248.0
IP security - Local site
Identifier (Local ID) local-id
IP Security - Remote site 1
Identifer (Remote ID)
Subnet IP address
Subnet mask
remote-id1
172.17.0.0
255.255.248.0
GPRS antenna
Process
Public mobile network
Public fixed IP network
Substation Zone
Control Center Zone 1
Own IP address X1/X4
Subnet mask X1/X4
192.168.0.5
255.255.0.0
(The local site IP address is the address
from the GPRS network)
