Engineering via SICAM WEB
314 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
9.1.2.1 Authentication Procedure

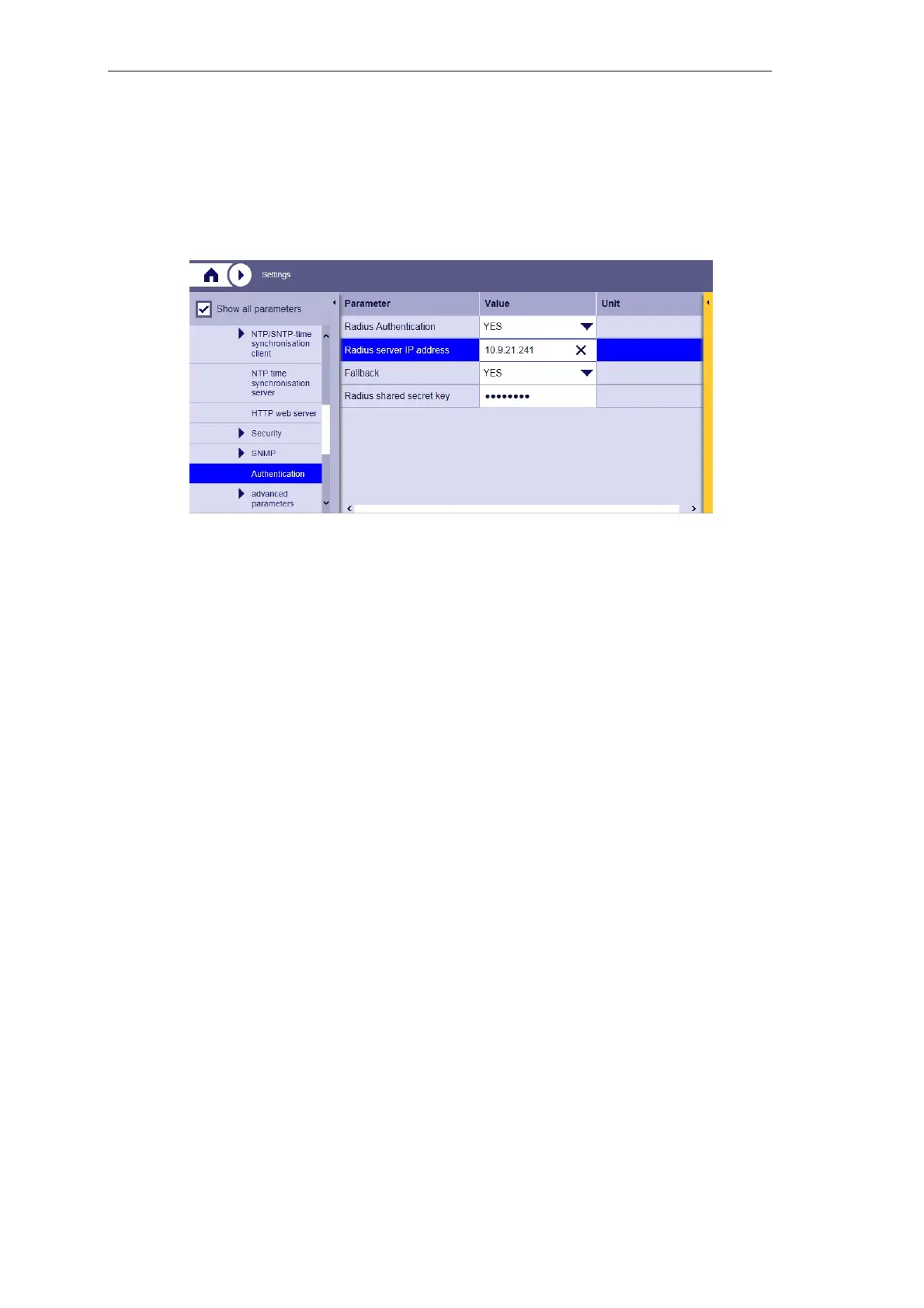

The authentication definition takes place in the directory tree under
SICAM A8000 CP-80xx | Master module | Network settings | Authentication
(the checkbox SHOW ALL PARAMETERS must be activated).
CP-8000/CP-802x provides different authentication mechanisms. Depending on the settings,
SICAM WEB uses the respective role information:
• Authentication via locally stored credentials
─ Usernames, passwords, profiles defined by CP-8000/CP-802x will be used
• Authentication via external service (RADIUS server)
─ Usernames, passwords, profiles defined by the RADIUS server will be used
─ Fallback option, if the RADIUS server is not available
9.1.2.1.1 Authentication via Locally Stored Credentials
This is the default mechanism. After entering the login credentials and login attempt, the target
device compares these credentials with the locally stored credentials:
• If the comparison is successful, the target device returns the specific user role
• If the comparison is not successful, the logon fails
