Siemens LME7 Series Basic Documentation

107/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 16 PME73.820... 29.11.2011

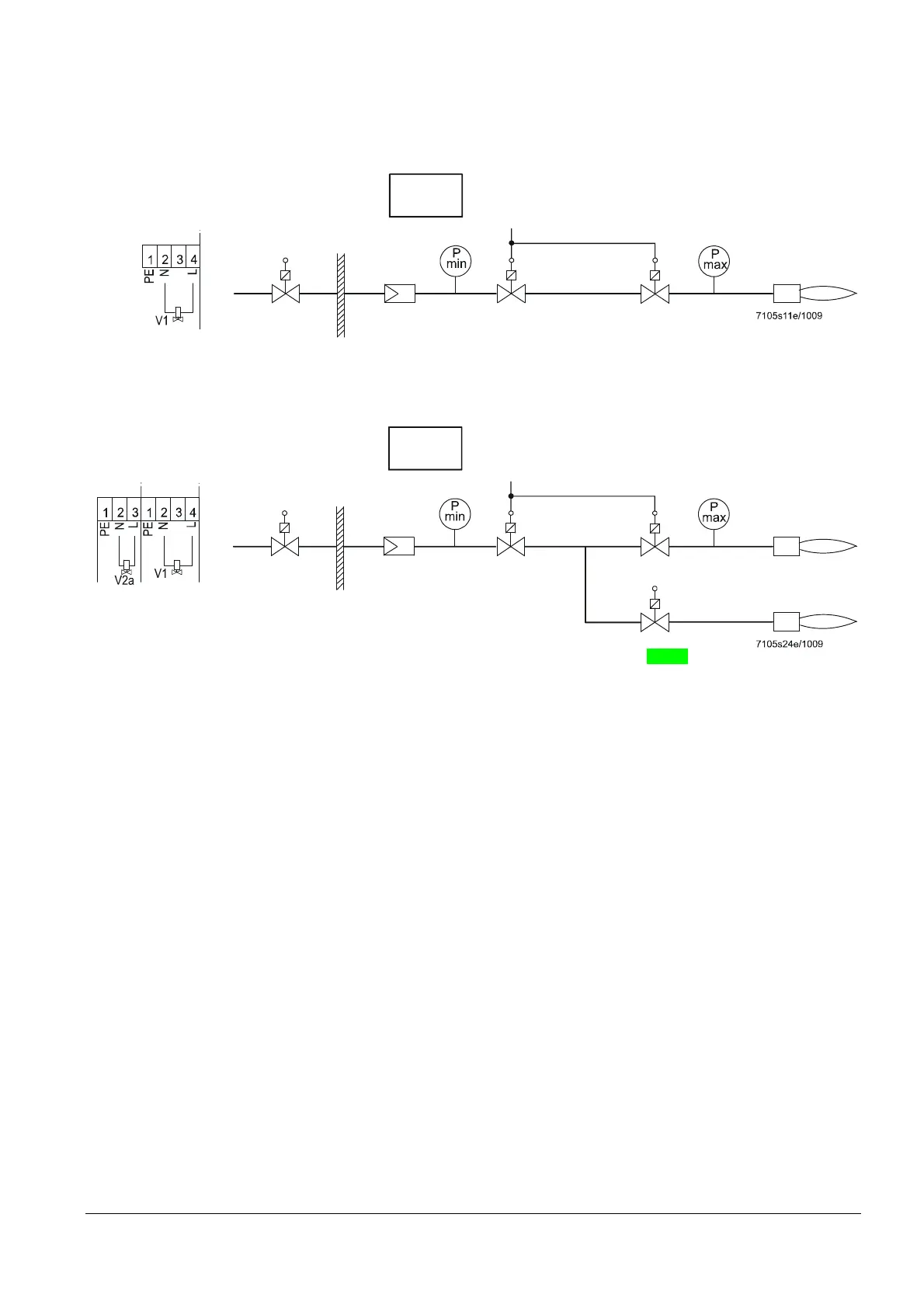

16.2 Connection diagrams for fuel train
applications (examples)
16.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct, 1-stage
X7-04
LME73.000...
Figure 47: Connection diagram fuel train gas direct ignition (G), 1-stage
16.2.2 Gas direct ignition 1 (G), 2-stage
SV
V1
Program
G
Gas direct 1, 2-stage
X7-01 X7-04
LME73.000...
V2a
Figure 48: Connection diagram fuel train gas direct ignition 1 (G), 2-stage
