23.9 Operating variants of the parameters
The parameters stored in the burner control LME7... can be displayed and changed on
the parameter level.
23.9.1 Parameters without index, with direct display
23.9.1.1. Example of parameter 225 (prepurge time) on the parameter level
P
Vh
mi n
s%

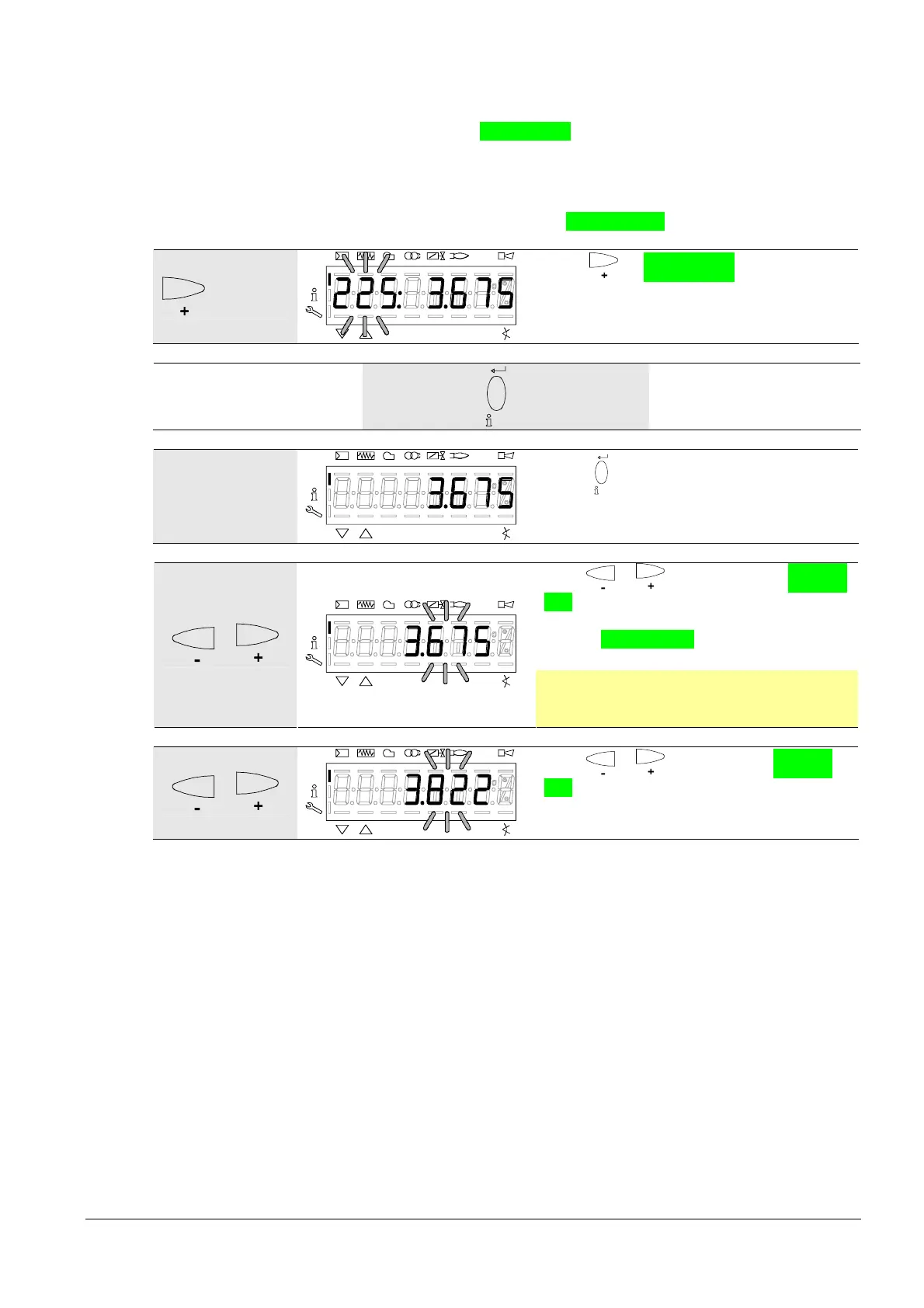

Bild 166/1107
Press for prepurge time.
Display: Parameter 225: blinks, value 3.675
does not.
/
reset
P
Vh
mi n
s%
Bild 167/1107
Press
/
reset
for editing mode.
Display: 3.675
Press or to shift the former prepurge
time to change mode one place to the left.
Display: Prepurge time 3.675 blinks.
or
P
Vh
min
s%
Bild 168/1107
Note:
To detect display errors, the value appears
one place shifted to the left.
or
P
Vh
min
s%
Bild 169/1107
Press or for the required prepurge
time.
Display: Prepurge time 3.822 blinks.
