Siemens LME7 Series Basic Documentation

50/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 10 PME71.401... 29.11.2011

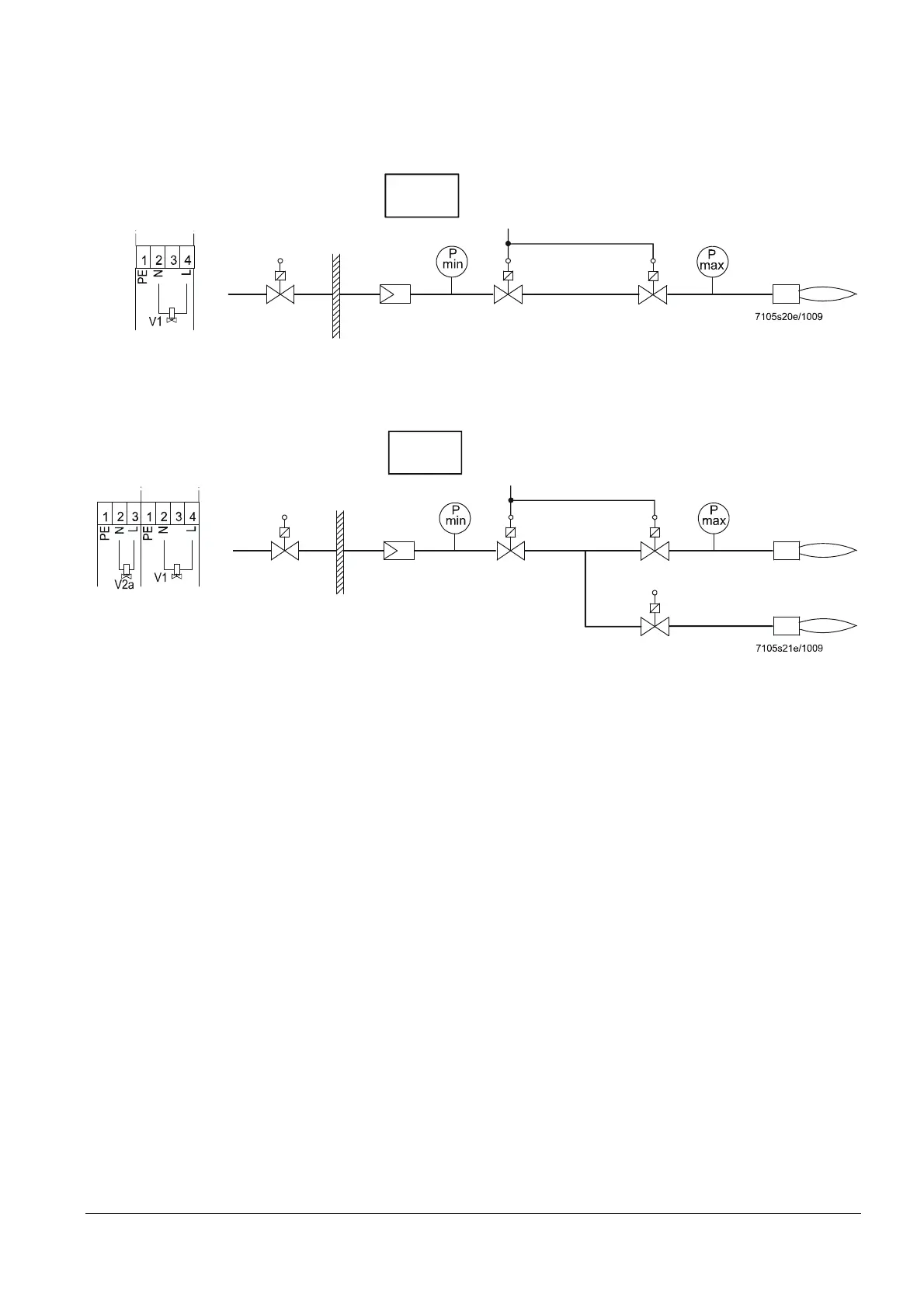

10.2 Connection diagrams for fuel train
applications (examples)
10.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct 1-stage
X7-04
LME71.000...
Figure 14: Connection diagram fuel train gas direct ignition (G), 1-stage
10.2.2 Gas direct ignition (G), 2-stage
SV
V1
Program
G
Gas direct 2-stage
X7-01 X7-04
LME71.000...
V2a
Figure 15: Connection diagram fuel train gas direct ignition (G), 2-stage
