17.1.3 Gas pilot ignition 1 (Gp1/2), 1-stage, with valve proving
SV
V1
Program
Gp1/2
Gas pilot 1, 1-stage
PV
X7-01 X7-04
V2
X7-02
LME73.000...

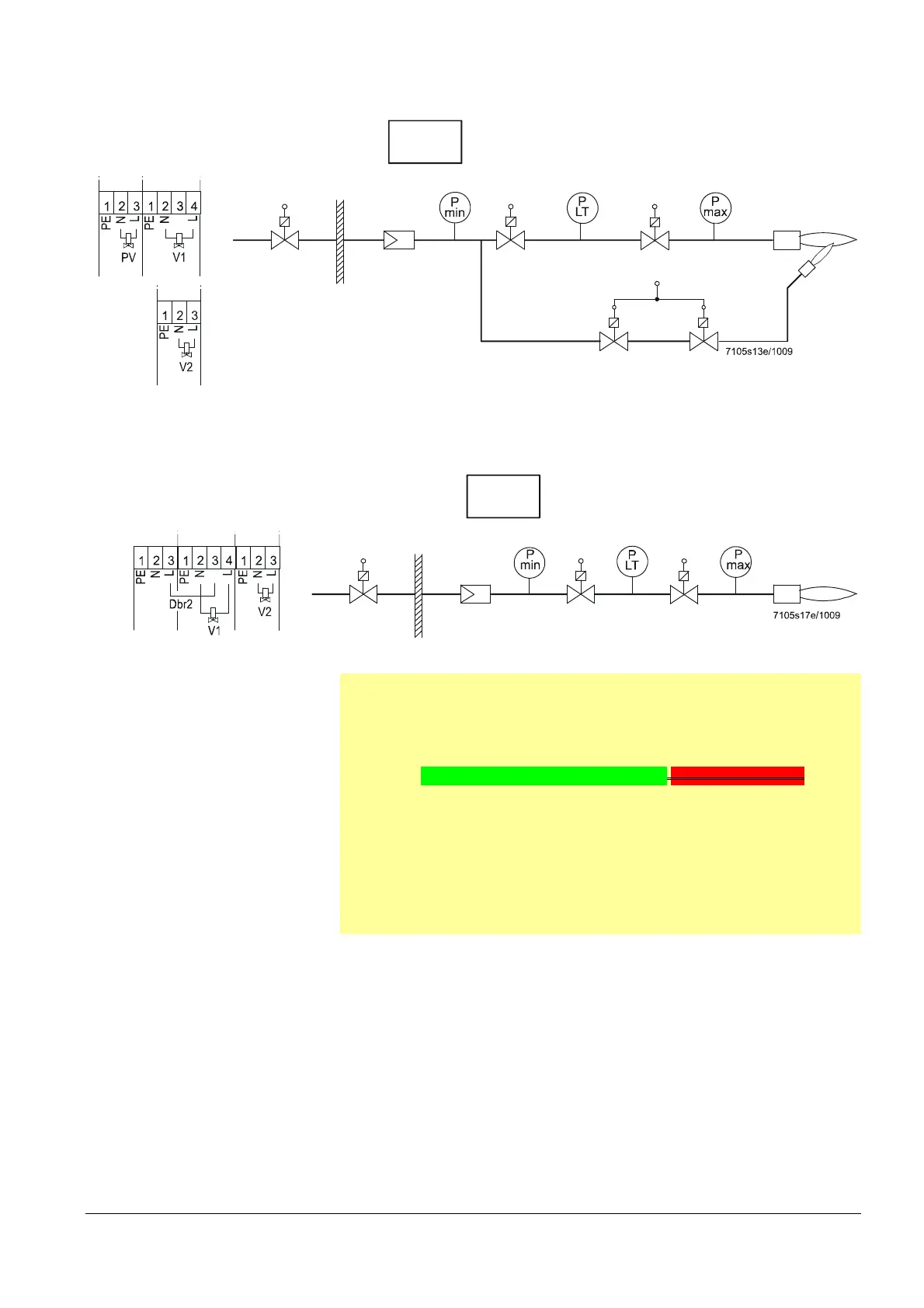

Figure 58: Connection diagram fuel train gas pilot ignition 1 (Gp1/2), 1-stage, with valve proving
17.1.4 Gas direct ignition 1 (Gp1/2), 1-stage, with valve proving
SV
V1
Program
Gp1/2
Gas direct 1, 1-stage
V2
X7-02
LME73.000...
X7-04X7-01
Figure 59: Connection diagram fuel train gas direct ignition 1 (Gp1/2), 1-stage, with valve proving
Note:
When valve proving is activated (e.g. on shutdown), the load on the valve’s
terminals (according to chapter Technical data/Terminal rating Outputs) is
restricted.
Fuel valve 1 X7-04 pin 4/fuel valve 2 X7-02 pin 3/auxiliary output AUX
Rated voltage AC 120 V AC 230 V
50/60 Hz 50/60 Hz
Rated current 1 A 1 A
Power factor cos >0.4 cos >0.4
If the terminal load (according to chapter Technical data/Terminal rating
Outputs) is not reduced (max. rated current 2 A, cos >0.4), the design
lifetime will be reached after about 100,000 burner startup cycles!
