25.4.4 Display of flame current QRB... or QRC...



Note:

This display is only possible in operating mode or standby!

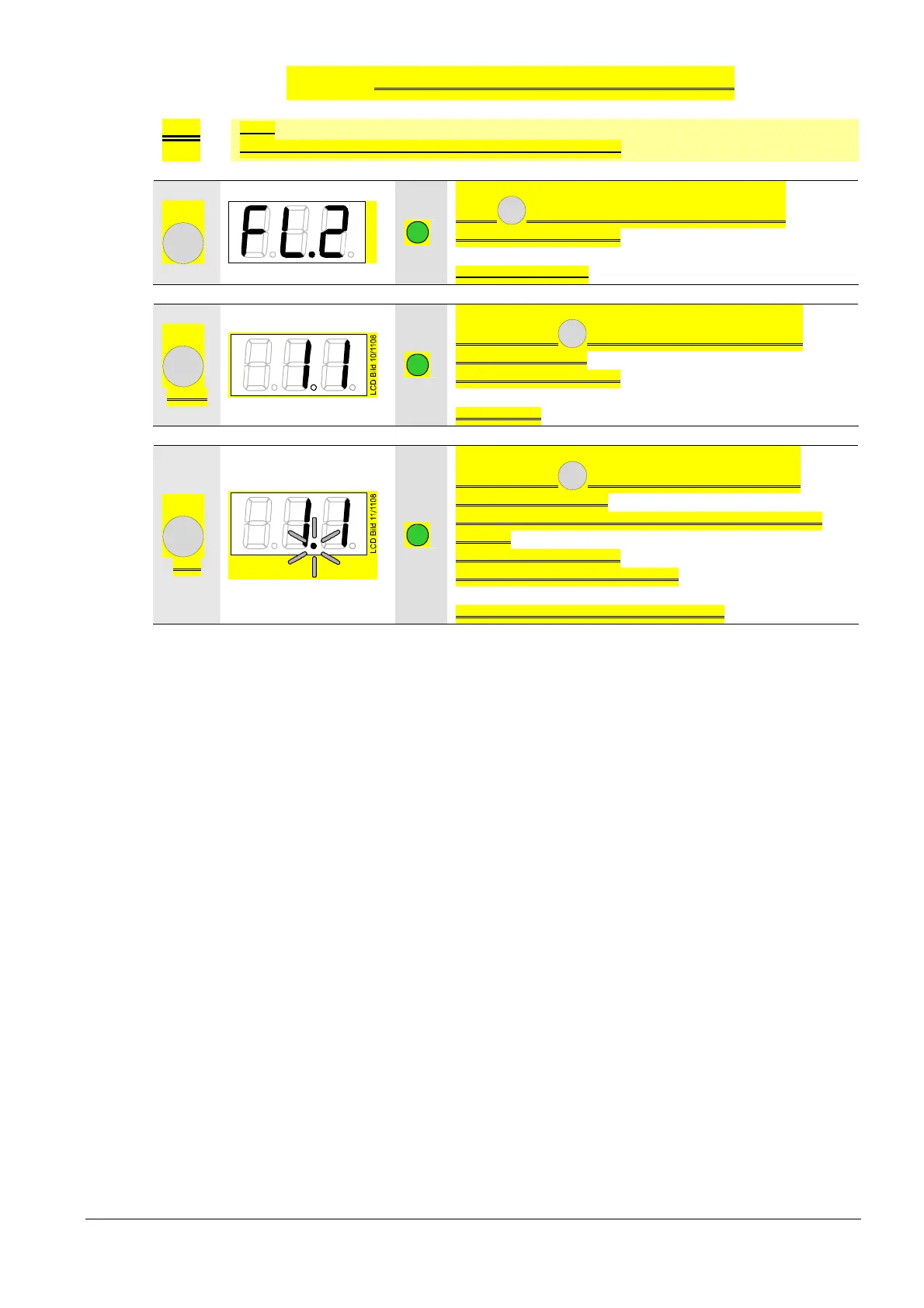

LCD Bild 12/0908

Press

for display of the flame signal amplifier.

Signal lamp blinks green.

Display shows FL.2.

1...3 s

When pressing

(1…3 seconds), the flame signal

current is displayed.

Signal lamp blinks green.

Example: 1.1

>3 s

When pressing

(>3 seconds), the point after the

number begins to blink.

When the button is released, the value is displayed for 2

minutes.

Signal lamp blinks green.

Then, the normal display appears.

Display: Point . blinks, value 11 does not.
