17.2 Connection diagram for LME73.000... with
actuator SQM4... (example 1)

Note:
The connection diagram shown is merely an example which must be verified in the individual case
depending on the application!
PME73.830... 1-stage modulating
With/without pilot ignition
With/without valve proving
X3X2X1 123
V
IV
III
5
M
III
V
I
21341
2
345
6
I
VI
V
IV
III
II
7105d19e/1009
X2-09
SA-Z
SA-KL
SA-NL
SA-R
PE
Input Dbr3 for PV
Output PV
X66
ASZ12.33
ab
c
Ter min a l X 66
on LME73.000...
Typ e
SQNx1...
SQMx1...
SQNx0...
SQMx0...
2 (Signal)
3 (GND)
a
b
c
a
b
c
a
b
c
a
b
c
Terminal potenti ometer
(1 kOhm conductive
plastic 90°) ASZxx30
Rotation
direction
Clockwise Counter- clockwise
X
X
X
X
---
---
---
---

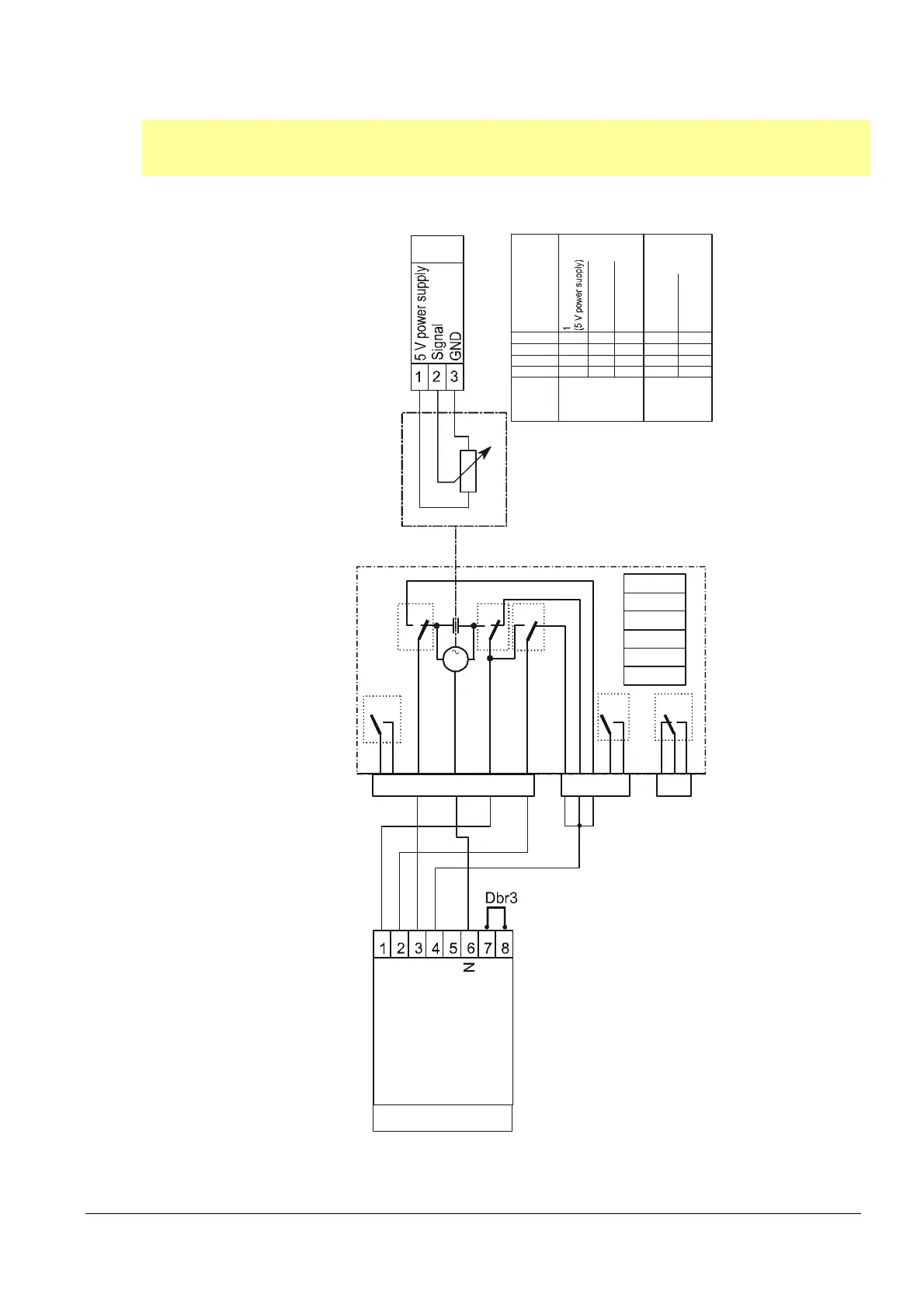

Figure 61: Connection diagram for LME73.000... with actuator SQM4... (example 1)
