23 Operation via AZL2…
23.1 Description of the unit/display and buttons
Function and operation of versions AZL21… and AZL23… are identical.
Bild 1/0809
P
V
hmin
s%
VSD
ESC
/
reset
AF

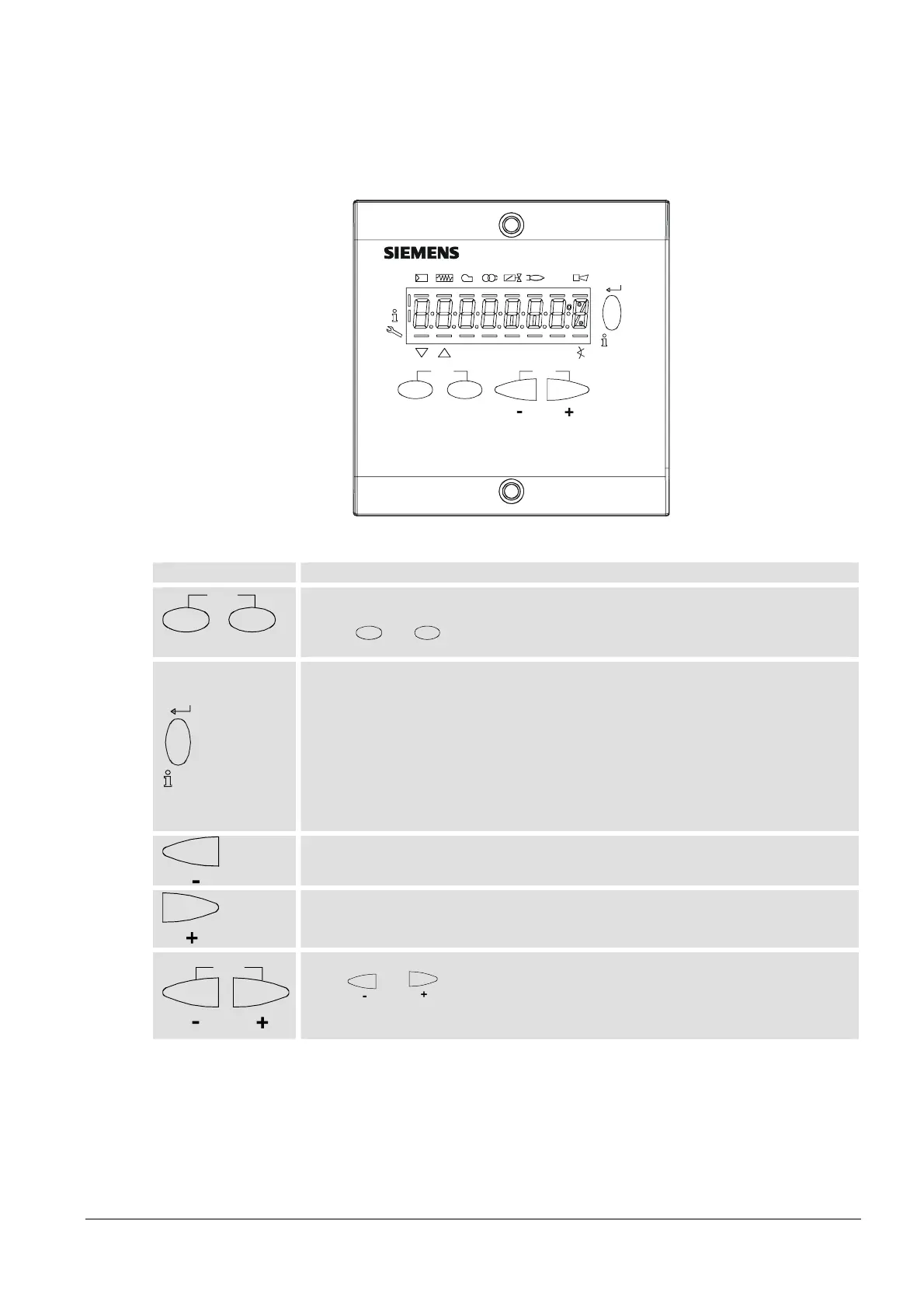

Figure 86: Description of the unit/display and buttons
Button Function
V
SD
AF
Buttons A and F: Parameterized function
- For switching to parameter setting mode P
(press
F
and
A
simultaneously)
/reset
Info and Enter button
- For navigation in info and service mode
* For selection (symbol blinking) (press button for <1 second)
* For changing to a lower menu level (press button for 1…3 seconds)
* For changing to a higher menu level (press button for 3…8 seconds)
* For changing to the normal display (press button for >8 seconds)
- Enter in parameter setting mode
- Reset in the event of fault
- One menu level down
- button
- For decreasing the value
+ button
- One menu level down
- For increasing the value
ES
C
+ and - button: Escape function
(press and simultaneously)
- No adoption of value
- One menu level up
