23.2 Meaning of symbols on the display
P
Vh
mi n
s%
Parameter setting mode
Info mode
Service mode
Actuator closing
Actuator opening
Fan motor controlled
Oil preheater on
Heat request from controllers
Ignition controlled
Valve controlled
Flame present
Fault status message
Unit of current display
Bild 2e/0807

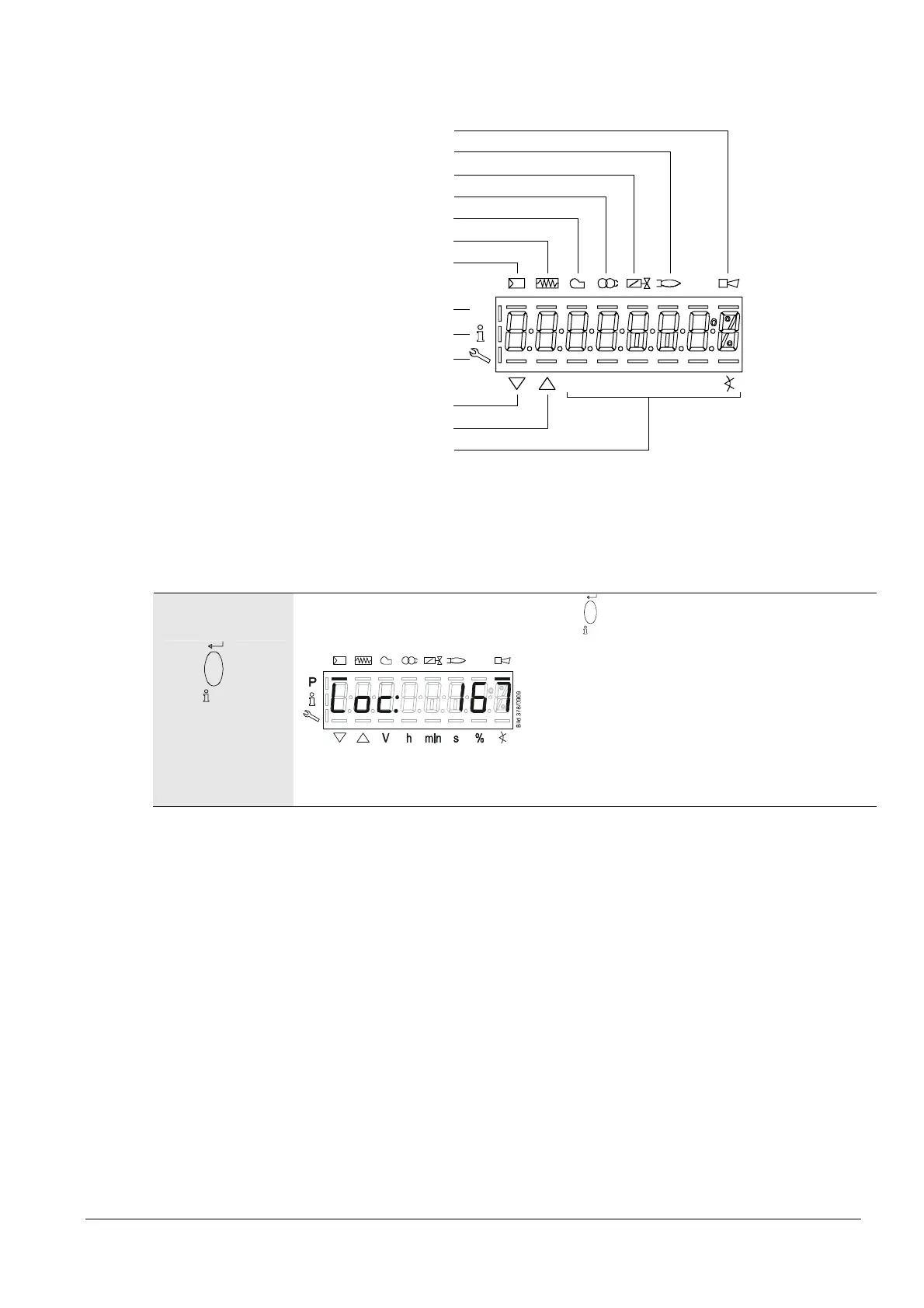

Figure 87: Meaning of display
23.3 Special functions
23.3.1 Manual lockout
/
reset
plus any other
button
Press
/
reset
together with any other button.
The basic unit switches instantly to the lockout
position, no matter what the operating position.
Display shows the fault status message.
(see chapter Error code list…)
Display: Loc: 167
