Siemens LME7 Series Basic Documentation

57/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 11 PME71.402... 29.11.2011

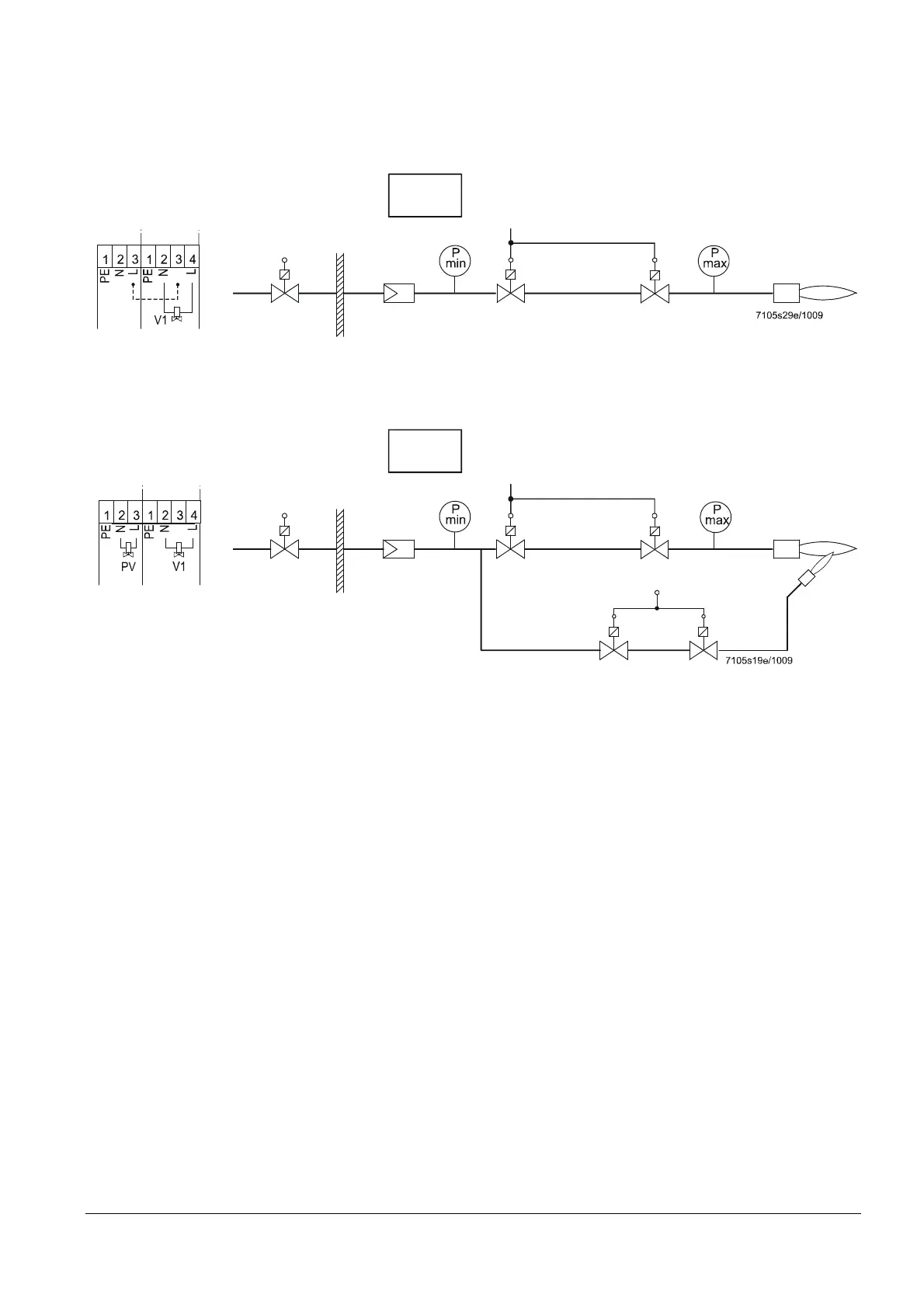

11.2 Connection diagrams for fuel train
applications (examples)
11.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct 1-stage
X7-01 X7-04
Dbr2
LME71.000...
Figure 18: Connection diagram fuel train gas direct ignition (G), 1-stage
11.2.2 Gas pilot ignition 1 (Gp1/1), 1-stage
SV
V1
Program
Gp1/1
Gas pilot 1-stage
PV
X7-01 X7-04
LME71.000...
Figure 19: Connection diagram fuel train gas pilot ignition 1 (Gp1/1), 1-stage
