79/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 13 PME72.521... 29.11.2011

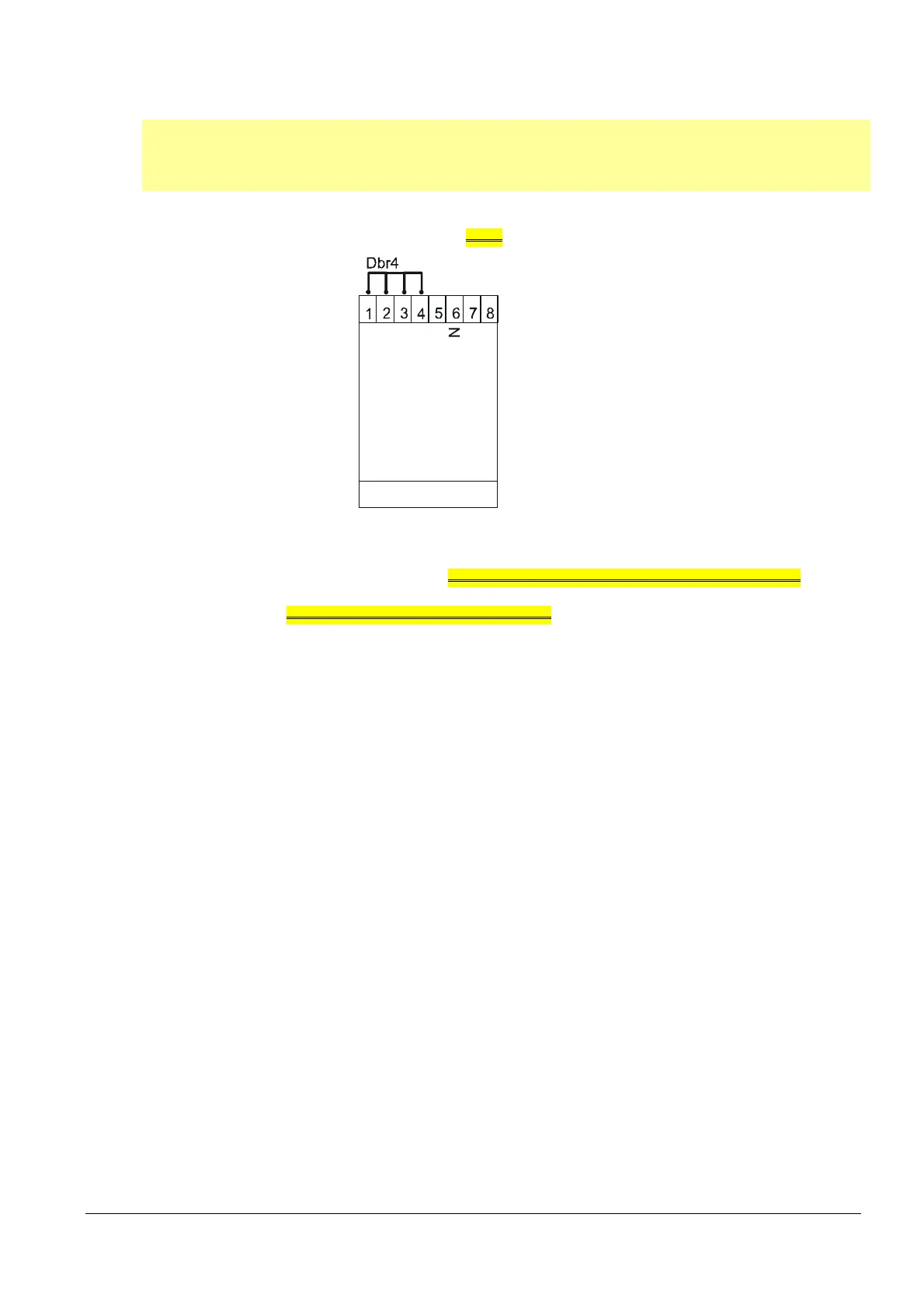

13.4 Connection diagram for LME72.000... without
actuator SQM4...
Note:
The connection diagram shown is merely an example which must be verified in the individual case
depending on the application!
PME72.521... 1-stage
Without actuator
With/without valve proving
X2-09
SA-Z
SA-KL
SA-NL
SA-R
PE
Input to cam V2
Output to cam V2
7105d35e/1009
Figure 30: Connection diagram for LME73.000... without actuator SQM4...
When using the LME72.000... without actuator according to application Gas direct
ignition (G), 1-stage or gas direct ignition 1 (G), 1-stage, with valve proving, wire
link Dbr4 must be fitted to the actuator’s X2-09 as shown above
Parameter P515.01 must be set to 0
