25.4.2 Display of flame current ION or QRA...

Note:
This display is only possible in operating mode or standby!
+

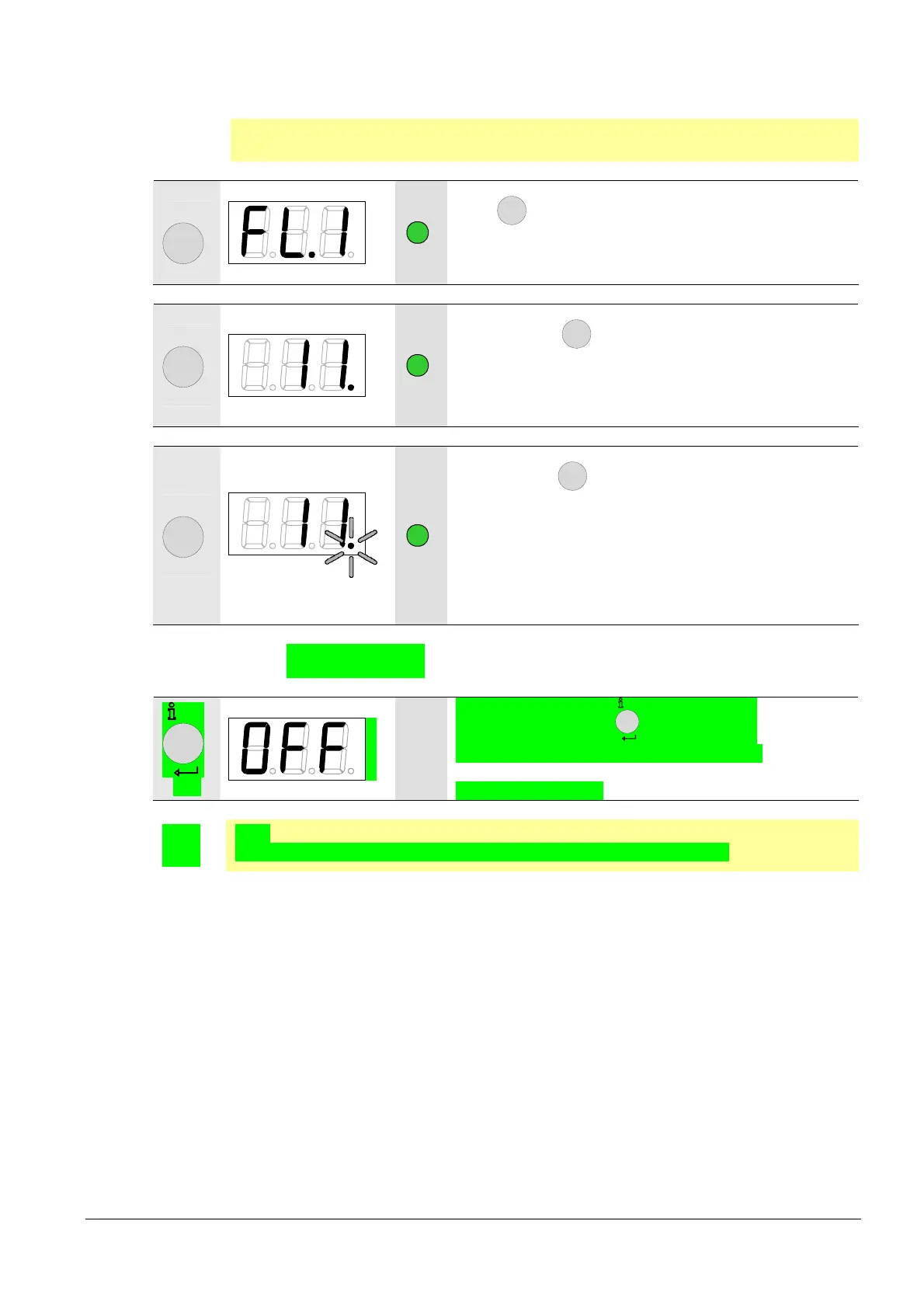

LCD Bild 09/0908
Press
+
for display of the flame signal amplifier.
Signal lamp blinks green.
Display shows FL.1.
+
1...3 s
LCD Bild 10/0908
When pressing
+
(1…3 seconds), the flame signal
current is displayed.
Signal lamp blinks green.
Example: 11.
+
>3 s
LCD Bild 11/0908
When pressing
+
(>3 seconds), the point after the
number begins to blink.
When the button is released, the value is displayed for 2
minutes.
Signal lamp blinks green.
Then, the normal display appears.
Display: Point . blinks, value 11 does not.
25.4.3 Reset
nfo
>1 s
LCD Bild 02/0908
For reset the unit, press
nfo
for 1...3 seconds.
When the button is released, OFF is displayed.
The basic unit is reset.

Note:
For meaning of the error and diagnostic codes, see chapter Error code list...
