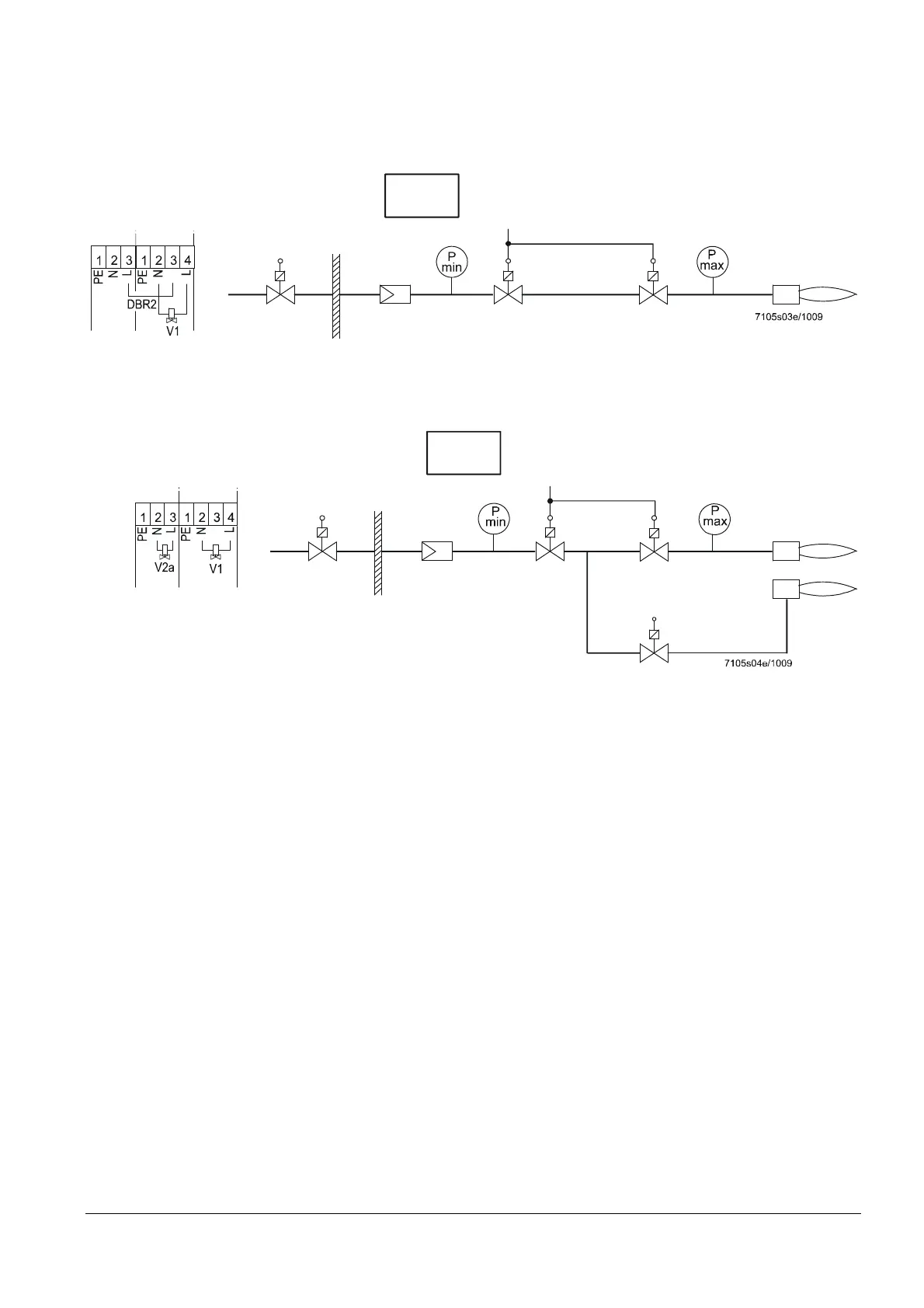

13.2 Connection diagrams for fuel train
applications (examples)
13.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct 1-stage
X7-04
LME73.000...
X7-01
Figure 27: Connection diagram fuel train gas direct ignition (G), 1-stage
13.2.2 Gas direct ignition 1 (Gp1/1), 2-stage
SV
V1
Program
Gp1/1
Gas direct 1, 2-stage
V2a
X7-01 X7-04
LME72.000...
Figure 28: Connection diagram fuel train gas direct ignition 1 (Gp1/1), 2-stage
