Siemens LME7 Series Basic Documentation

155/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 19 PME73.840... 29.11.2011
19.4 Connection diagram for LME73.000... without
actuator SQM4...

Note:
The connection diagram shown is merely an example which must be verified in the individual case
depending on the application!
PME73.840... 1-stage
With/without pilot ignition
With/without valve proving
Without actuator
X2-09
SA-Z
SA-KL
SA-NL
SA-R
PE
Input Dbr3 for PV
Output PV
7105d38e/1009

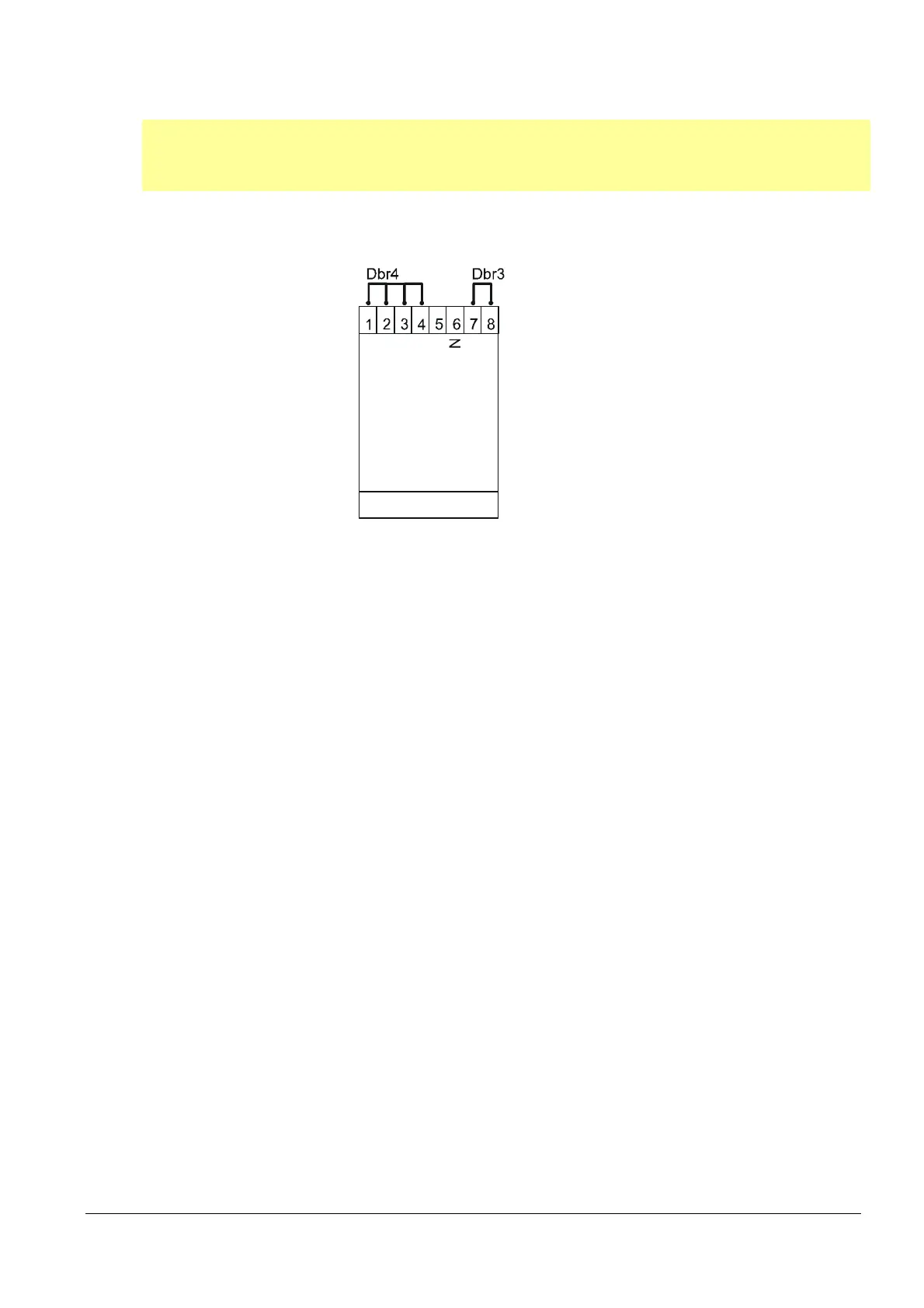

Figure 82: Connection diagram for LME73.000... without actuator SQM4...
 When using the LME73.000... without actuator according to application Gas direct
ignition (G), 1-stage, gas direct ignition 1 (G), 1-stage, with valve proving, wire link
Dbr4 must be fitted to the actuator’s X2-09 as shown above
 Parameter P515.01 must be set to 0
