Siemens LME7 Series Basic Documentation

150/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 19 PME73.840... 29.11.2011

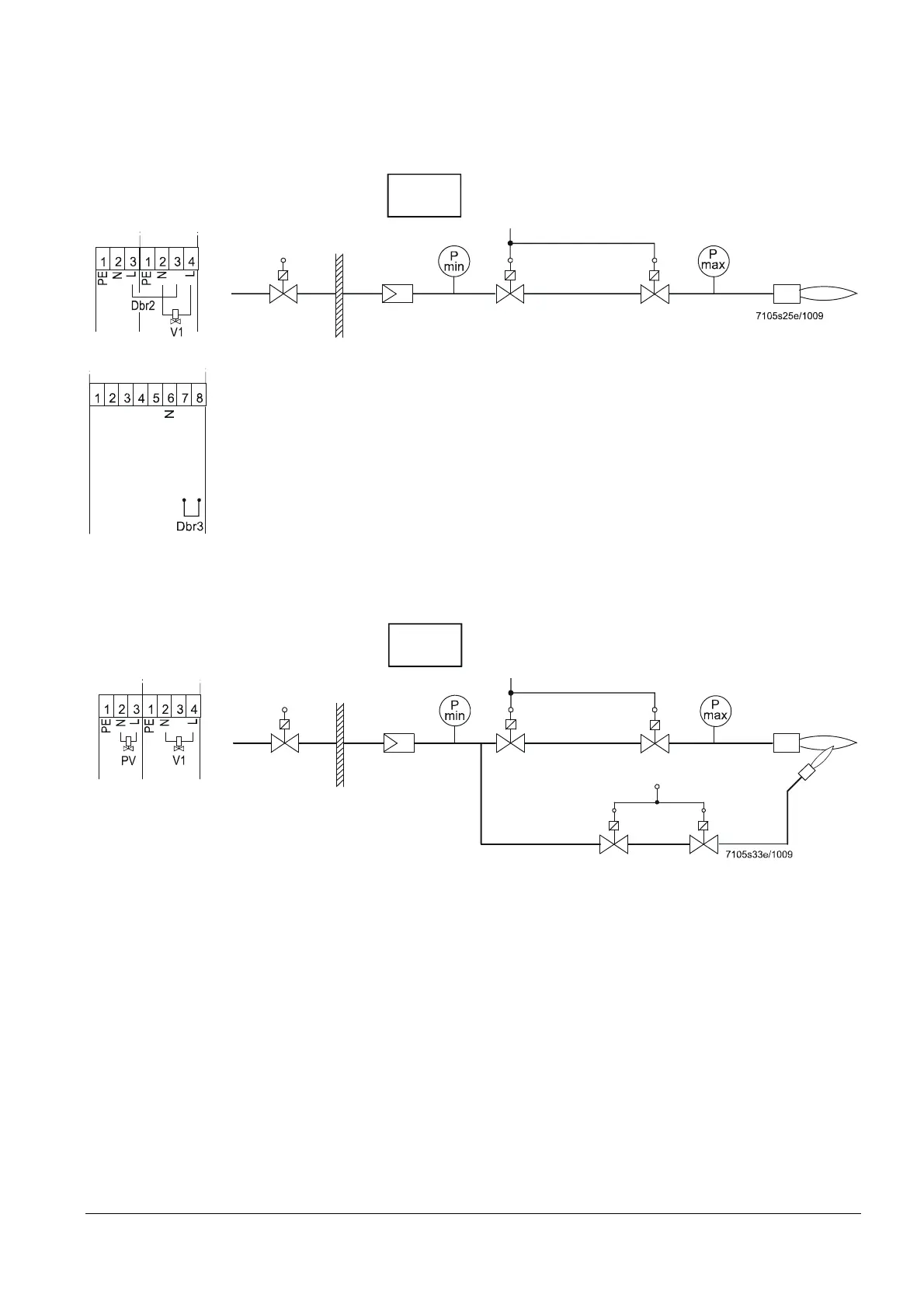

19.2 Connection diagrams for fuel train
applications (examples)
19.2.1 Gas direct ignition (G), 1-stage
SV
V1
Program
G
Gas direct 1-stage
LME73.000...
X7-04
X7-01
X2-09
SA-Z
SA-KL
SA-NL
SA-R
PE
Input PV
Output PV
LME73.000...
Figure 76: Connection diagram fuel train gas direct ignition (G), 1-stage
19.2.2 Gas pilot ignition 1 (Gp1/1), 1-stage
SV
V1
Program
Gp1/1
Gas pilot 1, 1-stage
PV
X7-01 X7-04
LME73.000...
Figure 77: Connection diagram fuel train gas pilot ignition 1 (Gp1/1), 1-stage
