37/245

Building Technologies Division Basic Documentation LME7... CC1P7105en

Infrastructure & Cities Sector 5 Dimensions 29.11.2011

5 Dimensions

Dimensions in mm

nfo

7105m02/0510

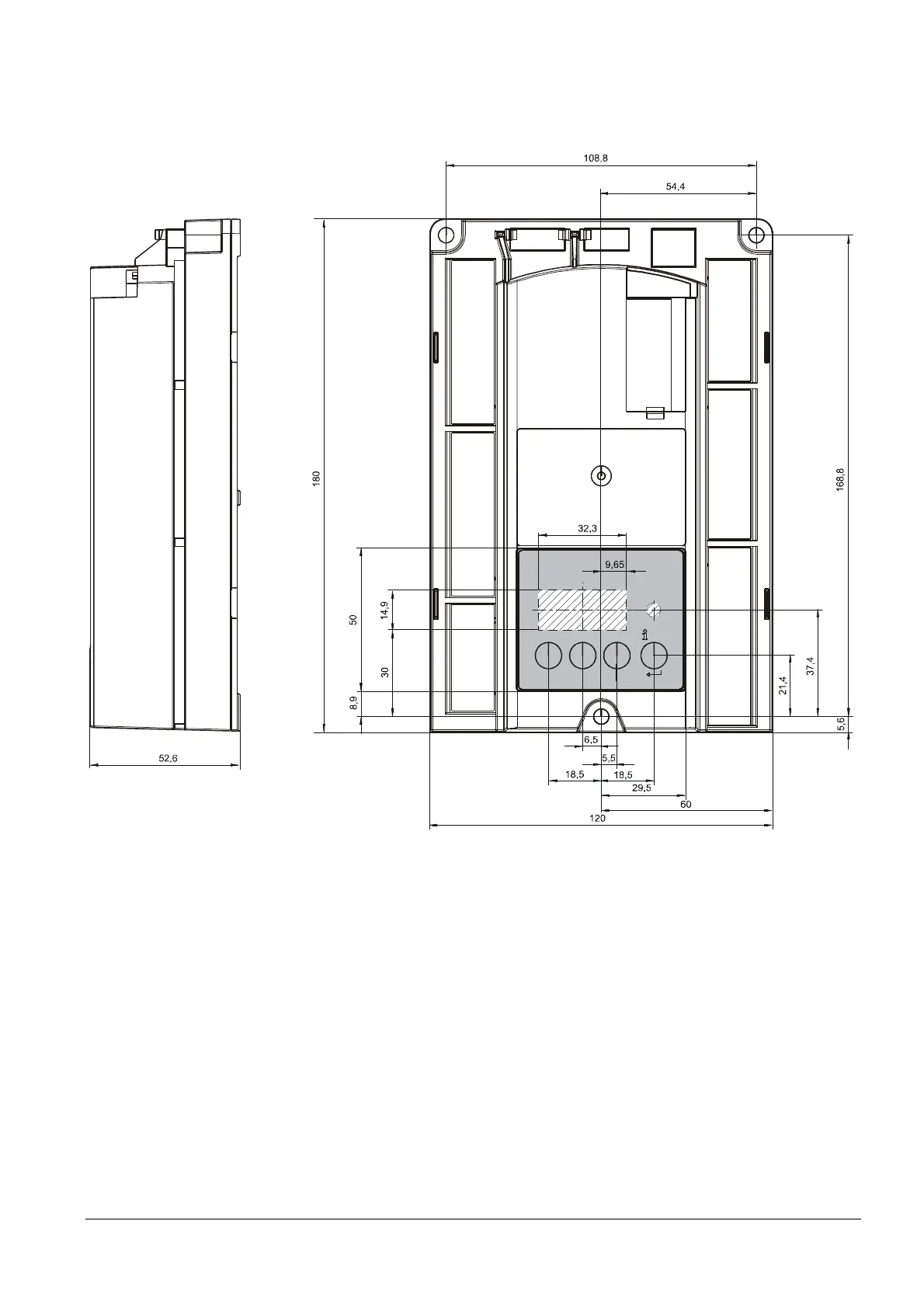

Figure 6: Dimensions of LME7...

LME7...
