Siemens LME7 Series - Connection Diagram for LME73.000

112/245
Building Technologies Division Basic Documentation LME7... CC1P7105en
Infrastructure & Cities Sector 16 PME73.820... 29.11.2011
16.4 Connection diagram for LME73.000... without
actuator SQM4...

Note:
The connection diagram shown is merely an example which must be verified in the individual case
depending on the application!
PME73.820... 1-stage
Without actuator
With/without valve proving
X2-09
SA-Z
SA-KL
SA-NL
SA-R
PE
Input to cam V2
Output to cam V2
7105d35e/1009

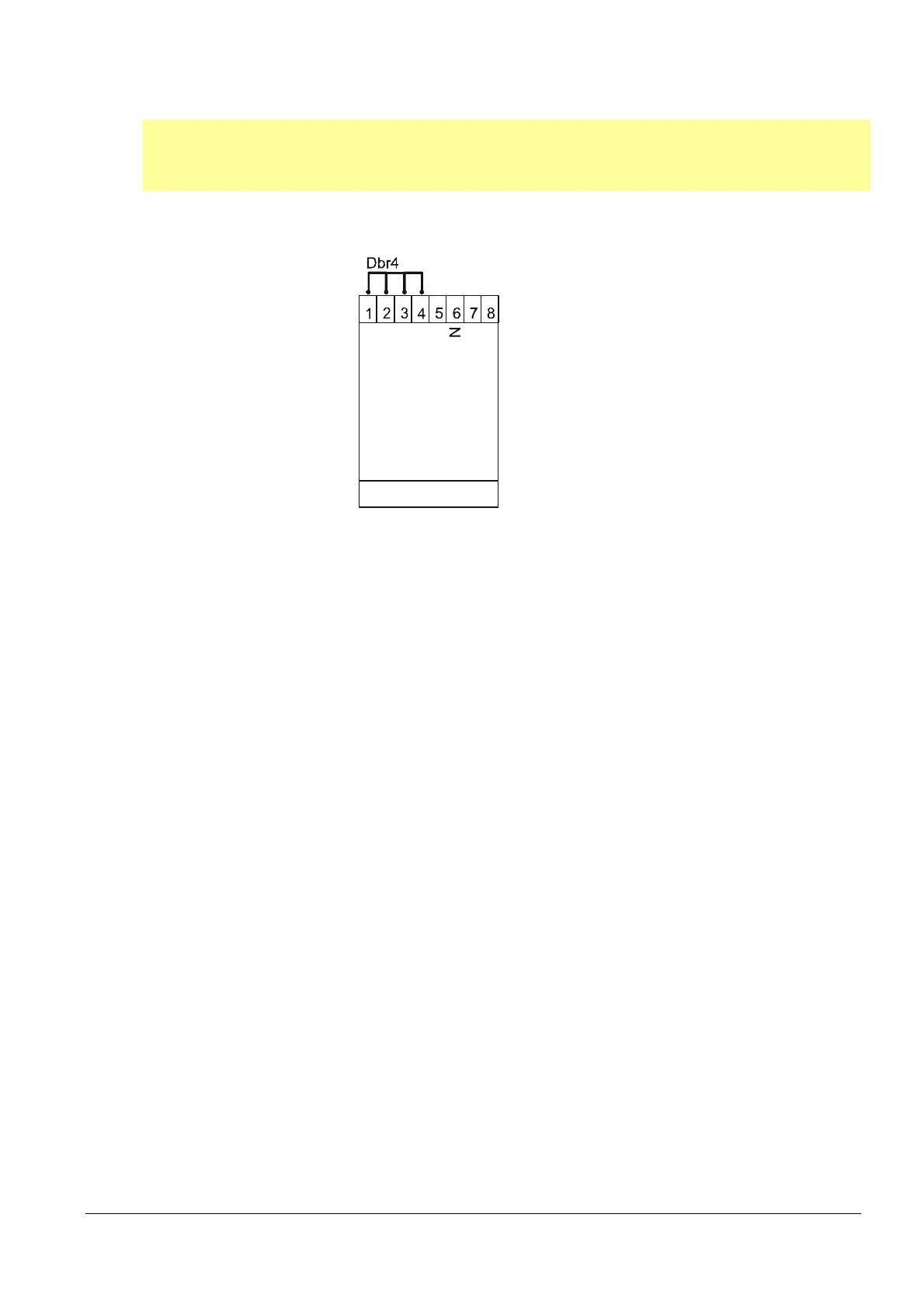

Figure 53: Connection diagram for LME73.000... without actuator SQM4...
 When using the LME73.000... without actuator according to application Gas direct
ignition (G), 1-stage, gas direct ignition 1 (G), 1-stage, with valve proving, wire link
Dbr4 must be fitted to the actuator’s X2-09 as shown above
 Parameter P515.01 must be set to 0
