Building Technologies Division Basic Documentation LME7... CC1P7105en

Infrastructure & Cities Sector 23 Operation via AZL2… 29.11.2011

Alternative 1:

Discard the change!

ESC

mi n

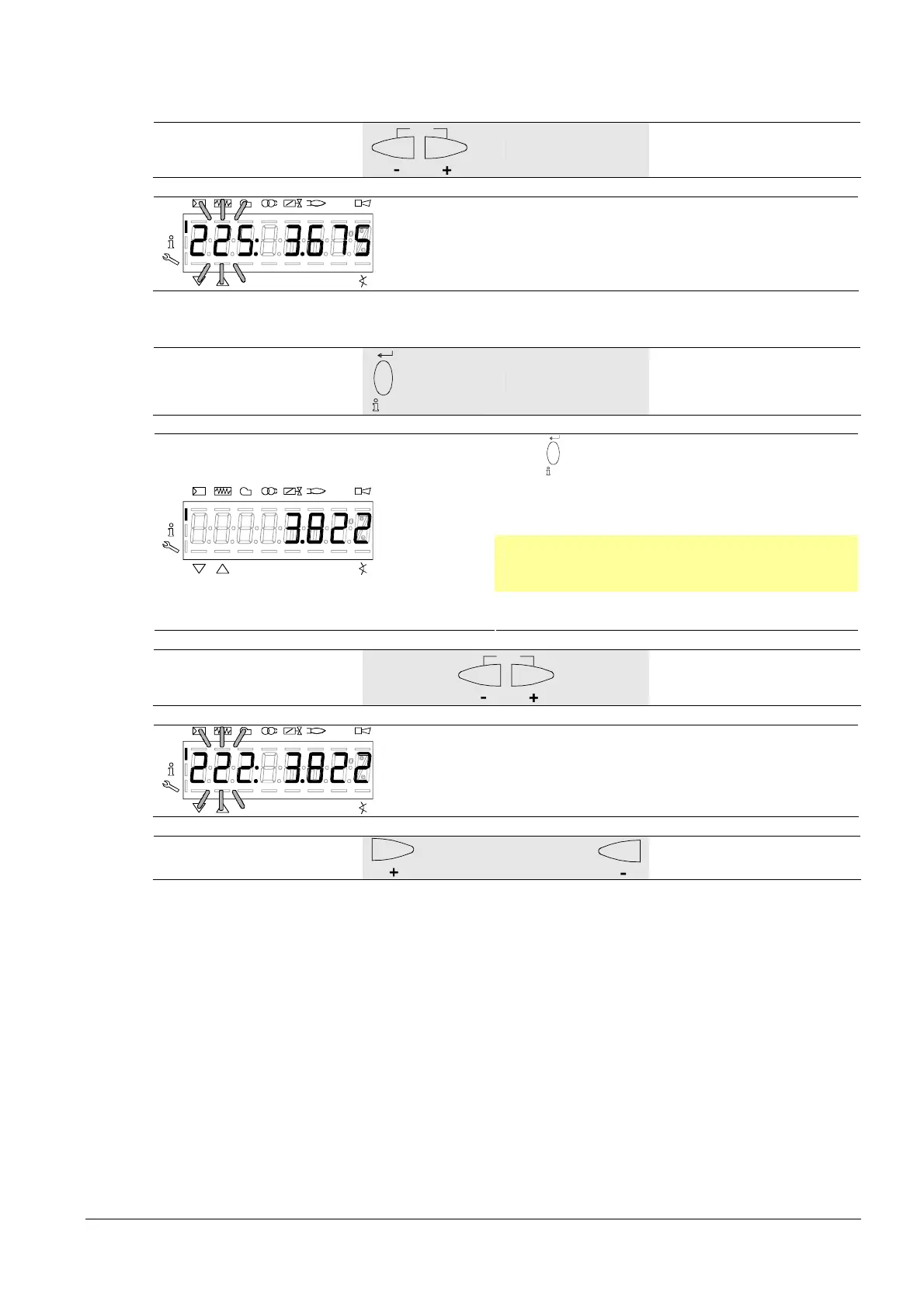

Bild 166/1107

Alternative 2:

Adopt the value!

reset

Press

reset

to return to editing mode.

The value set will be adopted.

Note:

To detect display errors, the value appears one

place shifted to the right.

mi n

Bild 170/1107

Display: Value 3.822

ESC

mi n

Bild 212/1008

To the next parameter

Back to the previous

parameter
