Illustration similar
Illustration similar

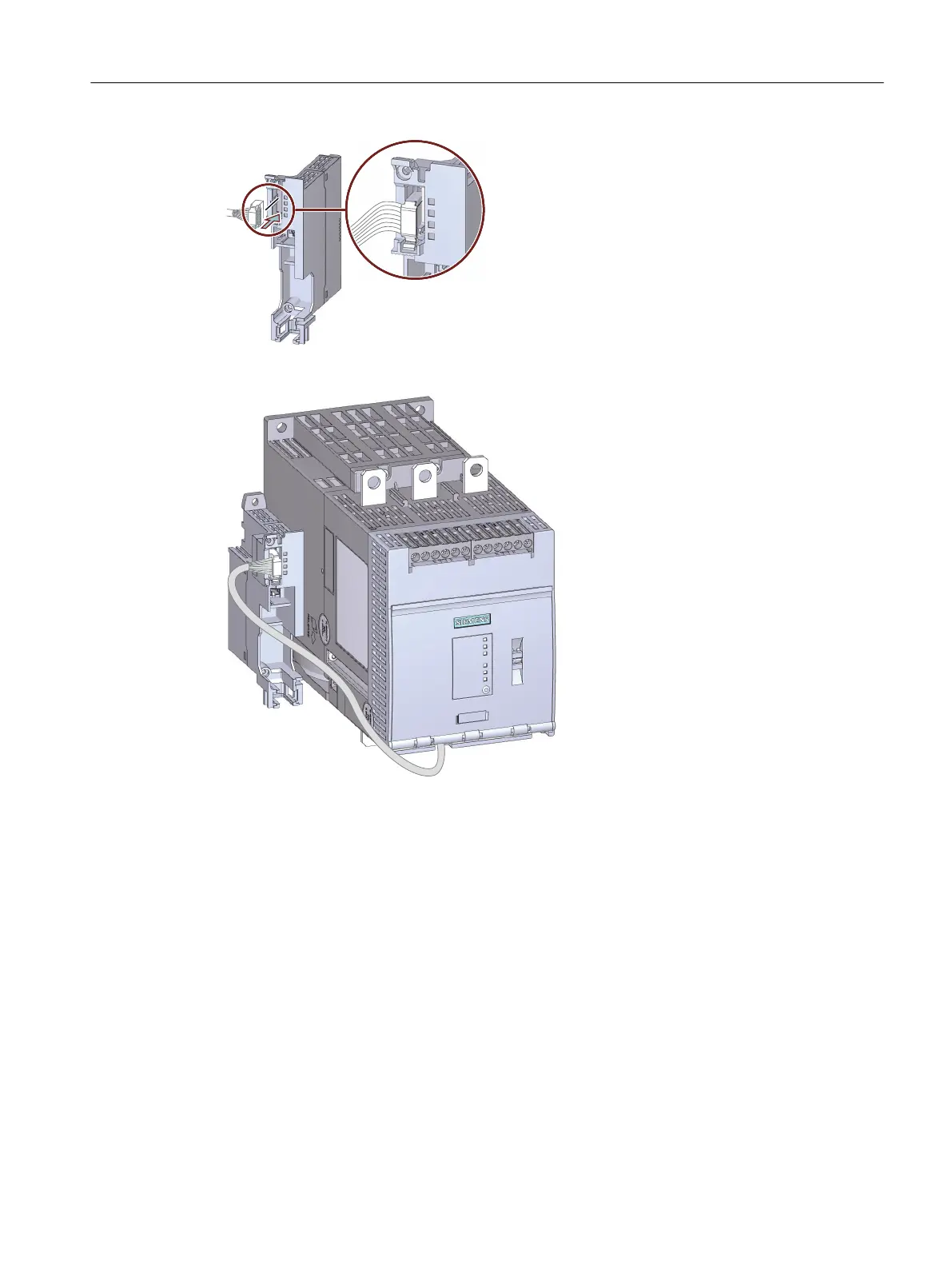

Plug the bus connector of the COM connecting cable with the pin connectors into the front plug-
in connection of the 3RW5 communication module until the securing mechanism on the bus
connector of the COM connecting cable latches into place.
Route the COM connecting cable in front under the 3RW50 soft starter and then on the side next
to the 3RW50 soft starter. Maintain sucient distance from the main power connections and
ensure that your routing is EMC-compliant.
Result
The 3RW5 communication module is now properly mounted and connected to the 3RW50 soft
starter. You can connect the 3RW50 soft starter via the 3RW5 communication module on the
eldbus (Page 50).
Connection
5.1 COM connecting cable
SIRIUS 3RW5 PROFINET communication modules
Equipment Manual, 05/2021, A5E35631297002A/RS-AD/004 47
