Mounting dimensions
Table 5-1 Mounting dimensions
Dimensions
Mounting width Terminal module with power supply module 60 mm
Terminal module with interface module/electronic module 60 mm
Terminal module with electronic modules 60 mm
Termination module 20 mm
Mounting height Terminal module with power supply module 190 mm
Terminal module with interface module/electronic module 190 mm
Terminal modules with electronic modules 190 mm
Termination module 155 mm
Mounting depth ET 200iSP on S7-300 mounting rail 167 mm
Enclosure for ET 200iSP in Zone 1
The ET 200iSP must be installed in an enclosure with degree of protection Ex e (increased
safety). See Appendix "Article numbers (Page 419)".
&ODMPTVSF
;POF
$BCMFHMBOE$BCMFHMBOE$BCMFHMBOE
*OQVUBOEPVUQVU1PXFS
TVQQMZ
130'*#64
34*4
&YF
&YJ

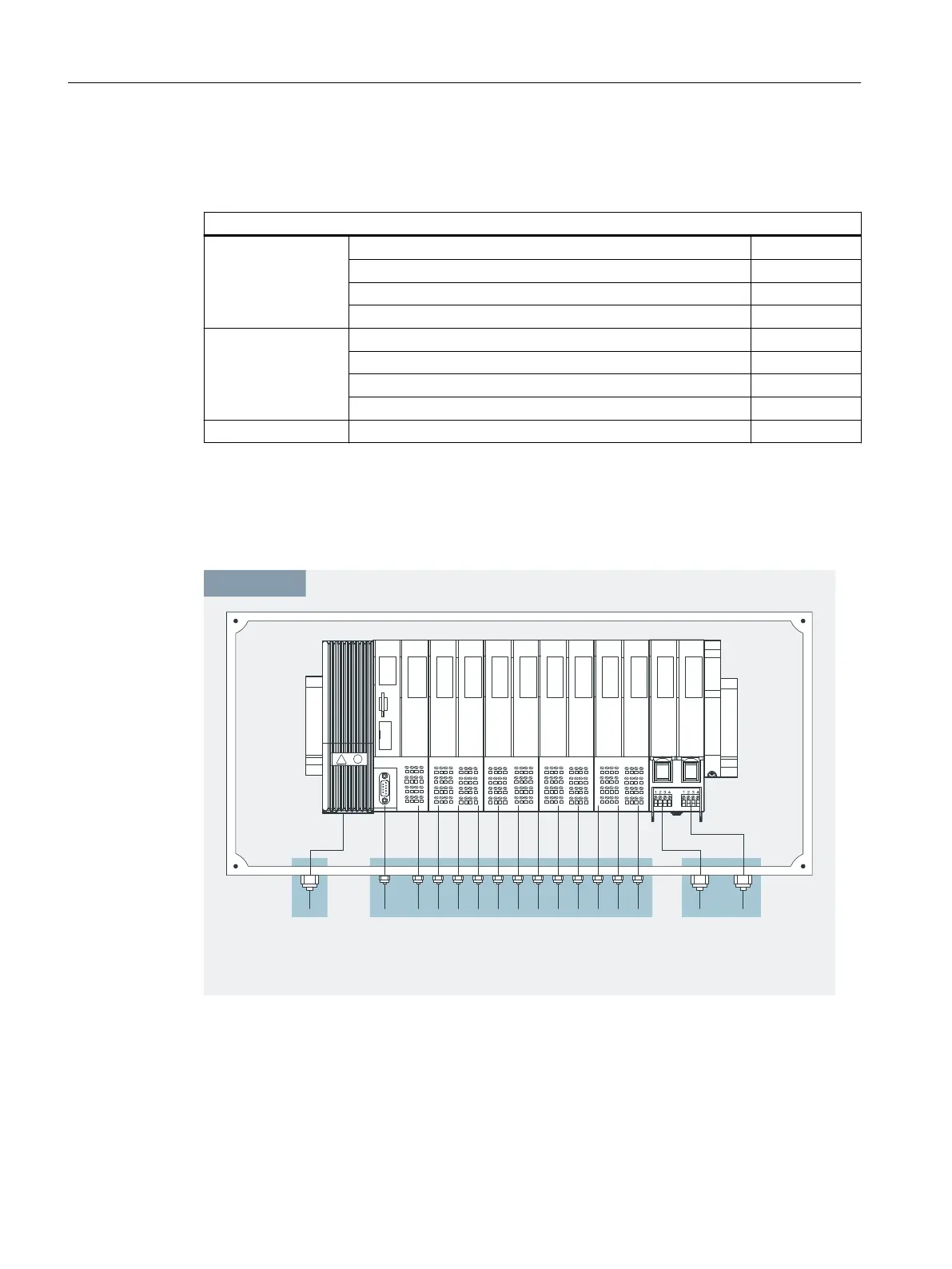

Figure 5-1 Enclosure for ET 200iSP in Zone 1
Installing
5.1 Installation rules
ET 200iSP
102 Operating Instructions, 11/2022, A5E00247483-AK
