Minimum clearances to the enclosure for installation, wiring, and ventilation

XJUIPVUUBLJOHJOUPBDDPVOUUIFTIJFME

TVQQPSUPGDBCMFT

NN`NN

NN

%JTUBODFUPFODMPTVSFDPWFSBU

MFBTUNN

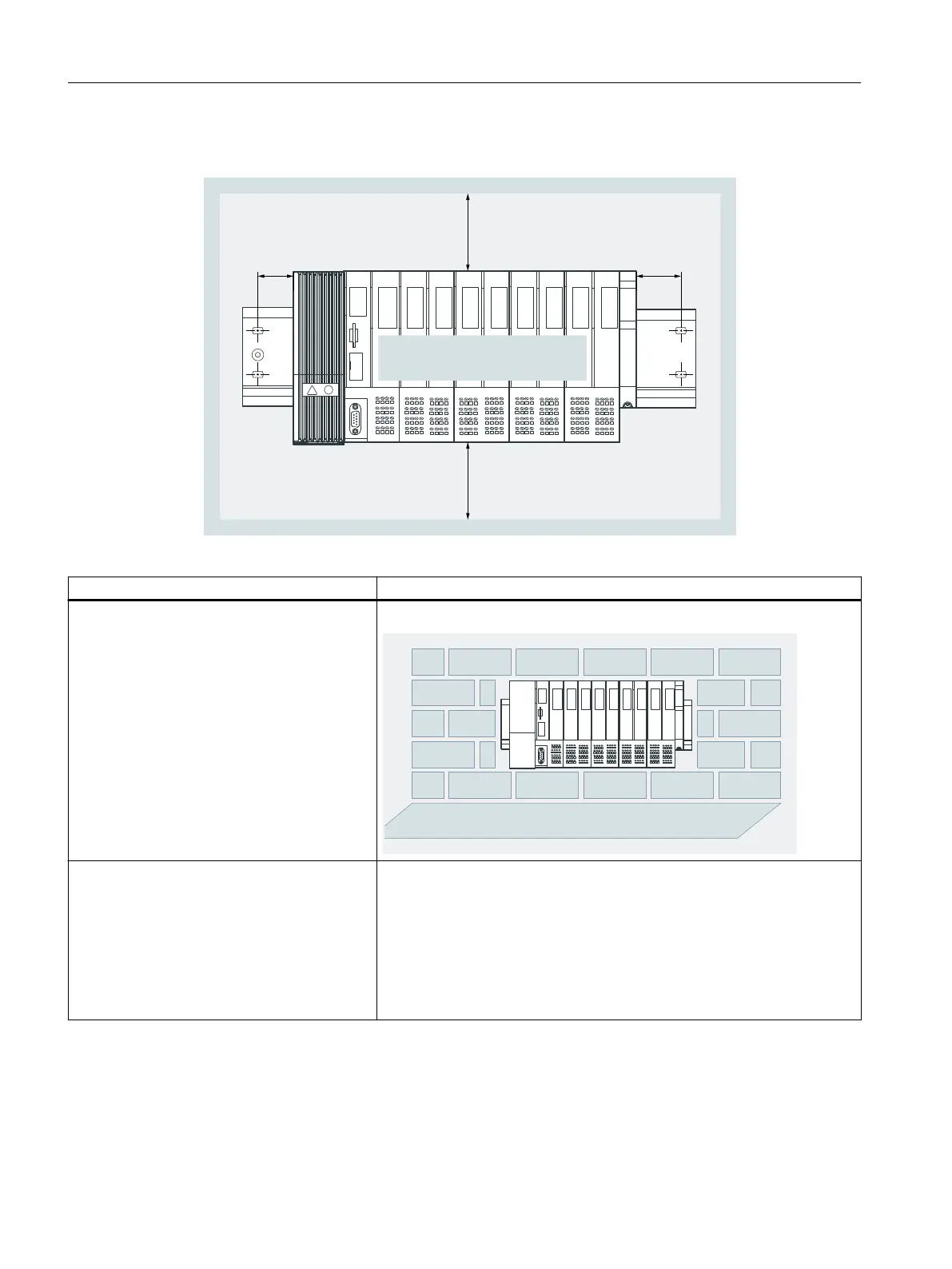

Figure 5-5 Minimum clearances to the enclosure

Ambient temperature Mounting positions

• Power supply PS DC24V:

– from -20 to 70 °C

• Power supply PS AC120/230V:

At AC 120 V

– from -20 to 70 °C (3 A)

– from -20 to 60 °C (4 A)

– from -20 to 50 °C (5 A)

• Power supply PS AC120/230V:

At AC 230 V

– from -20 to 70 °C (4 A)

– from -20 to 60 °C (5 A)

For horizontal installation of the ET 200iSP on a vertical wall

• Power supply PS DC24V:

– from -20 to 40 °C (up to product version

2 of the power supply PS)

– From -20 to 50 °C (as of product version

3 of the power supply PS)

• Power supply PS AC120/230V

– from -20 to 50 °C

For all other mounting positions of the ET 200iSP

Installing

5.1 Installation rules

ET 200iSP

106 Operating Instructions, 11/2022, A5E00247483-AK
