Required tools
4.5 mm screwdriver.
Installing the terminating module
1. Hook the terminating module onto the mounting rail to the right of the last terminal module.
2. Pivot the terminating module backwards onto the mounting rail.
3. Move the terminating module to the left until you hear it latch onto the last terminal module.
4. Screw the terminating module to the mounting rail (1 screw - torque 0.8 to 1.1 Nm). Use a
screwdriver with a 4.5 mm wide blade.
Note
To prevent the ET 200iSP from slipping sideways on the mounting rail , you must secure the
terminating module mechanically (see point 4). The xing screw is located on the front on
the terminating module.

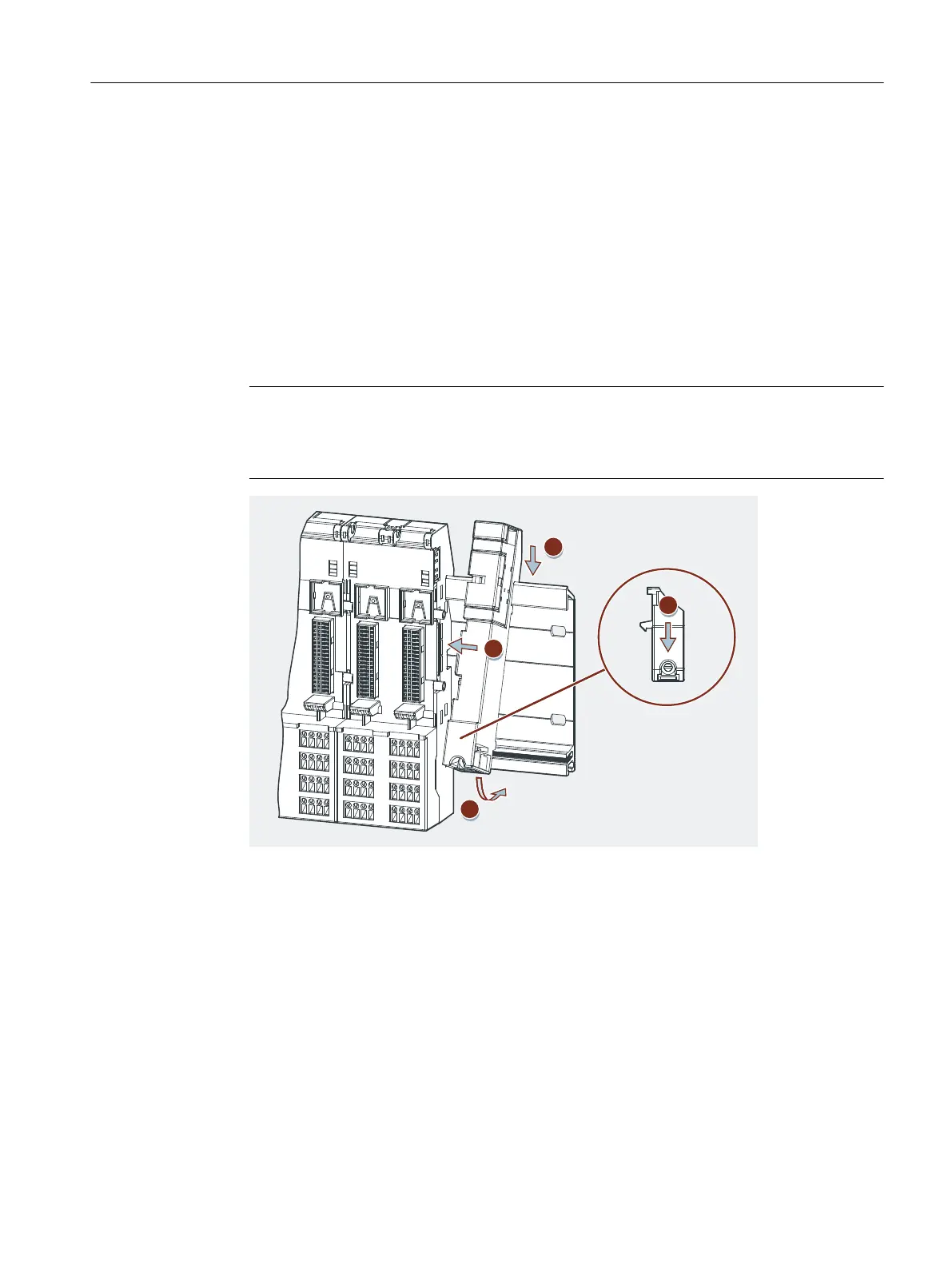

Figure 5-10 Installing the terminating module
Uninstalling terminating module
1. Switch o the supply voltage on the power supply PS or uninstall the power supply PS.
2. Remove the lock screw of the terminal module.
3. Use the screwdriver to push the catch on the last terminal module down to the stop and slide
the terminating module to the right.
4. Swivel the terminating module out of the mounting rail.
Installing
5.5 Installing the Terminating Module and the Slot Cover
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 115
