Installing the slot cover
1. Use the screwdriver to lever the slot cover out of the terminating module. The slot cover is
xed in bracket on the right of the terminating module.
2. Plug it into the last slot of the ET 200iSP.

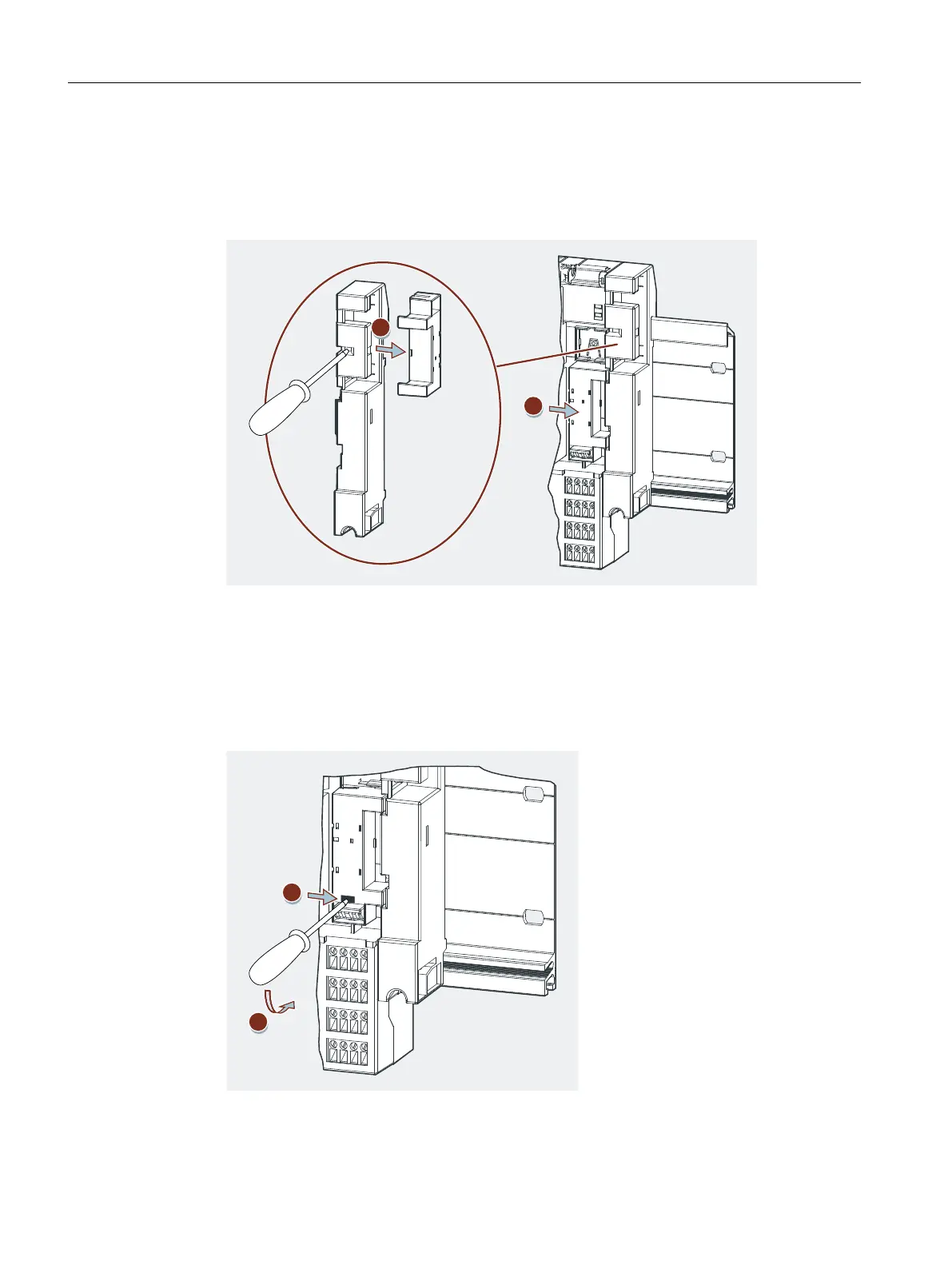

Figure 5-11 Installing the slot cover
Removing the slot cover
1. Push the screwdrivers into the lower opening on the slot cover and lever this out of the
terminal module.
2. Press the Slot Cover into the bracket on the terminating module.
Figure 5-12 Installing the slot cover
Installing
5.5 Installing the Terminating Module and the Slot Cover
ET 200iSP
116 Operating Instructions, 11/2022, A5E00247483-AK
