Siemens SIMATIC ET 200iSP User Manual

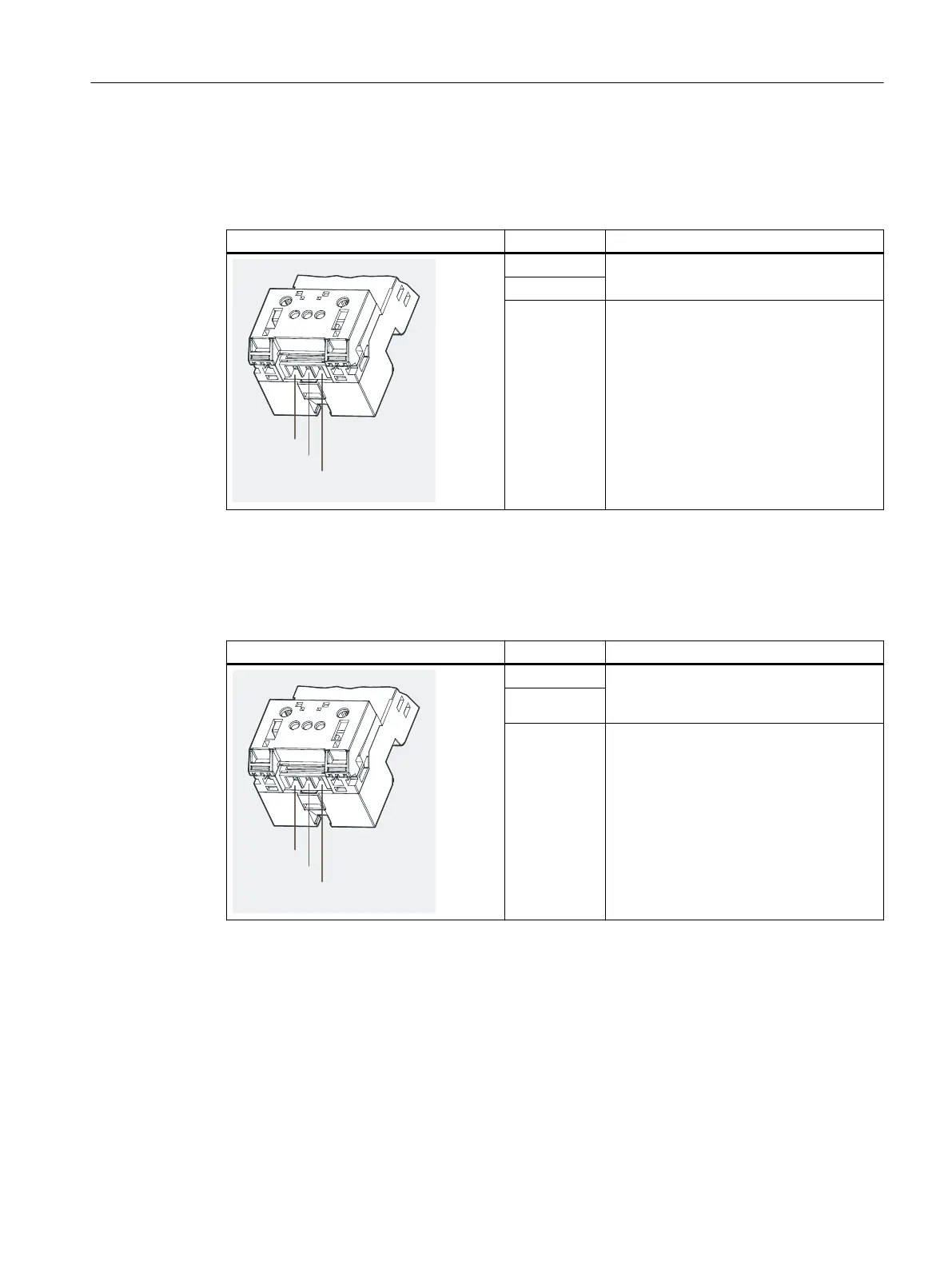

Pin assignment TM‑PS‑A (6ES7193-7DA10-0AA0) and TM‑PS‑B (6ES7193-7DB10-0AA0)
Table 10-2 Pin assignment on the terminal modules TM‑PS‑A (6ES7193-7DA10-0AA0) and TM‑PS‑B
(6ES7193-7DB10-0AA0)
View Terminal Designation
-
.
1"
L+ Supply voltage for the plugged power sup‐
ply PS DC24V
M
PA Equipotential bonding
Pin assignment TM‑PS‑A (6ES7193-7DA20-0AA0) and TM‑PS‑B (6ES7193-7DB20-0AA0)
Table 10-3 Pin assignment on the terminal modules TM‑PS‑A (6ES7193-7DA20-0AA0) and TM‑PS‑B
(6ES7193-7DB20-0AA0)
View Terminal Designation
--
/.
1"
L1/L+ Supply voltage for the plugged power sup‐
ply PS DC24V (as of product version 7) or PS
AC120/230V
N/M
PA Equipotential bonding
Terminal modules
10.2 Terminal Modules TM-PS-A and TM-PS-B
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 251
