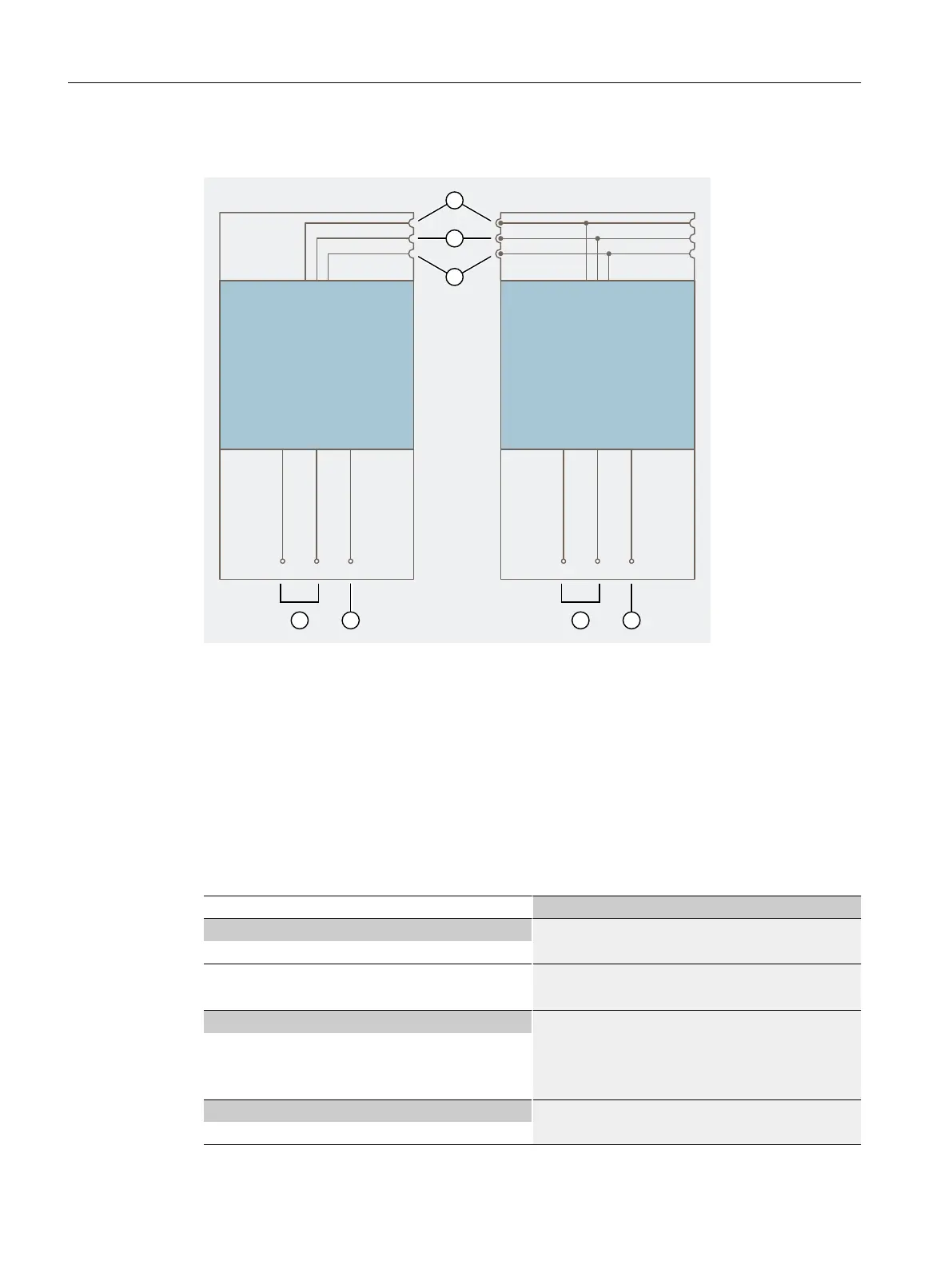

Block diagram









1414

① Power bus

② Interface module

③ Backplane bus

④ Equipotential bonding

⑤ Supply voltage terminals

Figure 10-1 Block diagram of terminal module TM‑PS‑A and TM‑PS‑B

Technical speci󹪝cations

Terminal module TM‑PS‑A

Article number 6ES7193-7DA20-0AA0

Standards, approvals, certi󹪝cates

CE mark Yes

Use in hazardous areas

• ATEX marking

see ET 200iSP system

Dimensions

Width 60 mm

Height 190 mm

Depth 52 mm

Weights

Weight, approx. 230 g

Terminal modules

10.2 Terminal Modules TM-PS-A and TM-PS-B

ET 200iSP

252 Operating Instructions, 11/2022, A5E00247483-AK
