Properties
• Terminal module for 2 electronic modules 2 DO Relay UC60V/2A or reserve modules (product
version 3 and higher).
• Connection of actuators by means of screw terminals for TM-RM/RM 60S.
• Screw terminals of the TM-RM/RM 60S are designed in increased safety Ex e type of
protection.
• Self-generating interference leakage from the terminal module to the mounting rail by
means of a spring contact
• Prewiring of the terminal module is possible.
• Ex d disconnecting plug for removing and inserting the 2 DO Relay UC60V/2A.
• Terminal cover of the Ex e terminals must be closed during operation.
Pin assignment

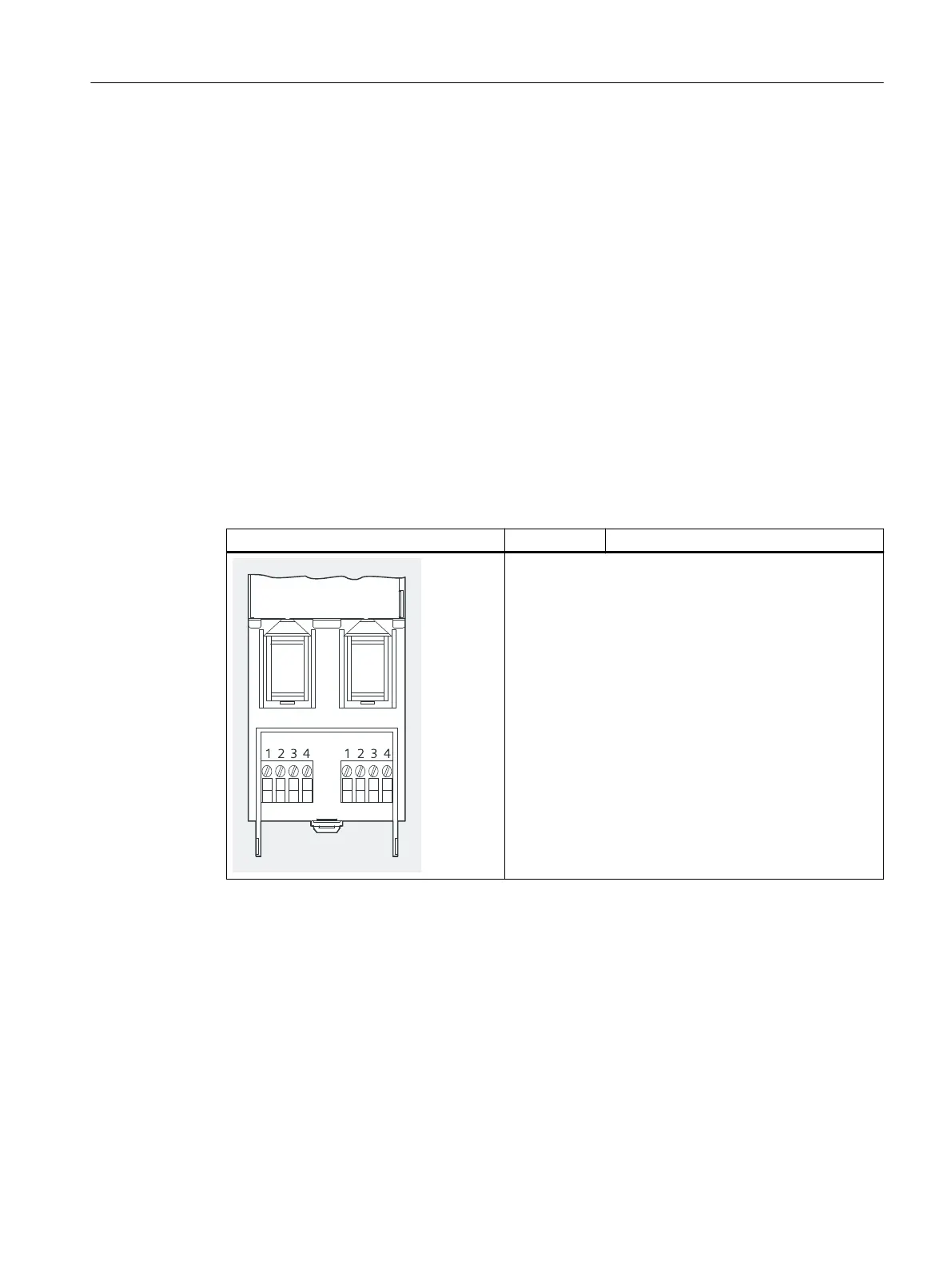

Table 10-7 Pin assignment of terminal module TM-RM/RM
View Terminal Designation
Pin assignment, see sections "Digital electronic modules
(Page 295)" and "Analog electronic modules (Page 345)"
Terminal modules
10.6 Terminal module TM-RM/RM
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 265
