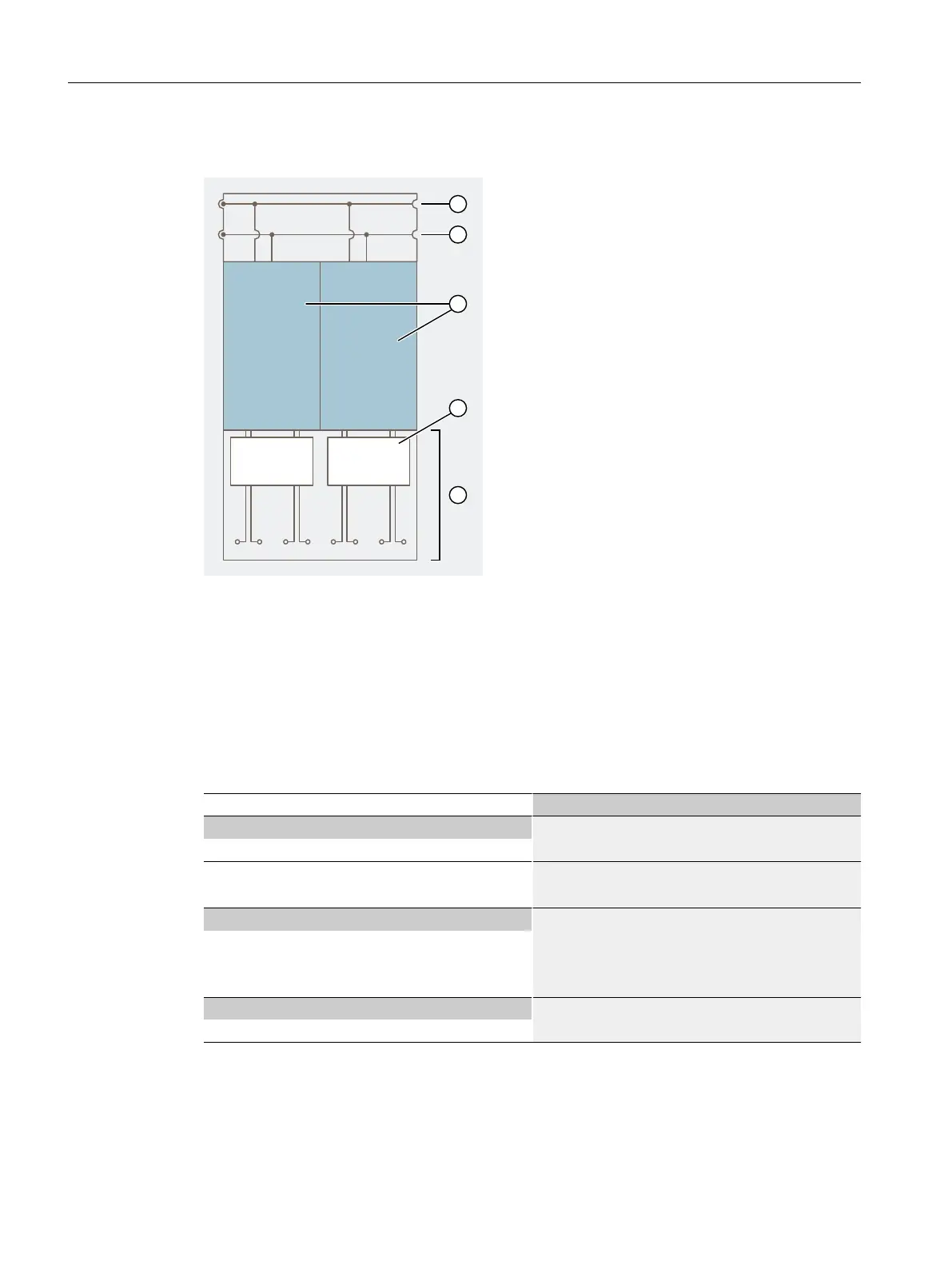

Block diagram
① Power bus
② Backplane bus
③ Electronics module 2 DO Relay UC60V/2A or reserve module (product version 3 and higher)
④ Ex d disconnecting plug
⑤ Ex e terminals with connection to the electronic module
Figure 10-5 Block diagram of terminal module TM-RM/RM
Technical specications
Article number 6ES7193-7CB00-0AA0
Standards, approvals, certicates
CE mark Yes
Use in hazardous areas
• ATEX marking
see ET 200iSP system
Dimensions
Width 60 mm
Height 190 mm
Depth 52 mm
Weights
Weight, approx. 340 g
Terminal modules
10.6 Terminal module TM-RM/RM
ET 200iSP
266 Operating Instructions, 11/2022, A5E00247483-AK
