â‘ Power supply PS
â‘¡ Interface module IM 152-1DP
â‘¢ Electronic modules
â‘£ Termination module
⑤ Terminal module TM-RM/RM
â‘¥ Terminal modules TM-EM/EM
⑦ Terminal module TM-IM/EM
⑧ Terminal module TM-PS-A

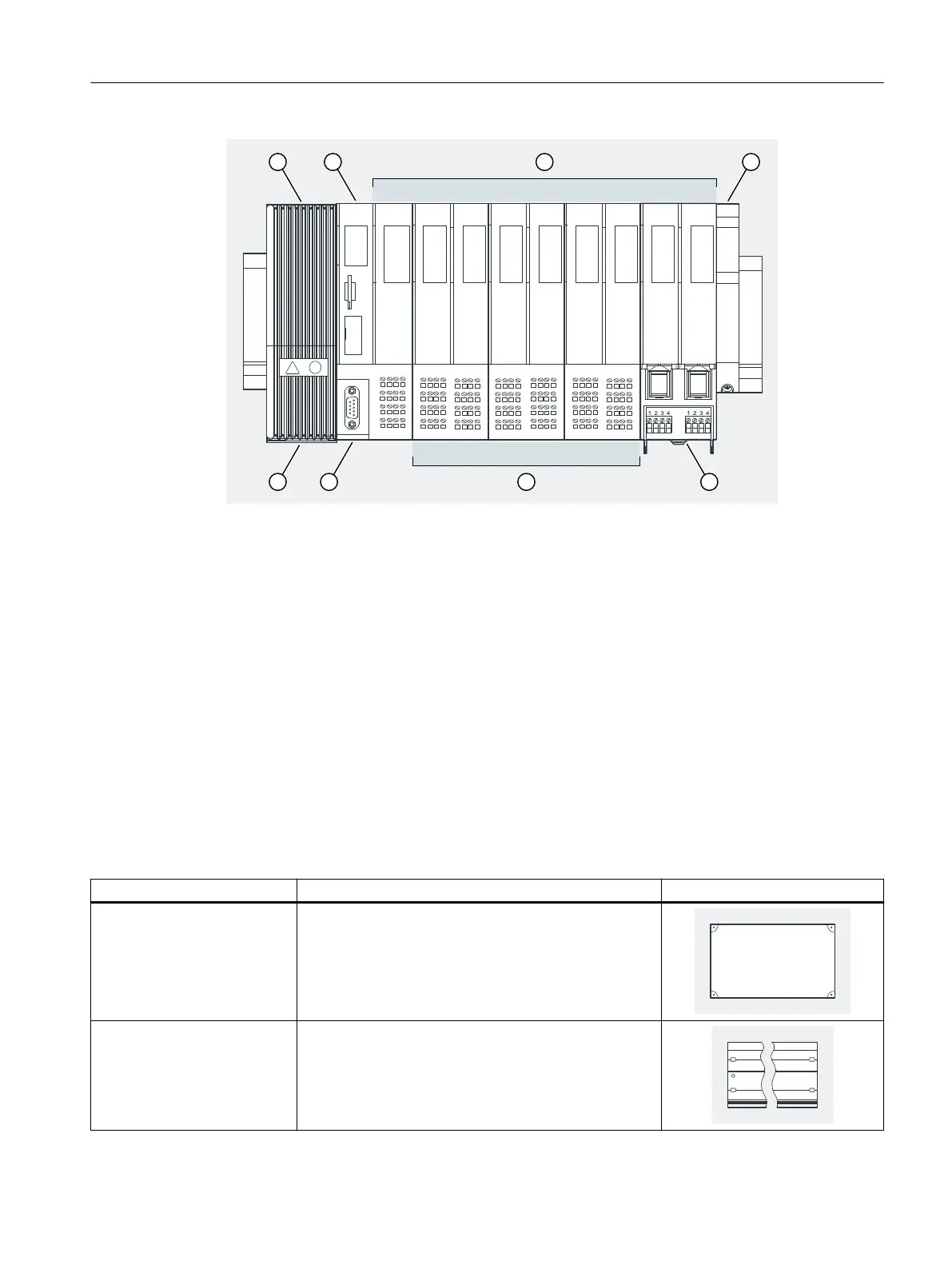

Figure 2-2 View of the ET 200iSP distributed I/O device with IM 152-1DP
Components of the ET 200iSP distributed I/O device
The following table provides an overview of the most important components of a station of the
ET 200iSP distributed I/O device (hereafter referred to as station).
Table 2-2 Components of the station
Component Function Image
Enclosure ... is a measure required to prevent high temperatures,
sparks and arcing from forming with a higher degree of
certainty.
Mounting rail ... is the rack for the station. You have to mount the other
components on the DIN rail.
Product overview
2.1 ET 200iSP Distributed I/O Station
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 27
