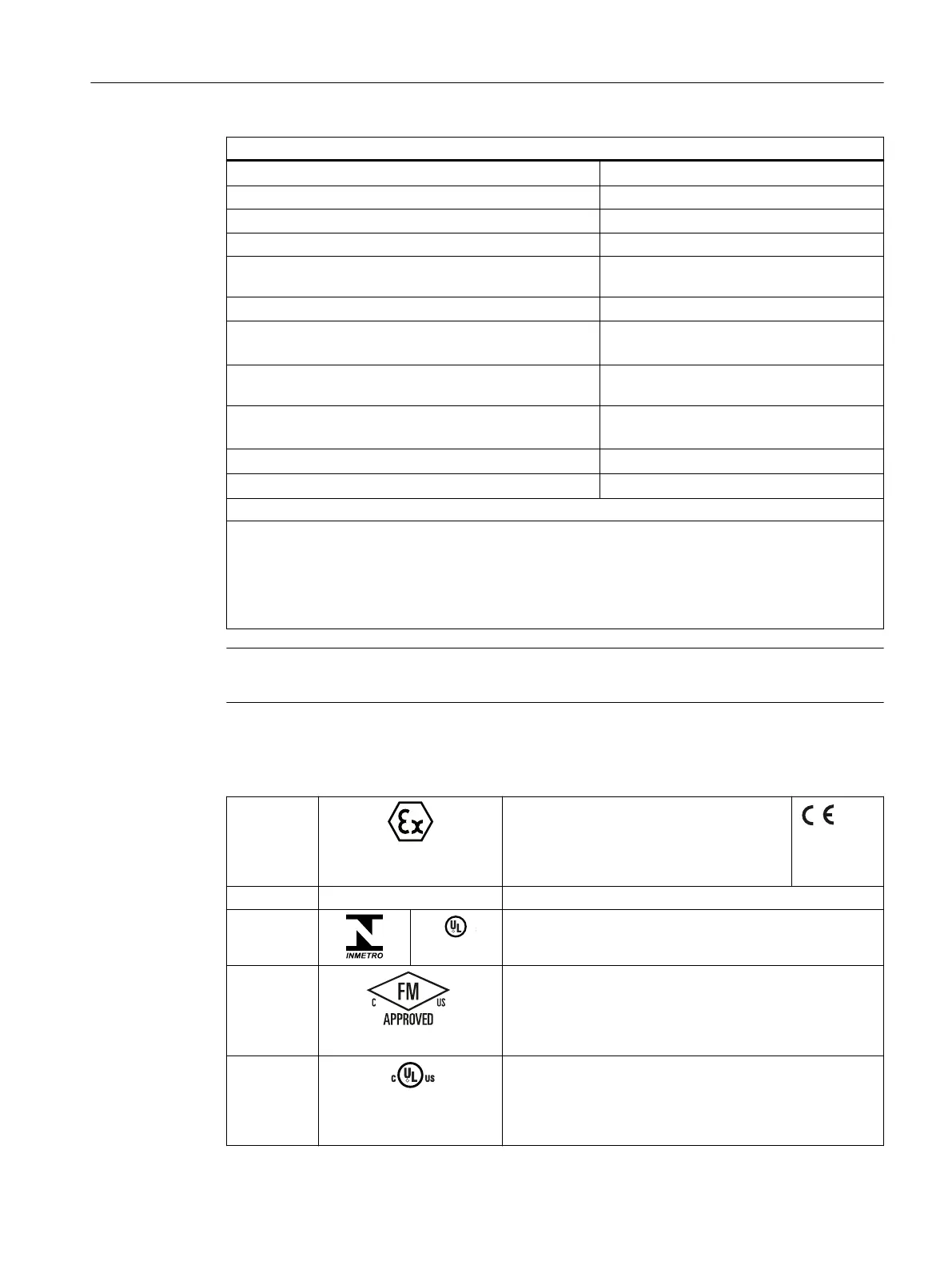

Technical speci󹪝cations
• between supply voltage and all output voltages
AC 2500 V
Starting current inrush
• for AC 120/230 V
28 A
Permitted input power max. 82.2 W
Output current at AC 230 V (AC 170 V to 264 V) and am‐
bient temperature
• from -20 °C to +70 °C with horizontal mounting
max. 4 A
• from -20 °C to +60 °C with horizontal mounting and
-20 °C to +50 °C with all other mounting positions
max. 5 A
Output current at AC 120 V (AC 85 V to 132 V) and ambient
temperature
• from -20 °C to +70 °C with horizontal mounting and -20
°C to +50 °C with all other mounting positions
max. 3 A
• from -20 °C to +60 °C with horizontal mounting
max. 4 A
• from -20 °C to +50 °C with horizontal mounting
max. 5 A
Safety data
2
Tolerance range AC 85 V to 264 V.
Protection with automatic circuit breaker 6 A and tripping characteristic C (per ET 200iSP station)
3
Rated current: 0.75 A (at AC 120 V)/ 0.45 A (at AC 230 V)
4
You can 󹪝nd additional information about in the section "Restricted Number of Connectable Electronics
Modules (Page 70)"
Note
You must take appropriate measures to ensure that U
m
= 264 V DC, 264 V AC is not exceeded.
Approvals
ATEX II 2 G and I M2
Ex db eb [ib] IIC T4 Gb
Ex db eb [ib] Mb
KEMA 09 ATEX 0156
0344
IECEx IECEx KEM 09.0070
INMETRO
R
#3
0$1
BR-Ex db eb [ib] IIC T4 Gb
BR-Ex db eb [ib] Mb
FM Class I, Zone 1, AEx db eb [ib] IIC T4;
Ex db eb [ib] IIC T4
NI, Class I, DIV.2, GP. A.B.C.D T4
Class II, III, GP E,F,G
cULus
R
-*45&%&
Process Cont. Eq. for use in HAZ.LOC.
Class I, Zone 1, AEx db eb [ib] IIC T4;
Ex db eb [ib] IIC T4
Class I, DIV.2, GP. A,B,C,D T4
Power Supply
11.2 Power supply PS 120/230 VAC
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 275
