Siemens SIMOCODE pro Operating Manual

Function blocks
2.2 Function blocks - overview
SIMOCODE pro - Parameterize
16 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Function block

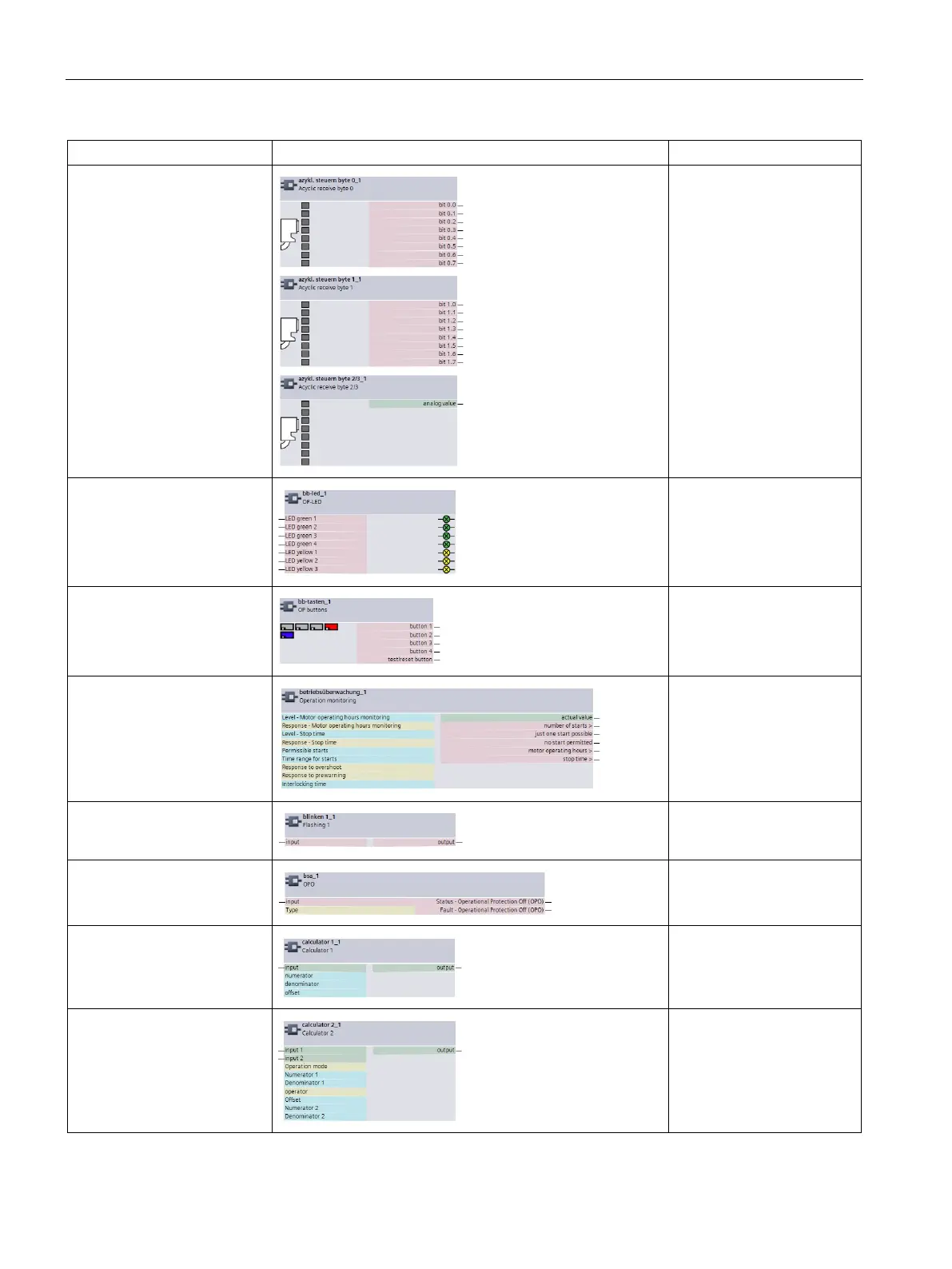

View in SIMOCODE ES
Section
Acyclic receive byte 0 (1, 2/3) See Acyclic Receive
(Page 197)
Operator panel LED See Operator panel LEDs
(Page 165)
Operator panel buttons See Operator panel buttons
(Page 186)
Operation monitoring See Operation monitoring
(Page 150)
Flashing 1 (2, 3) See Flashing (Page 254)
Operational Protection
Off (OPO)
See Operational Protection
Off (OPO) (Page 213)
Calculator 1 See Calculators (calculation
modules) 1, 2 (Page 261)
Calculator 2 See Calculators (calculation
modules) 1, 2 (Page 261)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
