Function blocks
2.2 Function blocks - overview
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
17

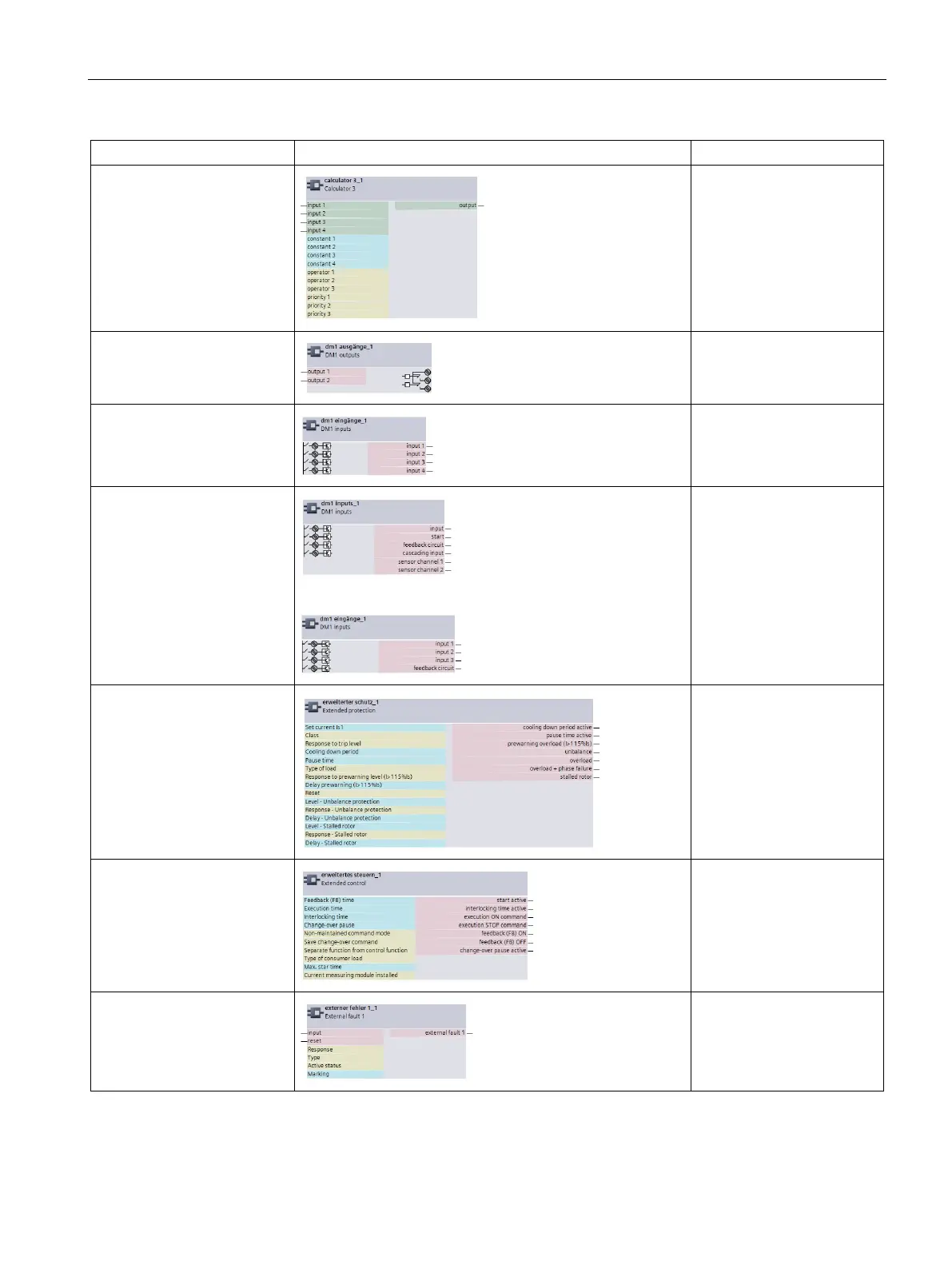

Function block
View in SIMOCODE ES
Section
Calculators 3, 4 See Calculators (calculation
modules) 3, 4 (Page 265)
Digital module 1 (2) outputs See Digital module outputs
(Page 168)
Digital module 1 (2) inputs See Digital module inputs
(Page 188)
Digital module 1 (2) inputs,
DM-F = DM-F Local or
DM-F PROFIsafe
See Digital module inputs
(Page 188)
Extended protection See Motor control (Page 52)
Extended control See Motor control (Page 52)
External fault 1 (2, 3, 4, 5, 6) See External fault
(Page 210)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
