Parameters
4.4 Outputs
SIMOCODE pro - Parameterize
172 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Application examples
1) Output of the effective motor current - across the entire motor current range
The motor current ranges from 0 to 8 A. The rated current I
N
of the motor at nominal load
is 2 A.
The set current in SIMOCODE ES I
s
corresponds to the rated current I
N
(2 A). In
SIMOCODE pro, the present phase currents or the maximum current (current IL_1, IL_2,
IL_3, max. current I_max) are represented as a as a percentage of the parameterized current
setting I
s
in accordance with the selected range:
● 0 A motor current corresponds to 0 % of I
s
● 8 A motor current corresponds to 400 % of I
s
● The smallest unit for the effective motor current in SIMOCODE pro is 1% (see measured
values data record 94, "Parameterizing SIMOCODE pro" manual)

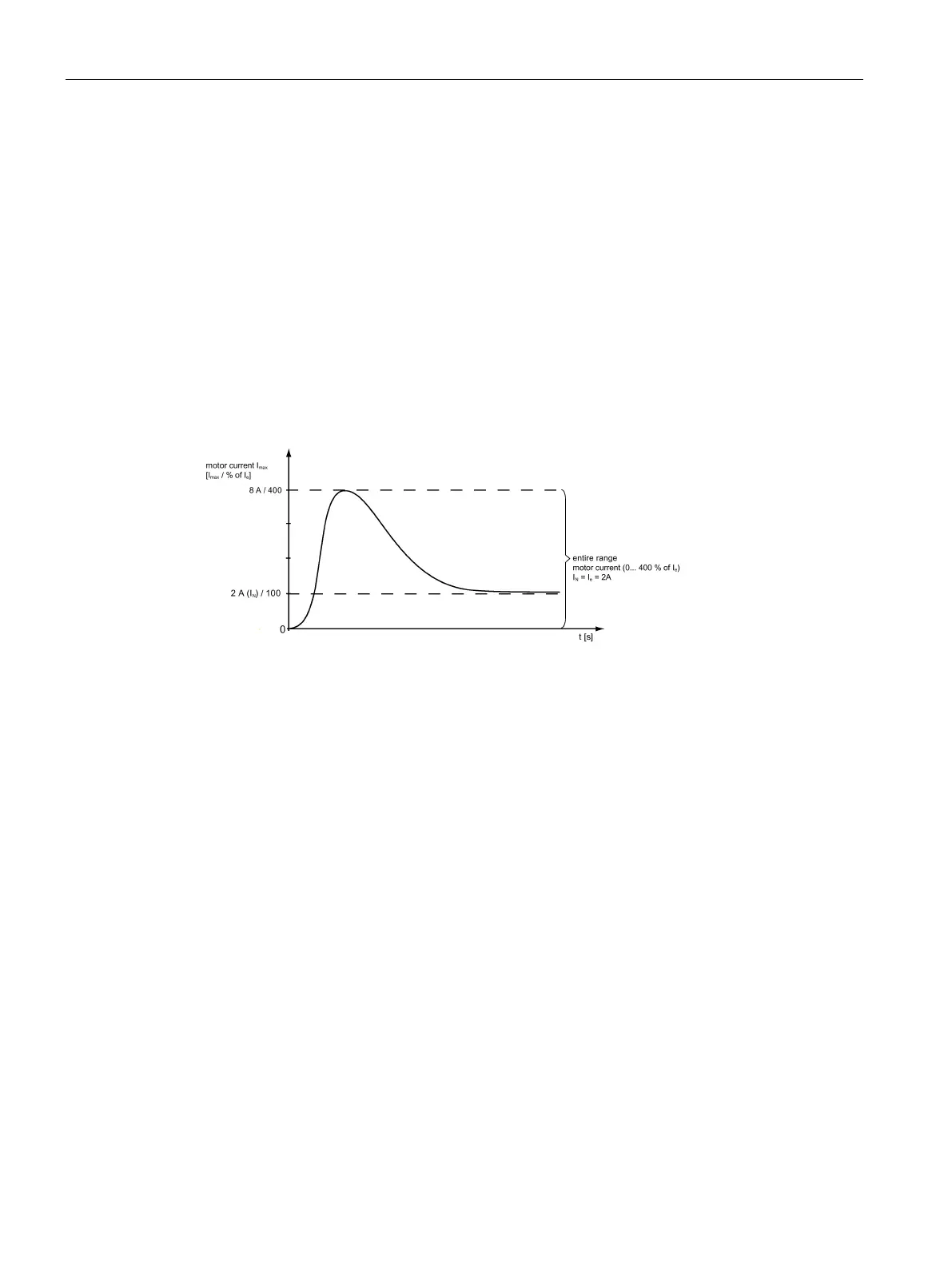

Figure 4-51 Application example: Motor current output - entire range
