Parameters
4.4 Outputs
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
173
As a result,
● The "Start value of value range" to be selected is: 0
● The "End value of value range" to be selected is: 400.

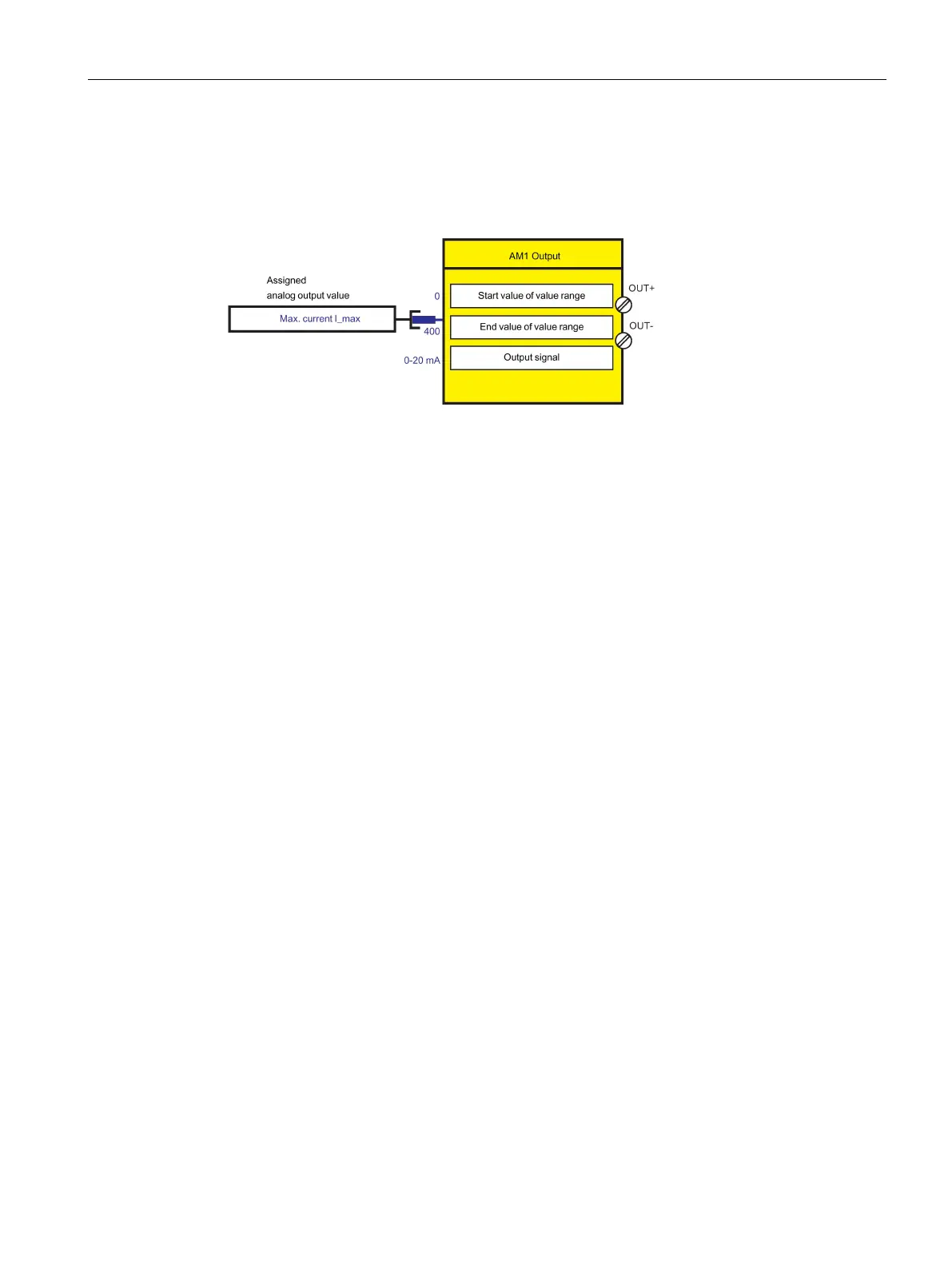

Figure 4-52 Application example: Motor current output - output values to function block AM output
When the parameterized "Output signal" = 0 to 20 mA:
● 0 % motor current: 0 mA at the analog module output
● 400 % motor current: 20 mA at the analog module output.
When the parameterized "Output signal" = 4 to 20 mA:
● 0 % motor current: 4 mA at the analog module output
● 400 % motor current: 20 mA at the analog module output.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
