Siemens SIMOCODE pro Operating Manual

Parameters
4.4 Outputs
SIMOCODE pro - Parameterize
174 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
2) Output of the effective motor current - only part of the motor current range (overload
range)
The motor current ranges from 0 to 8 A. The rated current I
N
of the motor at nominal load is
2 A.
The set current in SIMOCODE ES I
s
corresponds to the rated current I
N
(2 A). However, only
the overload range (2 A to 8 A) is to be displayed on an instrument via the analog module
output. In SIMOCODE pro, the present phase currents or the maximum current (current IL_1,
IL_2, IL_3, max. current I_max) are represented as a as a percentage of the parameterized
current setting I
s
in accordance with the selected range:
● 2 A motor current corresponds to 100 % of I
s
● 8 A motor current corresponds to 400 % of I
s
● The smallest unit for the effective motor current in SIMOCODE pro is 1% (see measured
values data record 94, "Parameterizing SIMOCODE pro" manual)

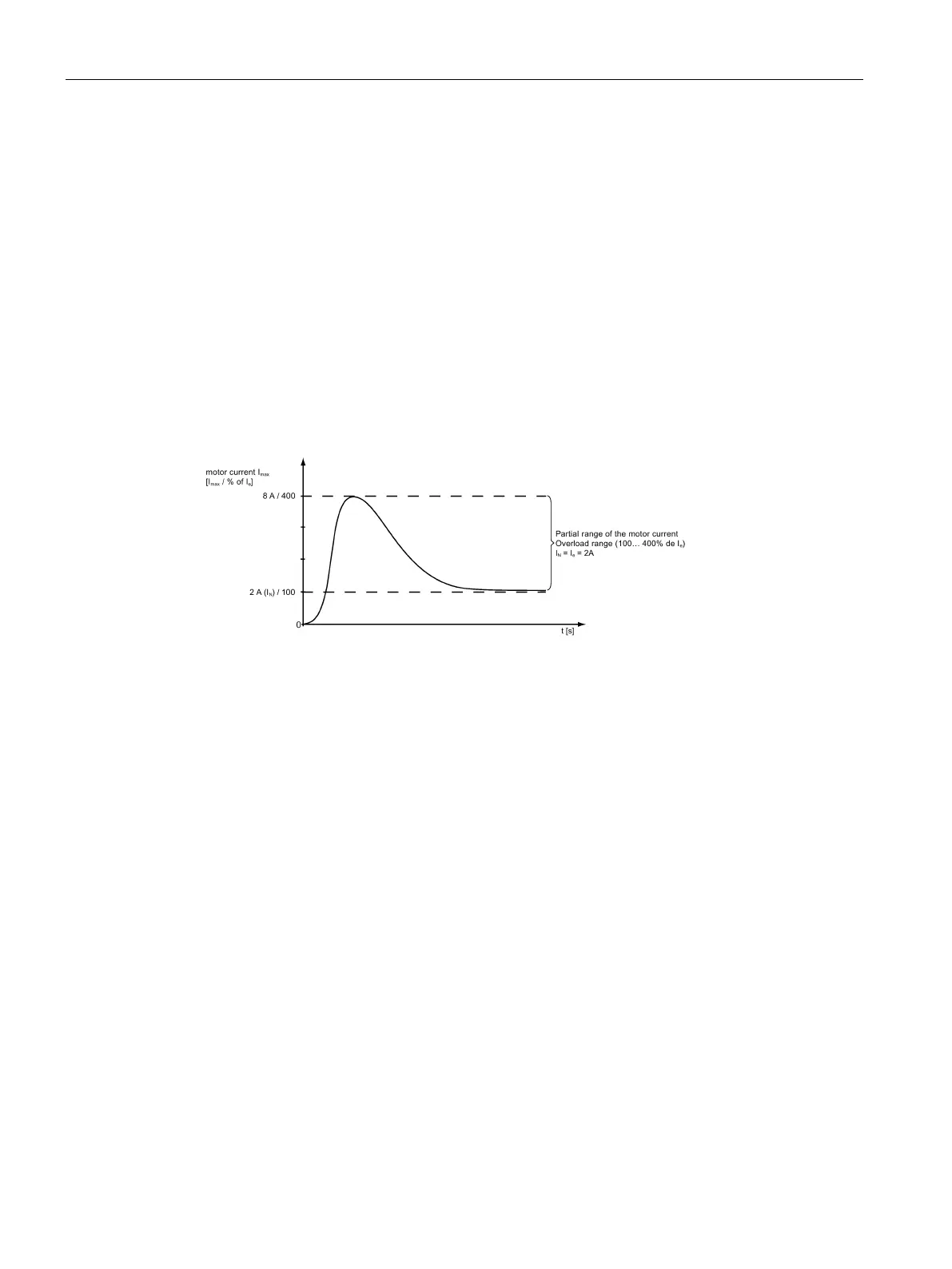

Figure 4-53 Application example: Motor current output - Overload range

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
