Siemens SIMOCODE pro Operating Manual

Parameters
4.1 Motor protection
SIMOCODE pro - Parameterize
32 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Schematic

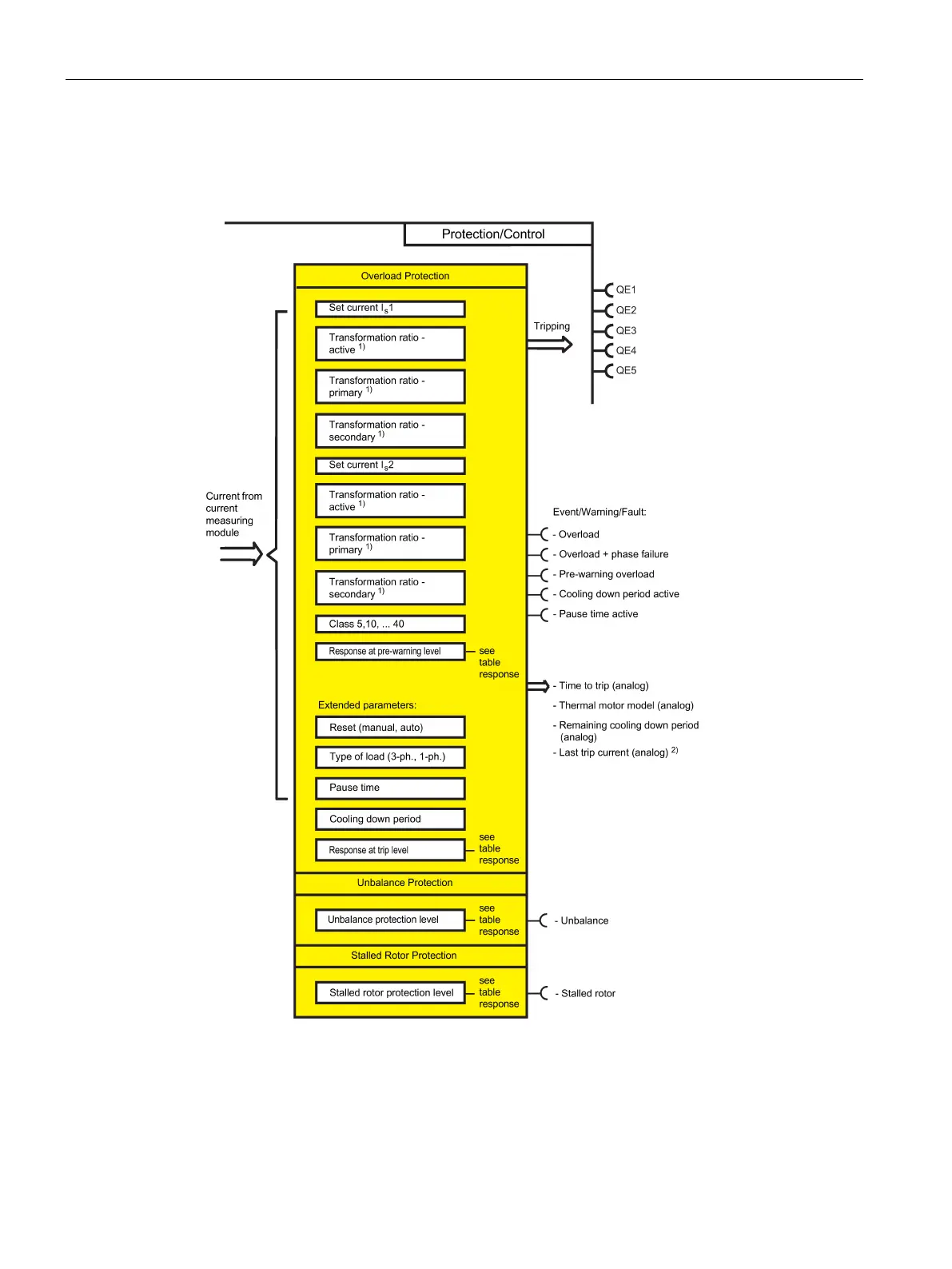

The following schematic shows the "Extended Protection" function block ("Overload protection,"
"Unbalance protection," and "Stalled rotor protection") with optional parameter settings and events.
Figure 4-1 "Extended Protection" function block ("Overload Protection," "Unbalance Protection," and
"Stalled Rotor Protection")
1) Adjustable transformation ratio when using interposing transformers with
SIMOCODE pro V PB, version *E03* and higher
2) If tripped due to overload

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
