Siemens SIMOCODE pro Operating Manual

Parameters
4.1 Motor protection
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
39
Overload characteristics for 2nd generation current / voltage measuring modules (e.g.
3UF7110-1AA01-0)
The following figure shows trip classes 5, 7, 10 (d), 15, 20, 25, 30, 35 and 40 for 3-pole
balanced loads:

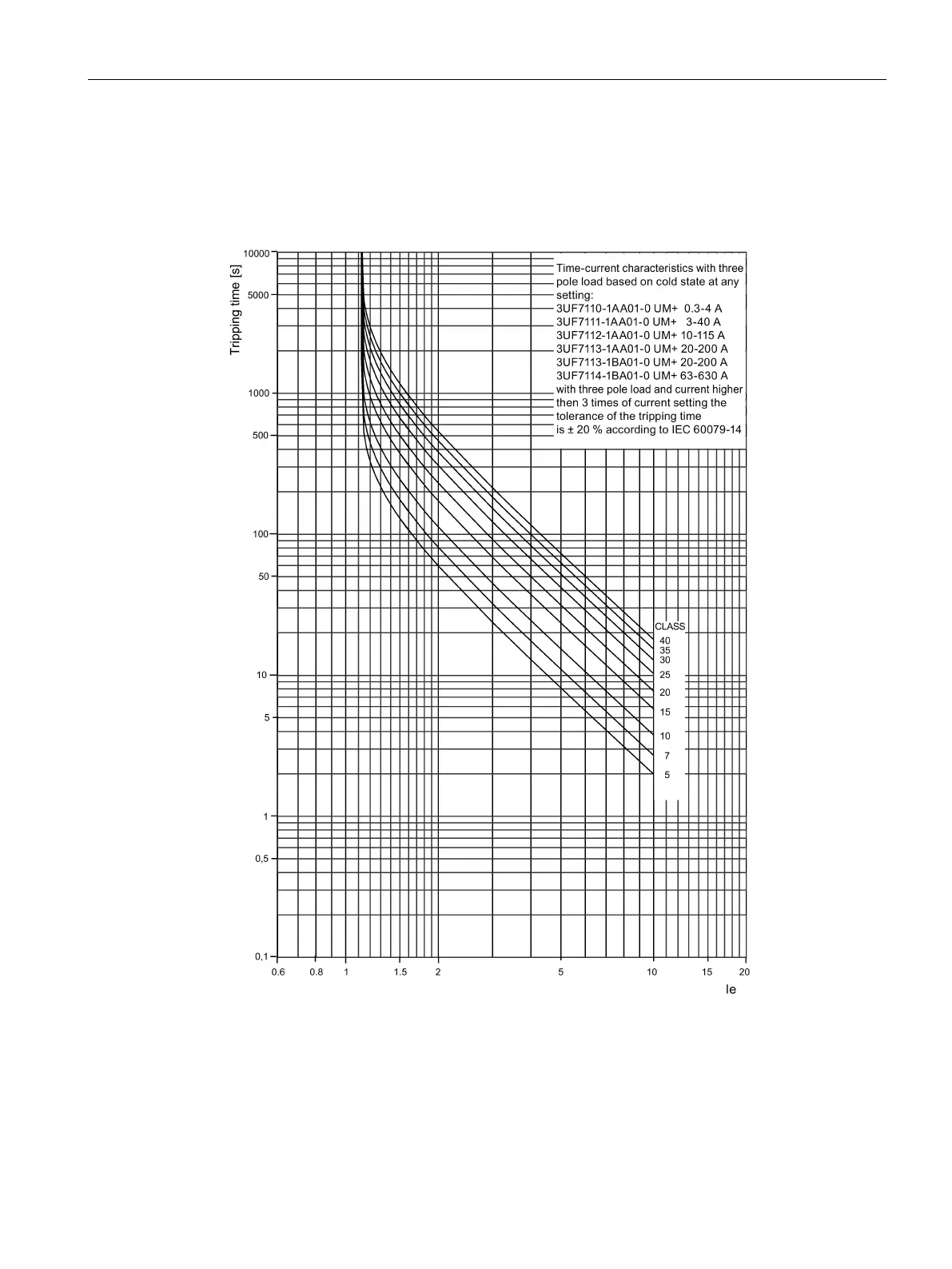

Figure 4-2 Trip classes for 3-pole loads, 2nd generation current / voltage measuring modules
