Parameters
4.1 Motor protection
SIMOCODE pro - Parameterize
40 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001

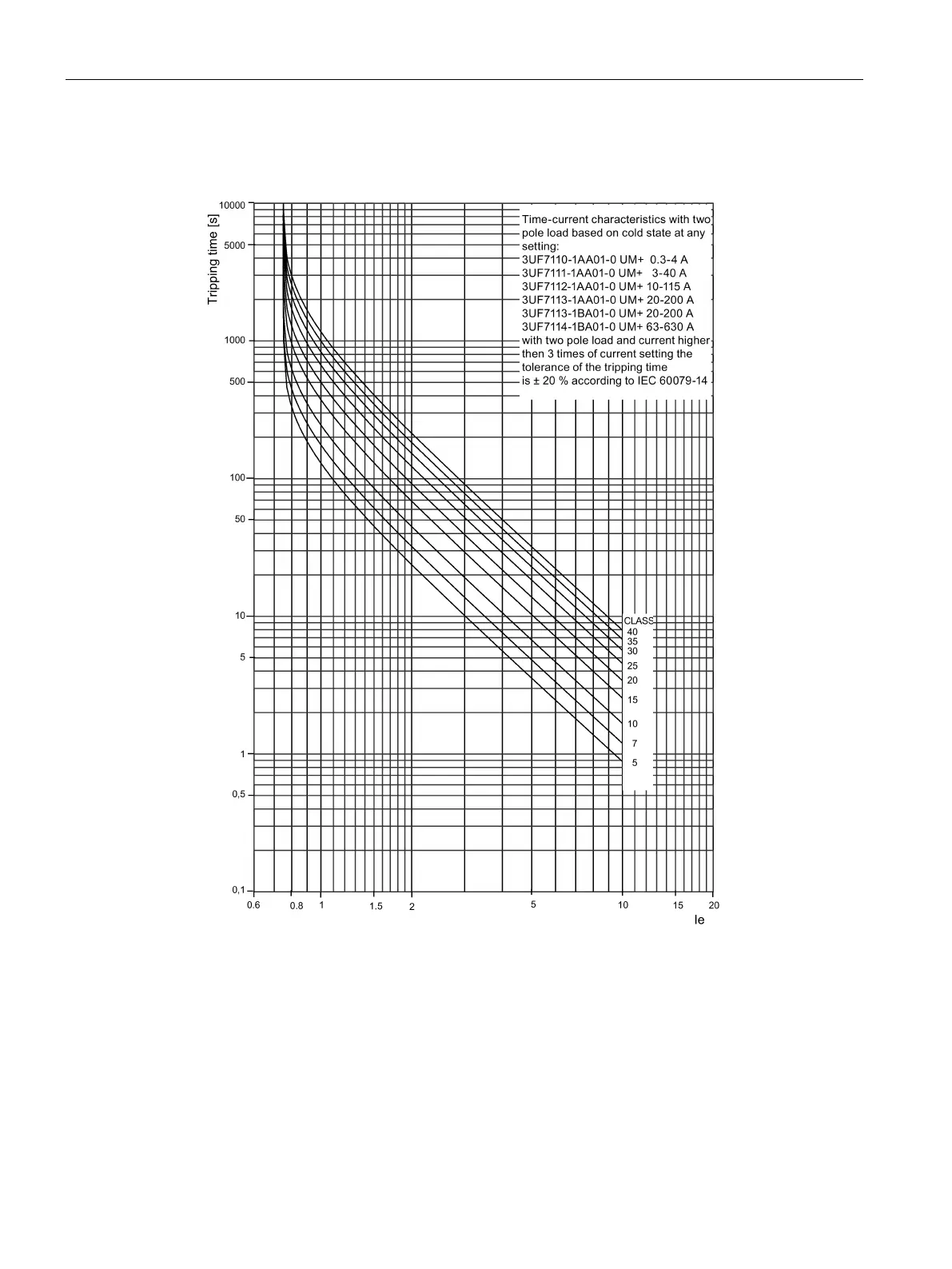

The following figure shows trip classes 5, 7, 10 (d), 15, 20, 25, 30, 35, and 40 for 2-pole
loads:
Figure 4-3 Trip classes for 2-pole loads, 2nd generation current / voltage measuring modules
