Parameters
4.1 Motor protection
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
41
Overload characteristics for current measuring modules and 1st generation current / voltage
measuring modules (e.g. 3UF7110-1AA00-0) and 2nd generation current / voltage
measuring modules in compatibility mode (e.g. 3UF7110-1AA01-0)
The following figure shows trip classes 5, 10 (d), 15, 20, 25, 30, 35 and 40 for 3-pole
balanced loads:

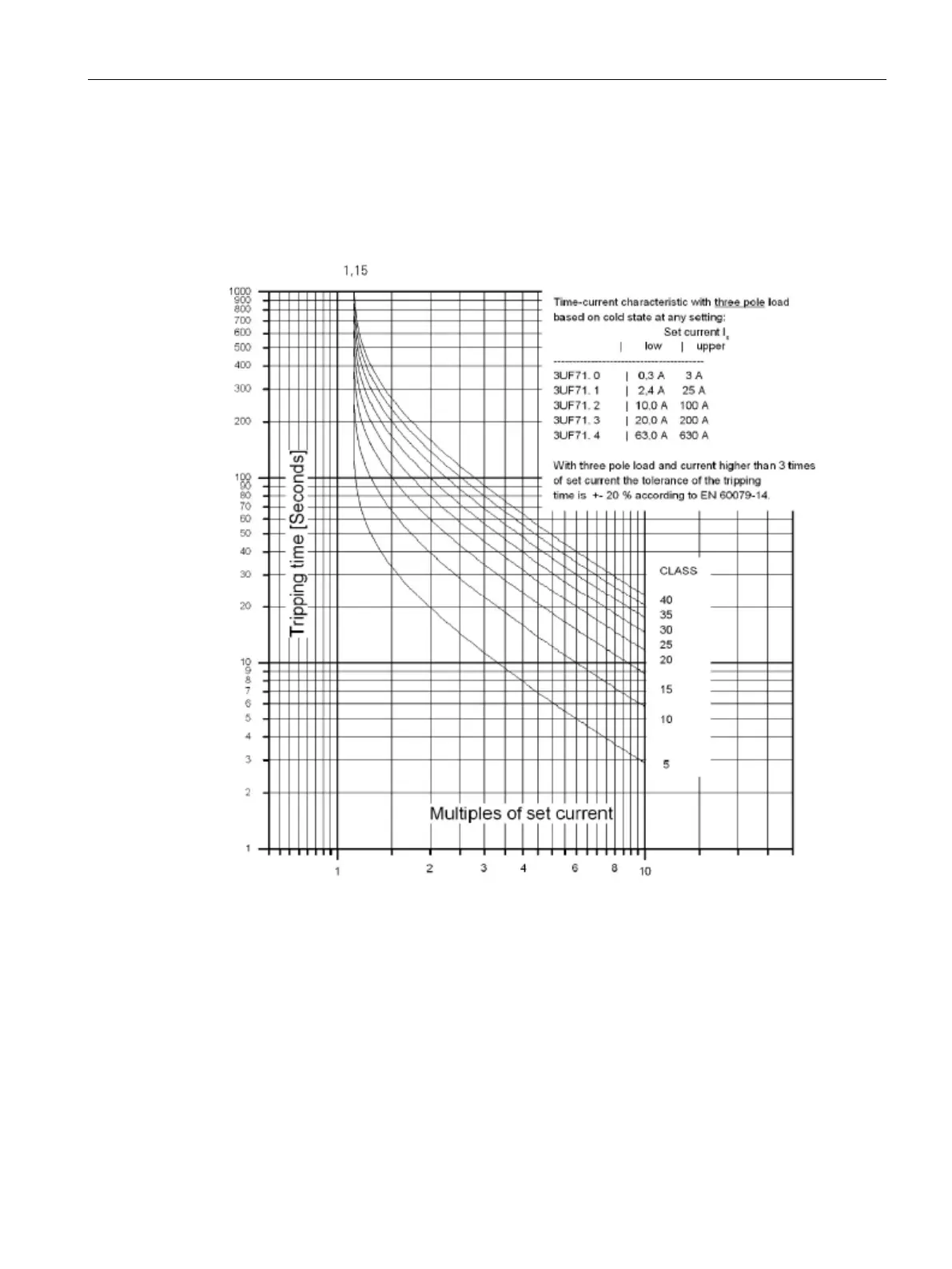

Figure 4-4 Trip classes for 3-pole balanced loads, current measuring modules and 1st generation
current / voltage measuring modules
