Parameters
4.1 Motor protection
SIMOCODE pro - Parameterize
42 Operating Manual, 04/2017, A5E40507630002A/RS-AA/001

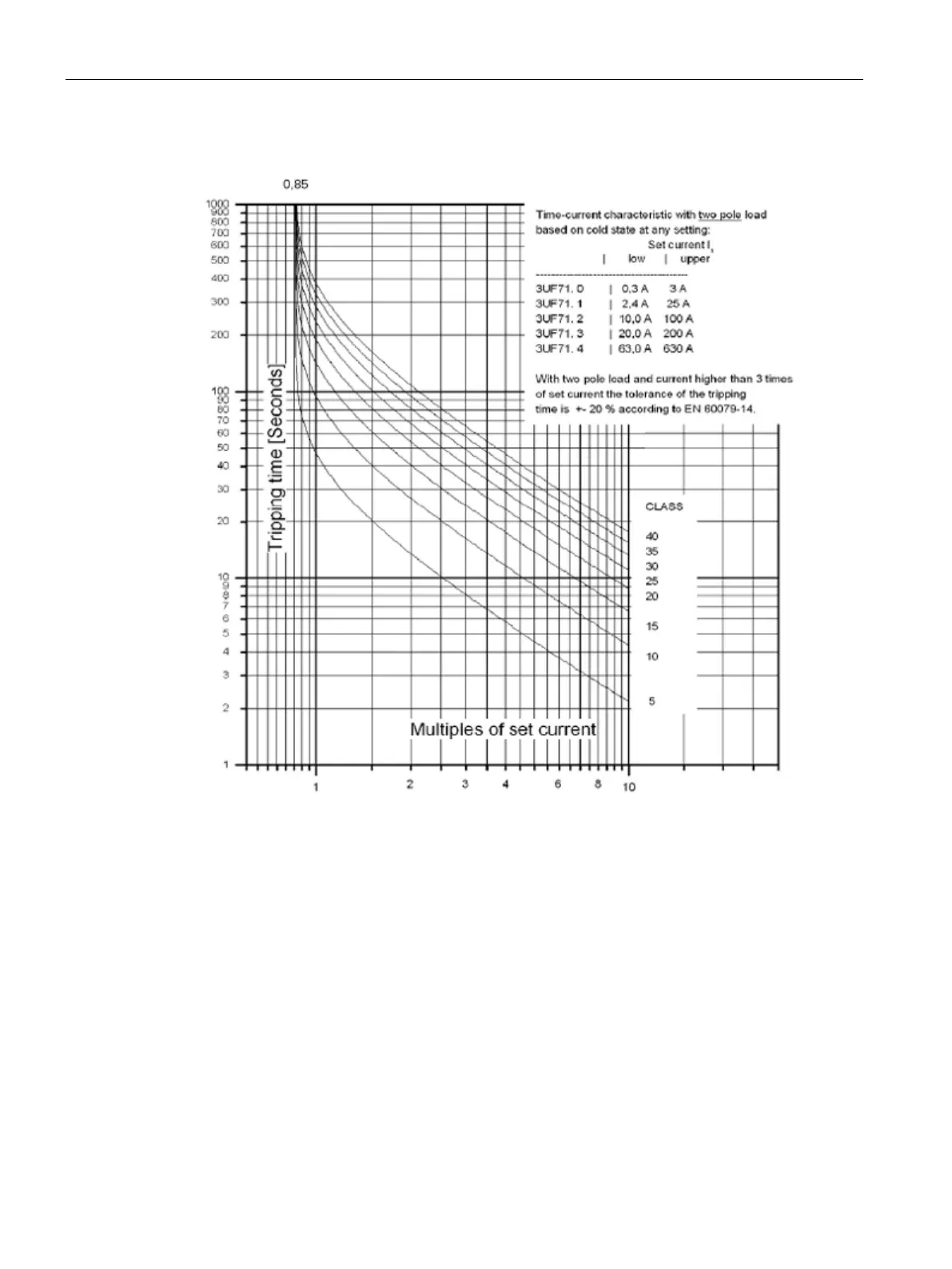

The following figure shows trip classes 5, 10 (d), 15, 20, 25, 30, 35 and 40 for 2-pole loads:
Figure 4-5 Trip classes for 2-pole loads, current measuring modules and 1st generation
current / voltage measuring modules
