Commissioning Manual
01/2017
119

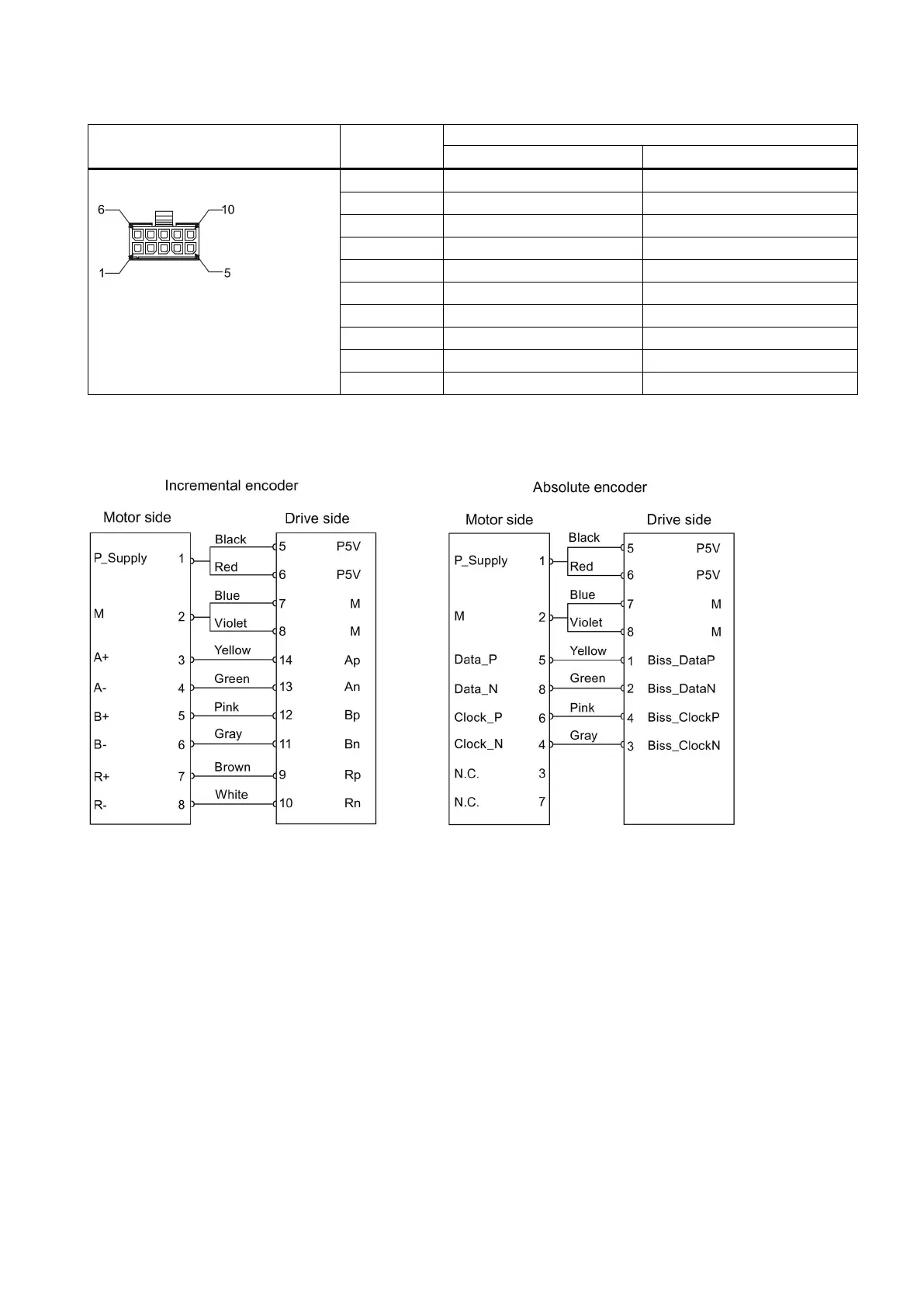

10-pin connector for the incremental encoder, used for the 1PH1 motor:
Illustration
Pin No.
Incremental encoder
Signal
Description
Incremental encoder:
1
P_Supply
Power supply 5 V
2
M
Power supply 0 V
3
A+
Phase A+
4
A-
Phase A-
5
B+
Phase B+
6
B-
Phase B-
7
R+
Phase R+
8 R- Phase R-
9
Shielding
Grounding
10 n.c. Not connected
Wiring
SINAMICS V70 feed servo system
