Commissioning Manual
120 01/2017
SINAMICS V70 spindle servo system

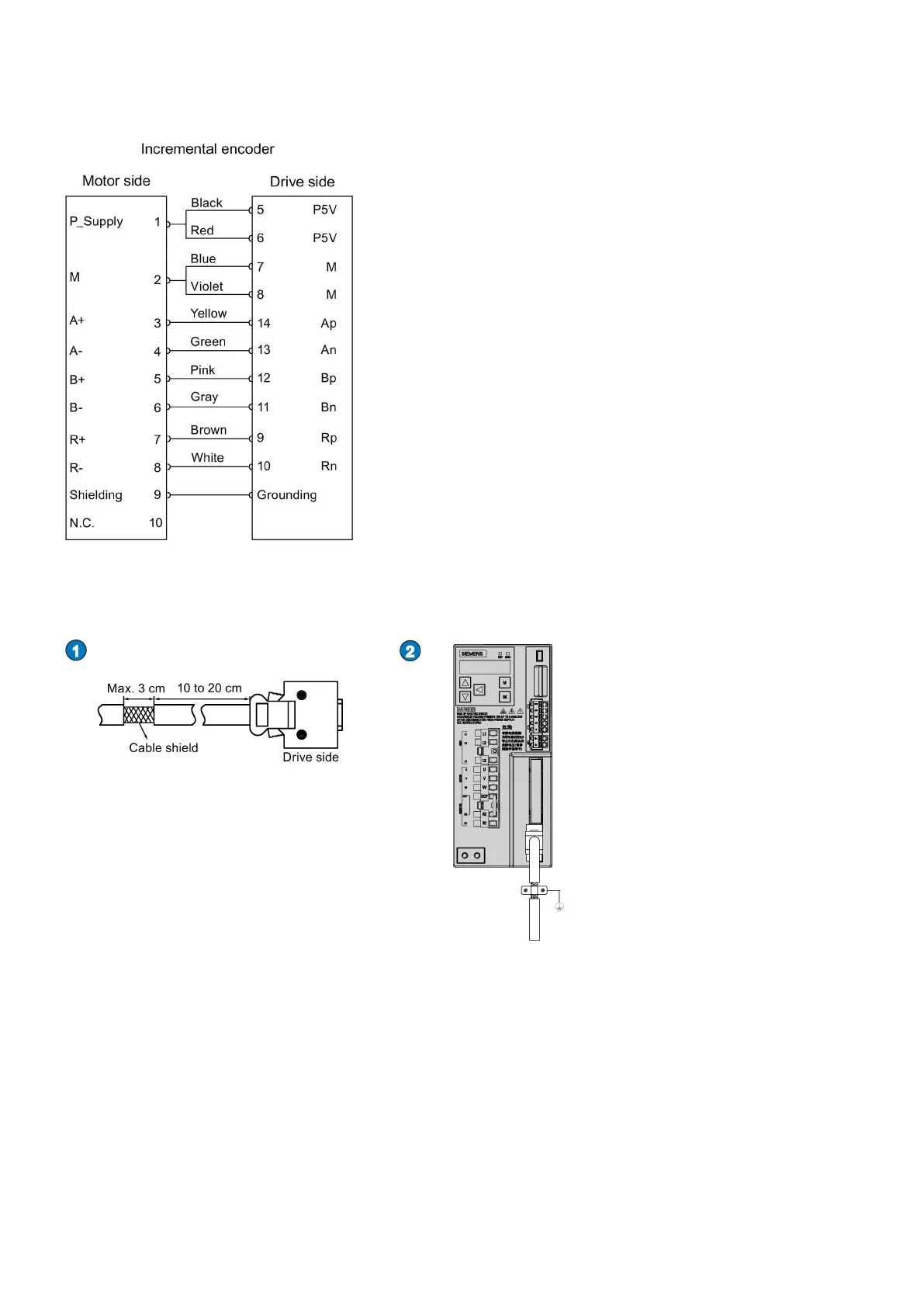

Grounding the shielded encoder cable
To ensure better EMC complicance, you are recommended to strip the encoder cable and connect the cable shield to earth
to enhance the grounding effect:
