Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
202 01/2017

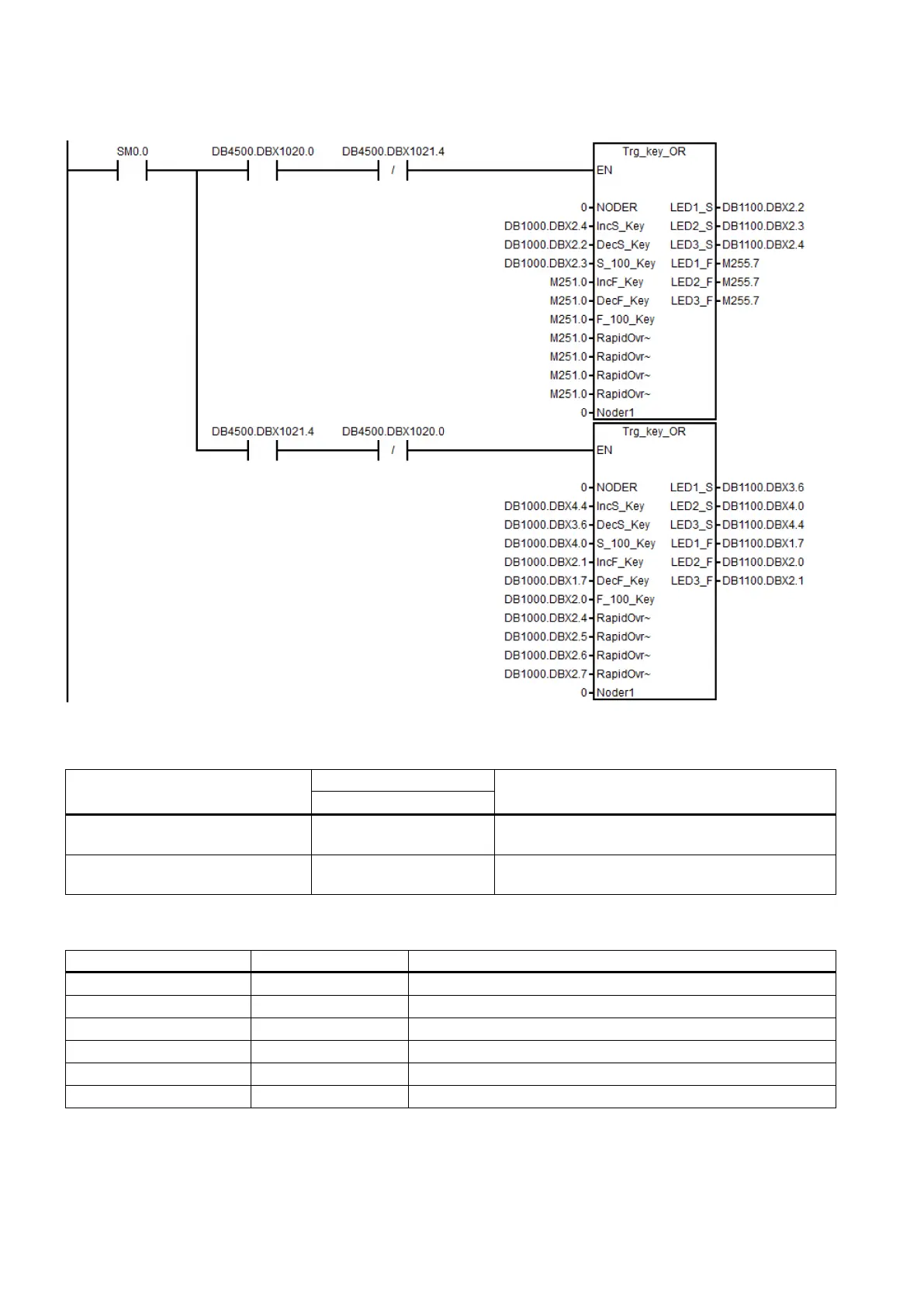

Example for calling subroutine 62
Subroutine 62 for milling application
Set the following PLC machine data for different MCP variants:
MCP variants
PLC machine data setting
Description
14512 [20].0
Vertical MCP with a reserved slot for
the handwheel
1 Spindle override controlled by trigger user keys
Horizontal/vertical MCP with two
override switches
0 Spindle override and feedrate override controlled by
gray coded switch
Local variable definition
Inputs
Name
Type
Description
noder WORD Reserved
IncS_Key
BOOL
Increase key of spindle override
DecS_Key BOOL Decrease key of spindle override
S_100_Key
BOOL
Spindle override 100% key
Noder1
BYTE
Reserved
Noder2
BYTE
Reserved
