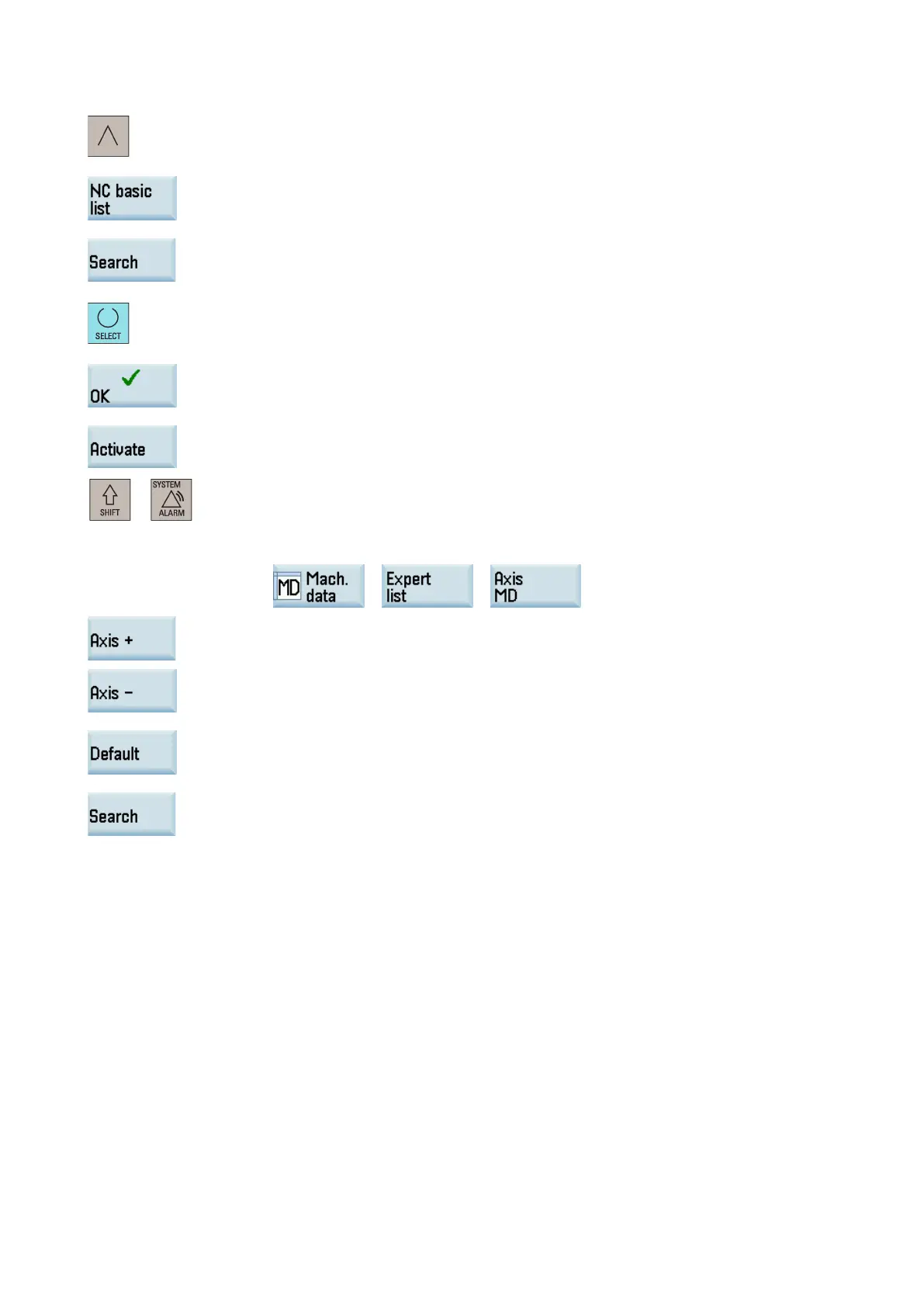

5.
Press this key to return to the higher
-level menu.
6.
Open the basic machine data window.
7.
Use this softkey or the cursor keys to search for "14512 USER_DATA_HEX[20]".
8.
Select "Bit2" and "Bit3" by using this key and the cursor keys.
9.
Press this softkey to confirm your input.
10.
Press this softkey to activate the value changes. Note that the control system restarts to a
c-
cept the new values.
+
11.
Select the system data operating area.
12.
Open the axis machine data window through the following softkey operations:
→ →
13.
Use
these softkeys to switch to the data set for the additional spindle (MSP2).
14.
Default the following machine data for MSP2 with this softkey: 30100[0], 30110[0], 30120[0],
30200, and 30220[0].
15.
Use this softkey or the cursor keys to search for the following machine data and a
ssign the
desired values:
•
If you use an external spindle encoder for the additional spindle:
– 30210[0] = 0
– 30230[0] = 4
– 30240[0] = 2
– 31020[0] = resolution of the spindle encoder
– 31040[0] = 1
•
If no external spindle encoder is used for the additional spindle:
– 30210[0] = 5
– 30230[0] = 1
– 30240[0] = 1
– 31020[0] = resolution of the motor encoder
– 31040[0] = 0
