Commissioning Manual
274 01/2017
Proceed as follows to use your own startup screen:
Prepare the image for the startup
screen in BMP format. To achieve the best display effect,
the recommended image size is 750*450 pixels for PPU161.3 and 600*360 pixels for
PPU160.2/PPU141.2. Name the image "startup.bmp" and save it on a USB memory stick.
Insert the USB stick into the USB interface on the front panel of the PPU.

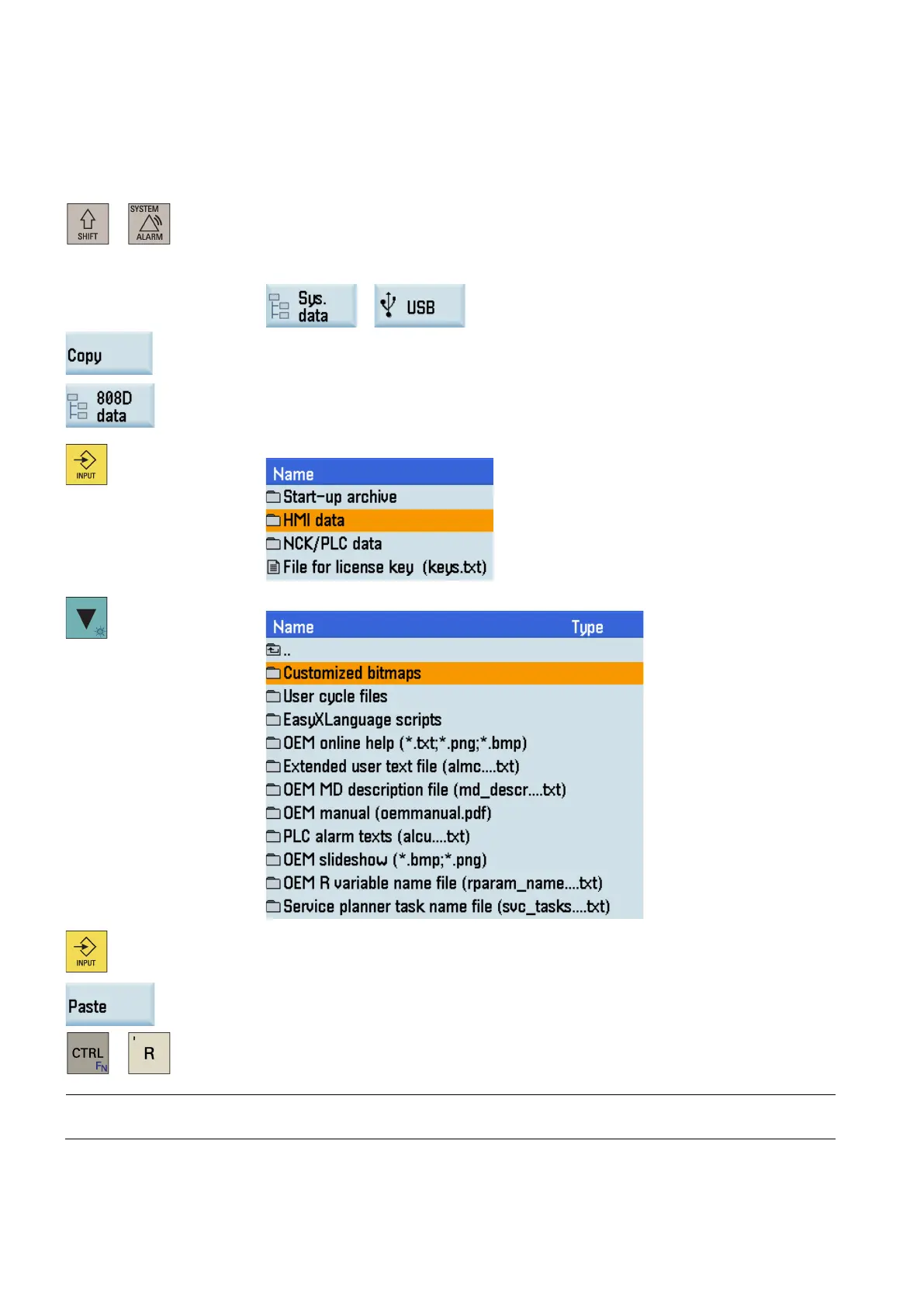

Select the system data operating area.
the startup screen file under the USB directory through the following softkey opera-
Select the file with cursor keys and press this softkey to copy the file.
Press this softkey to open the window of system data.
Select the HMI data folder and press this key to open it.
Move the cursor to the folder highlighted as follows:
Press this key to open this folder.
Press this softkey to replace the default startup screen file with your own file.
Press these two keys to restart the HMI. Then you can see your own startup screen during
the startup of the control system.
Note
To restore the default startup screen, delete
the customized bitmap file (startup.bmp) from the control system.
