Commissioning Manual
01/2017
275

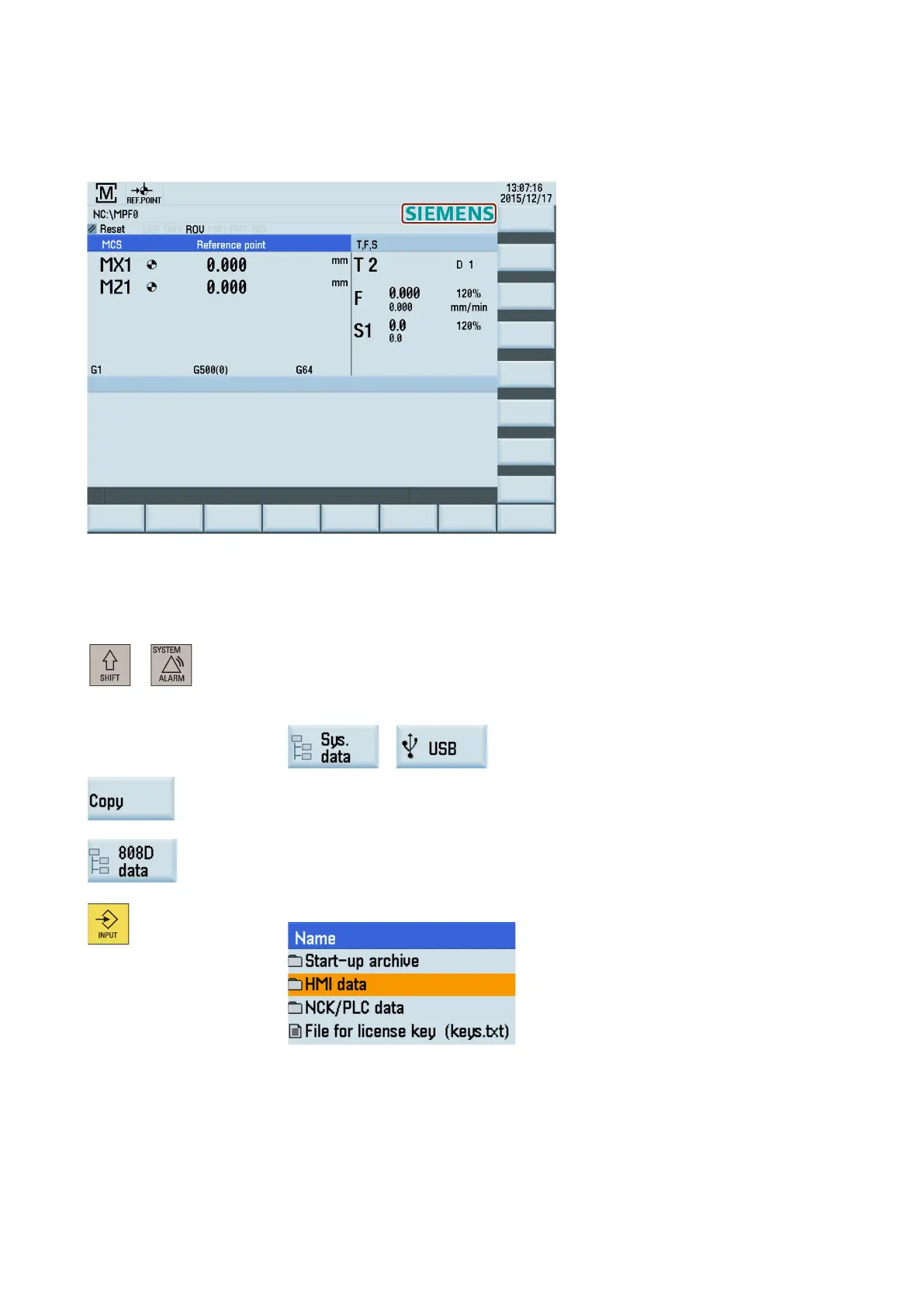

Using the machine manufacturer machine logo
The default machine logo is displayed in the machining operating area as follows. If necessary, you can use your own
machine logo.
Proceed as follows to use your own machine logo:
mage of your own machine logo in BMP format. To achieve the best display
effect, the recommended image size is 153*24 pixels for PPU161.3 and 122*19 pixels for
PPU160.2/PPU141.2. Name the image "mtbico.bmp" and save it on a USB memory stick.
Insert the USB stick into the USB interface on the front panel of the PPU.
Select the system data operatin
g area.
Locate the machine logo file under the USB directory through the following softkey oper
a-
Select the file with cursor keys and press
this softkey to copy the file.
ey to open the window of system data.
HMI data folder and press this key to open it.
