Siemens SINUMERIK 808D ADVANCED Commissioning Manual

Commissioning Manual
276 01/2017
8.

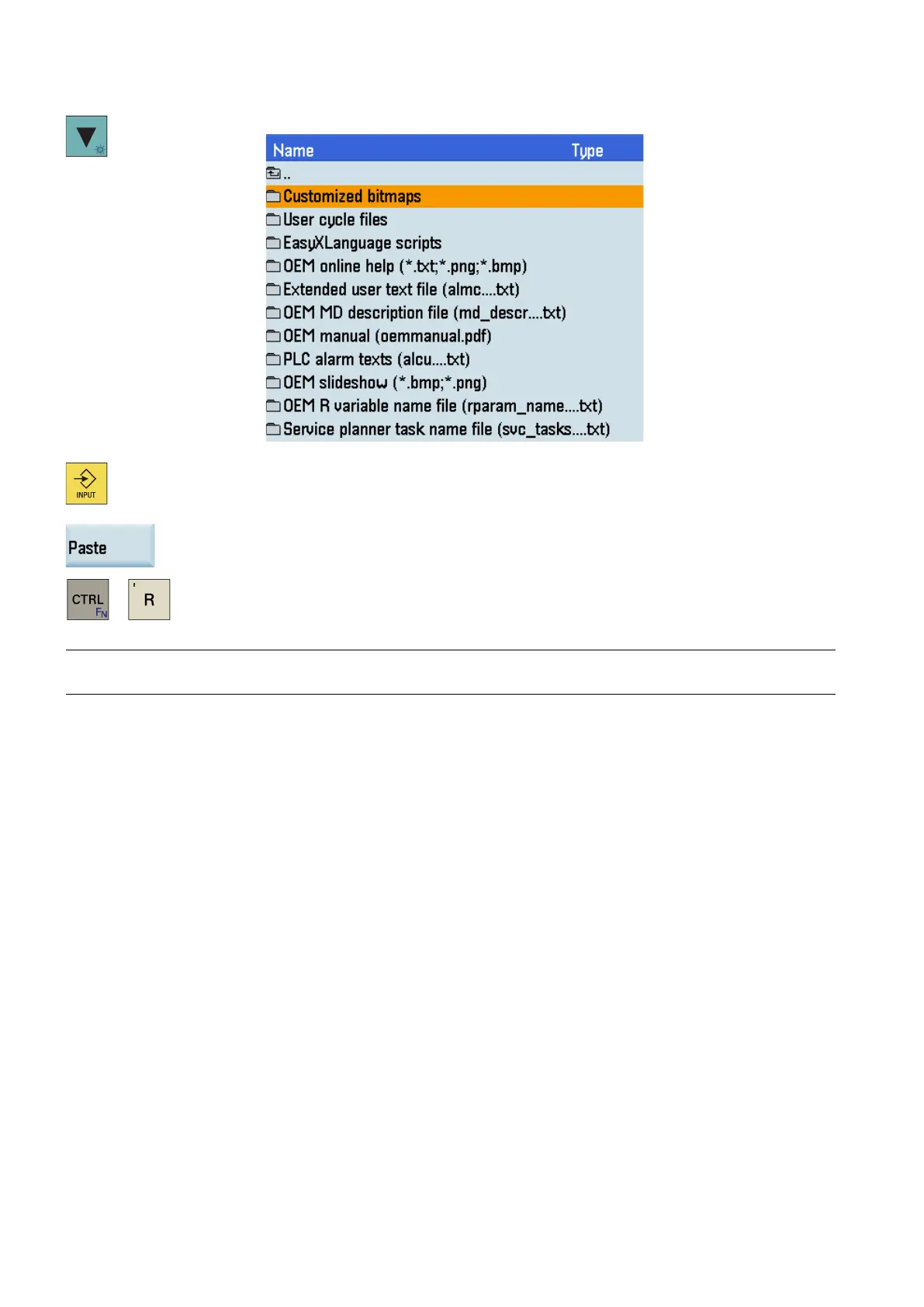

Move the cursor to the folder highlighted as follows
:
9.
Press this key to open this folder.
10.
Press this softkey to replace the default machine logo file with your own machine logo file.
+
11.
Press these two keys to restart the HMI. Then you can see your own machine logo in the
machining operating area
.
Note
To restore the default display of "SIEMENS" logo, delete the customized bitmap file (mtbico.bmp) from the control system.
