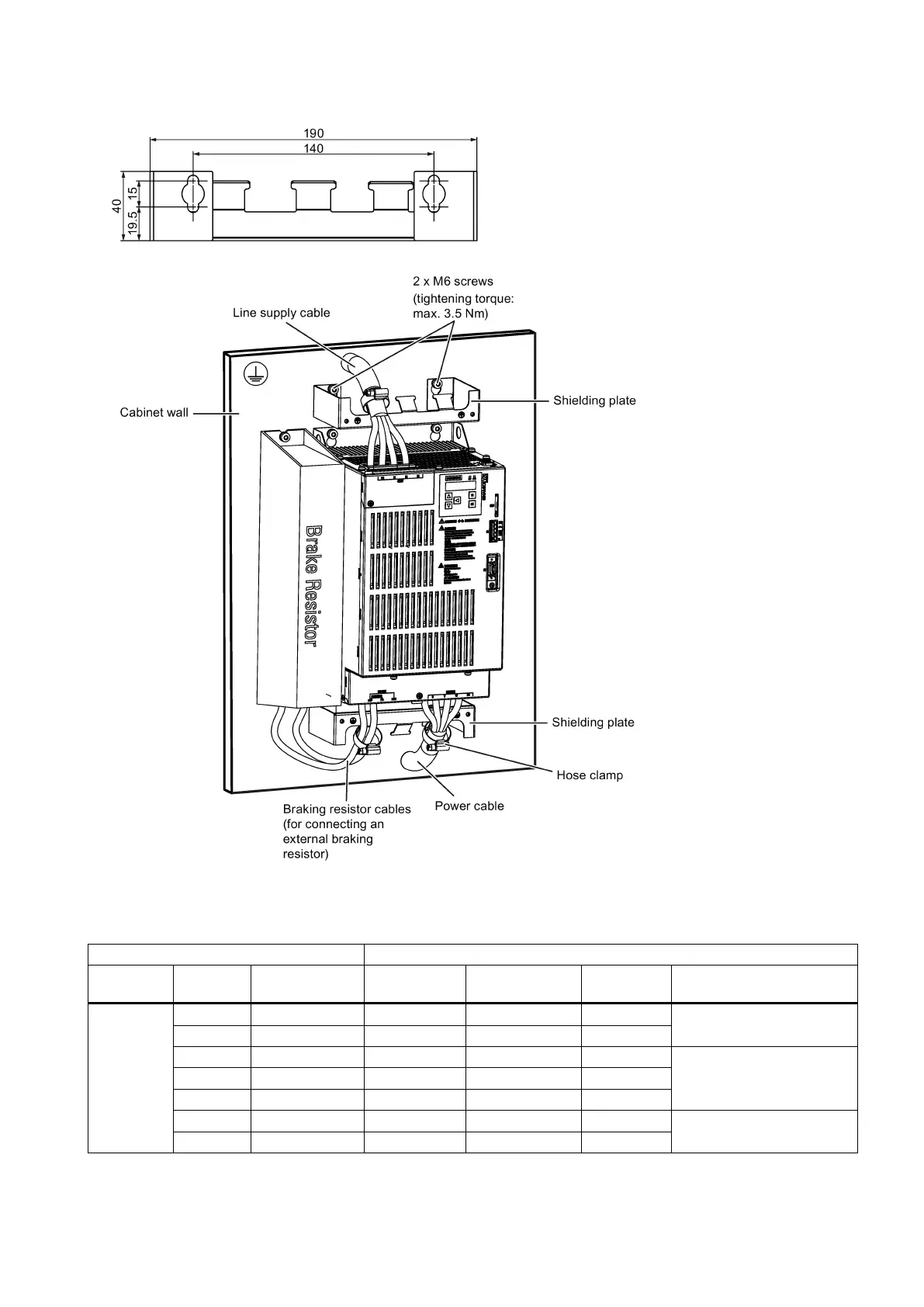

Mounting dimensions (mm)
●
Connecting
Line filters
Siemens recommends you to use a filter to protect the system from high frequency noise.
The table below lists all filters recommended by Siemens:
SINAMICS V70
Recommended filter
Drive vari-
ant
Frame
size
Rated input
current (A)
Rated current
(A)
Wire gauge
(AWG)
Degree of
protection
Article number
Feed drive
FSA
1.5
5
21 to 18
IP20
6SL3203-0BE15-0VA0
FSA
3.8
5
17 to 16
IP20
FSB
5.8
12
15 to 14
IP20
6SL3203-0BE21-2VA0
FSB
6.6
12
14 to 13
IP20
FSB
9.8
12
13 to 12
IP20
FSC
13.8
20
12 to 11
IP20
6SL3203-0BE22-0VA0
FSC
16.5
20
11 to 10
IP20
