Siemens SINUMERIK 808D ADVANCED

Commissioning Manual
398 01/2017
NOTICE
Damage to the motors
For surrounding air temperatures > 55 °C, please contact your local Siemens office.
The standard motors are not suitable for use in corrosive atmospheres, atmospheres with a high salt content, or in outdoor
applications; otherwise, the motors may be damaged.

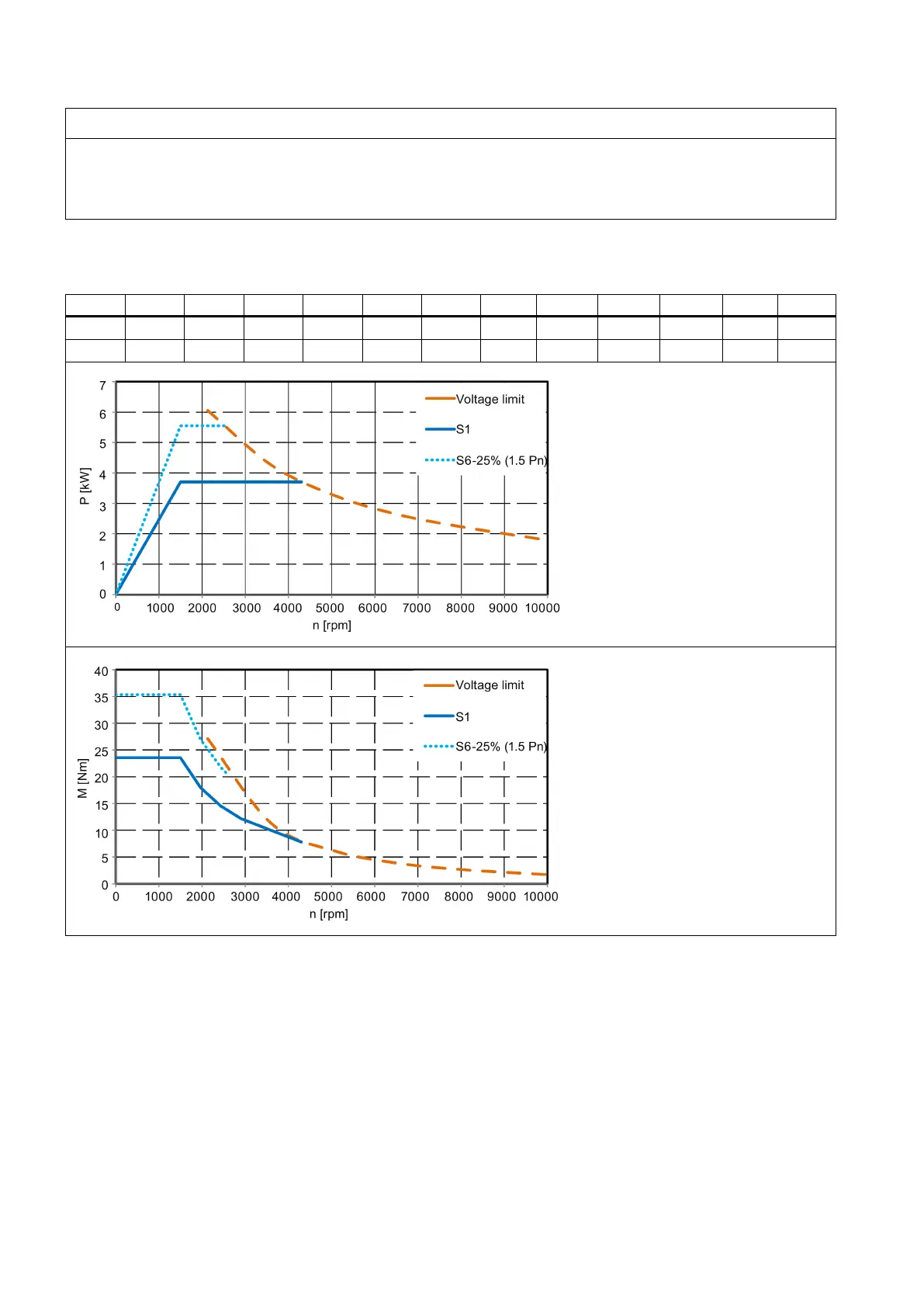

Torque-speed/power-speed characteristics - SH100
1PH1101-1❑F❑:
n
N
P
N
M
N
I
N
U
N
f
N
U
max
n
2
n
max
P
s6-25%
M
s6-25%
I
s6-25%
I
max
[rpm]
[kW]
[Nm]
[A]
[V]
[Hz]
[V]
[rpm]
[rpm]
[kW]
[Nm]
[A]
[A]
1500 3.7 24 10.3 326 53.3 355 4300 10000 5.55 36 15 20.6
