Commissioning Manual
68 01/2017

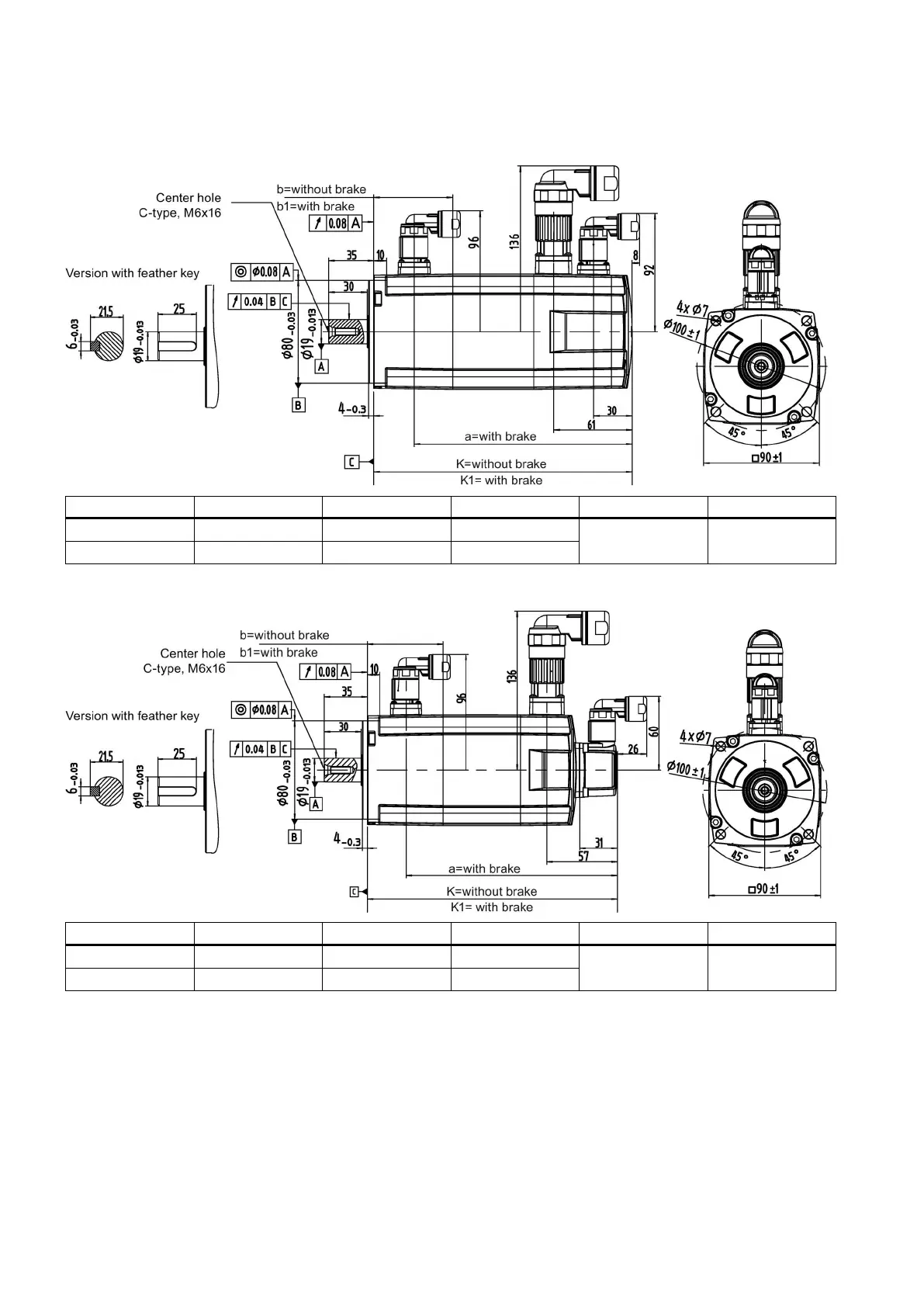

Motor dimensions (unit: mm)
Shaft height 45 mm, with the incremental encoder
Stall torque
k
k1
a
b
b1
1.9 Nm
154.5
201
169.5
15 61.5
3.5 Nm
201.5
248
216.5
Shaft height 45 mm, with the absolute encoder
Stall torque
k
k1
a
b
b1
1.9 Nm
157
203.5
172
15 61.5
3.5 Nm
204
250.5
219
